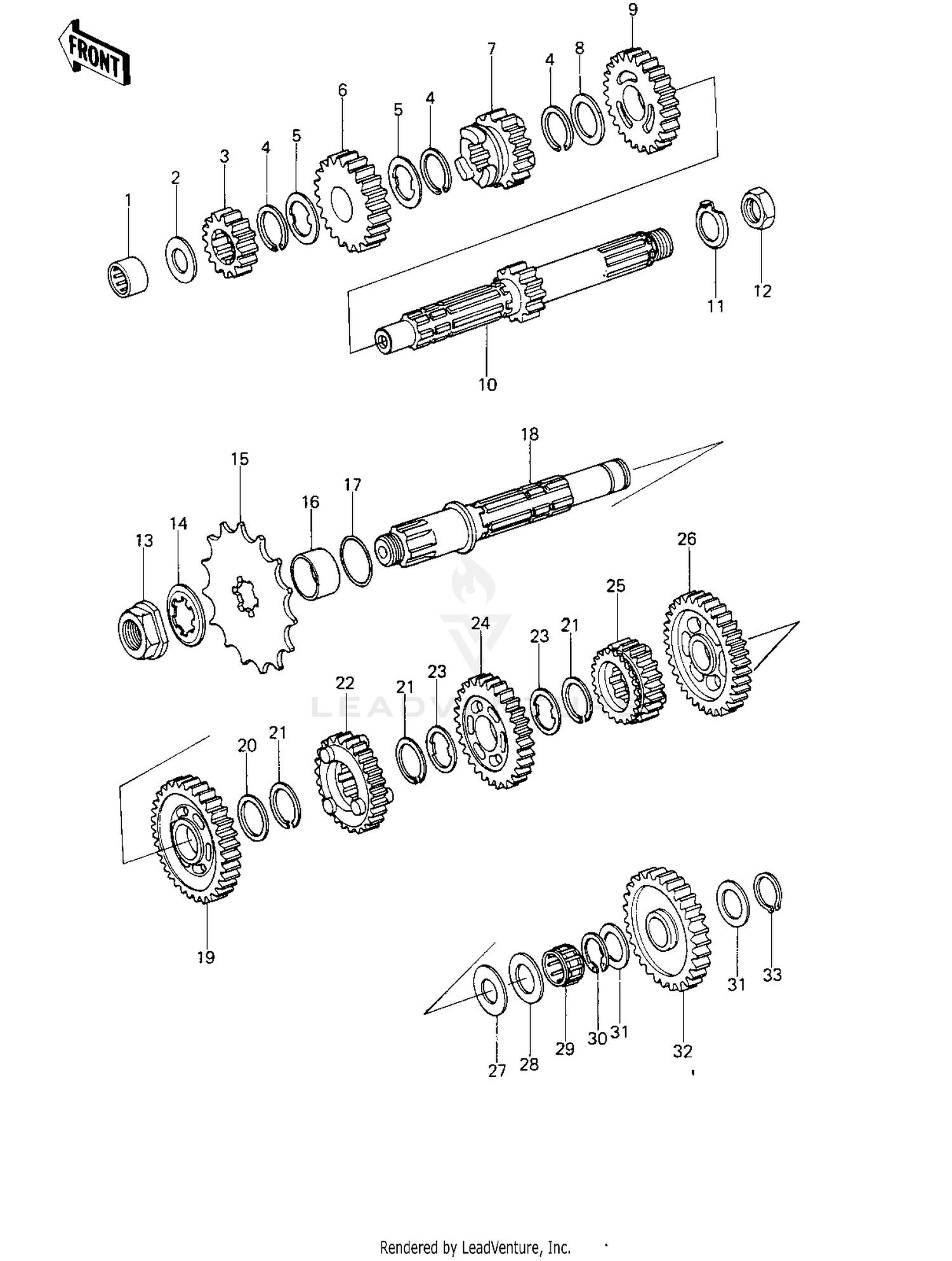

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NEEDLE BEARING,HK1516
92046-057
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER,THRUST,15MM
92022-279
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
2ND GEAR,DRIVE SHAFT
13130-046
|
$51.57 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING-SNAP,18MM
92033-029
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,LOCK
92024-059
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
4TH GEAR,DRIVE SHAFT
13134-031
|
$57.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
3RD GEAR,DRIVE SHAFT
13132-046
|
$89.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER,20.5X25.5X0.5
92022-252
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
TOP GEAR,DRIVE SHAFT
13136-062
|
$62.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT,DRIVE
13127-057
|
$115.12 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,LOCK,16M/M
92024-076
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT,LOCK,16MM
92015-072
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT,18MM
92015-075
|
$17.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,LOCK
92024-065
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
ENGINE SPROCKET,14T
13144-068
|
$53.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
ENGINE SPROCKET,13T
13144-1017
|
$38.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR,ENGINE SPROKET
92027-1053
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING-O
92055-035
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT,OUTPUT
13128-043
|
$114.77 | ||
|
Available to order. Add to View Price |
|||
|
#19
2ND GEAR,OUTPUT SHAFT
13131-054
|
$70.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,22.3X27X0.5
92022-198
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING-SNAP,20X25.5X1.2
92033-025
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
4TH GEAR,OUTPUT SHAFT
13135-036
|
$61.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER-LOCK
92024-039
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
3RD GEAR,OUTPUT SHAFT
13133-043
|
$84.48 | ||
|
Available to order. Add to View Price |
|||
|
#25
TOP GEAR,OUTPUT SHAFT
13137-041
|
$55.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
LOW GEAR,OUTPUT SHAFT
13129-060
|
$83.95 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,PLAIN
92022-280
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,PLAIN
92022-281
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING-NEEDLE,K17X23X13.8
92046-1184
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
RING-SNAP
92033-032
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER-THRUST
92022-197
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
IDLE GEAR 28T
13073-012
|
$68.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
