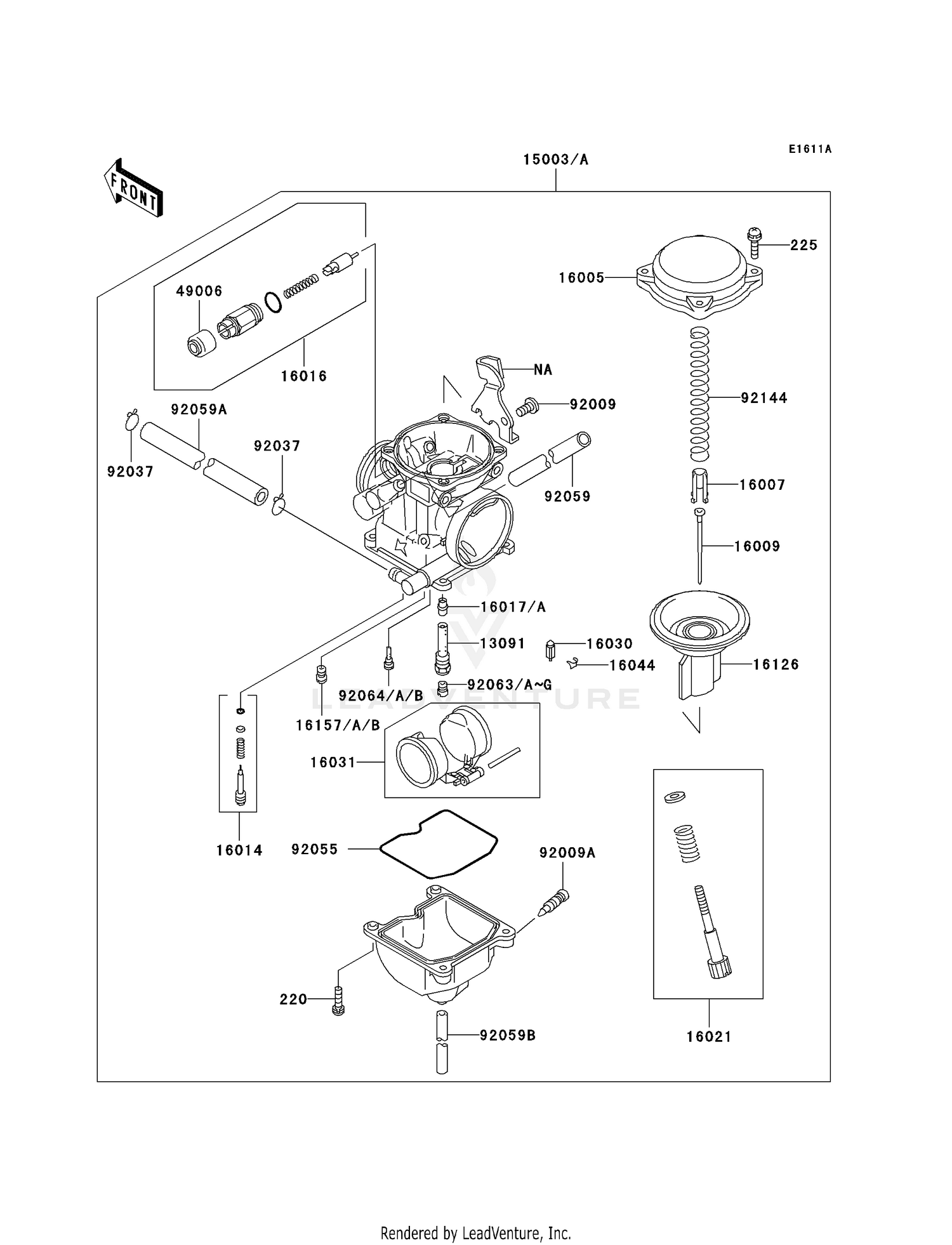

Carburetor (ksf250-a17/a18) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,NEEDLE JET
13091-1259
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1747
|
$588.54 | ||
|
Available to order. Add to View Price |
|||
|
#15003A
CARBURETOR-ASSY
15003-1748
|
$588.54 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER,MIXING
16005-1057
|
$43.48 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING,VALVE
16007-1134
|
$40.42 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N54C
16009-1333
|
$34.45 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1080
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1101
|
$56.24 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1319
|
$49.49 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE,#6
16017-1393
|
$48.66 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1201
|
$45.11 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1077
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1180
|
$201.09 | ||
|
Available to order. Add to View Price |
|||
|
#16157
JET-STARTER,#55
16157-1056
|
$17.12 | ||
|
Available to order. Add to View Price |
|||
|
#16157A
JET-STARTER,#58
16157-1057
|
$17.12 | ||
|
Available to order. Add to View Price |
|||
|
#16157B
JET-STARTER,#60
16157-1058
|
$15.48 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,STARTER PLUNGER
49006-1165
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X10
92009-1365
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1531
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-1222
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,6.5X9.5X500
92059-1465
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6.5X11.5X360
92059-1751
|
$61.95 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,3.5X6.5X420
92059-1752
Superseded by 92059-1748
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#140
92063-1013
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#135
92063-1014
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#138
92063-1015
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
MAIN JET,#142
92063-1016
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#225
SCREW-PAN-WSP-CROS
225C0418
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
MAIN JET,#145
92063-1017
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,2ND,#128
92063-1074
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,#130
92063-1075
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063G
JET-MAIN,#132
92063-1076
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#38
92064-1050
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#35
92064-1101
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#32
92064-1117
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,VACUUM VALVE
92144-1066
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
