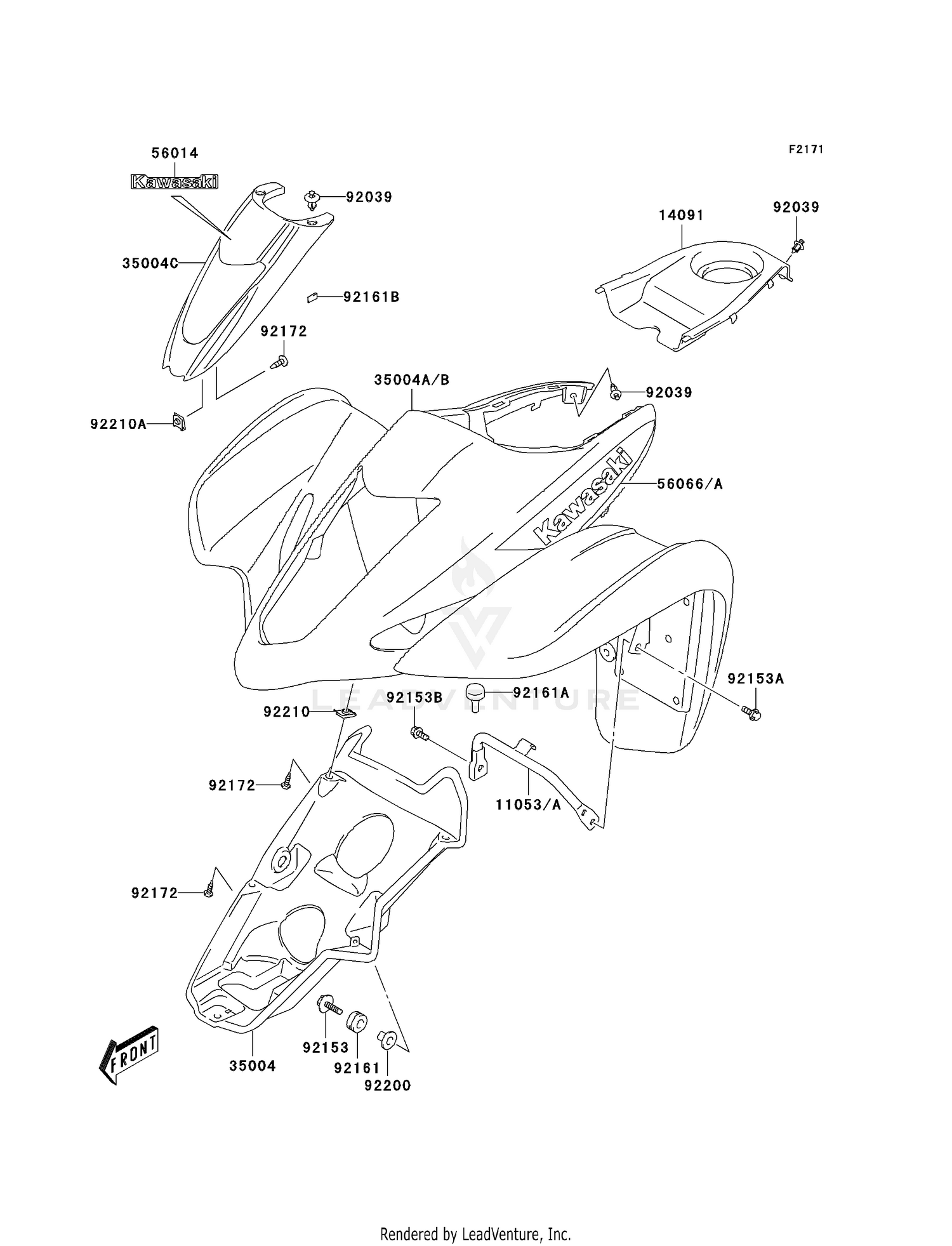

Front Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11053
BRACKET,FRONT FENDER
11053-S011
|
$36.23 | ||
|
Available to order. Add to View Price |
|||
|
#11053A
BRACKET,FRONT FENDER
11053-S012
|
$36.23 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,BLACK
14091-S182-503
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#35004
FENDER-FRONT
35004-S020
|
$34.09 | ||
|
Available to order. Add to View Price |
|||
|
#35004A
FENDER-FRONT,B.ORANGE
35004-S021-268
|
$270.21 | ||
|
Available to order. Add to View Price |
|||
|
#35004B
FENDER-FRONT,L.GREEN
35004-S021-908
|
$270.21 | ||
|
Available to order. Add to View Price |
|||
|
#35004C
FENDER-FRONT,COVER,BL
35004-S022-503
|
$44.81 | ||
|
Available to order. Add to View Price |
|||
|
#56014
EMBLEM,KAWASAKI,WHITE
56014-S024-559
|
$13.66 | ||
|
Available to order. Add to View Price |
|||
|
#56066
PATTERN,FR FENDER,RH,
56066-S007-920
|
$28.92 | ||
|
Available to order. Add to View Price |
|||
|
#56066A
PATTERN,FR FENDER,LH,
56066-S009-920
|
$34.64 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-S010
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-S067
Superseded by 92153-S511
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT
92153-S439
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#92153B
BOLT
92153-S473
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-S030
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,FRONT FENDER B
92161-S091
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER
92161-S219
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-S031
Superseded by 92172-S310
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,FRONT FENDER
92200-S148
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-S012
Superseded by 92210-S201
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-S143
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
