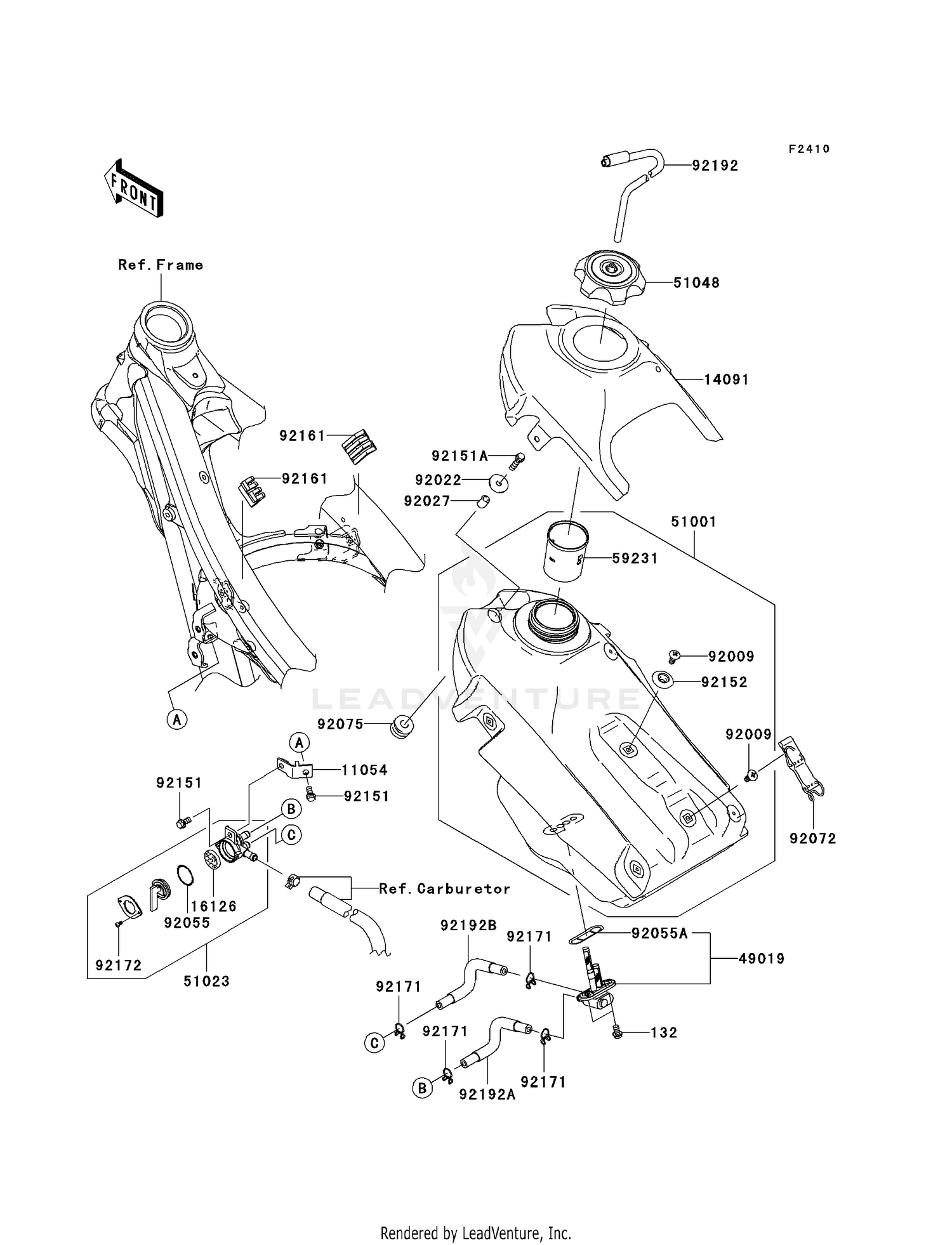

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X12
132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#11054
BRACKET,FUEL TAP
11054-1092
|
$9.94 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,FIEL TANK,F.BLA
14091-0843-6Z
|
$44.56 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE
16126-0027
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#49019
FILTER-FUEL
49019-0005
|
$22.45 | ||
|
Available to order. Add to View Price |
|||
|
#51001
TANK-COMP-FUEL,F.BLAC
51001-0153-6Z
|
$690.98 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-0026
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#51048
CAP-ASSY-TANK,FUEL
51048-0009
|
$50.53 | ||
|
Available to order. Add to View Price |
|||
|
#59231
FILLER
59231-0019
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6MM
92009-1971
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X24X2
92022-1690
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X14
92027-1966
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0111
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,FUEL TAP PACKI
92055-1348
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,FUEL TANK
92072-0045
|
$14.04 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1787
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT-FLANGED-SMALL,6X12
92151-1133
Superseded by 132BC0612
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,FLANGED-SMALL,6X25
92151-1930
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-1346
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,FUEL TANK,SIDE
92161-0254
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0149
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,3X6
92172-0259
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE
92192-0161
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,ON
92192-0409
|
$29.57 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE,RESERVE
92192-0503
|
$29.57 | ||
|
Available to order. Add to View Price |
|||
