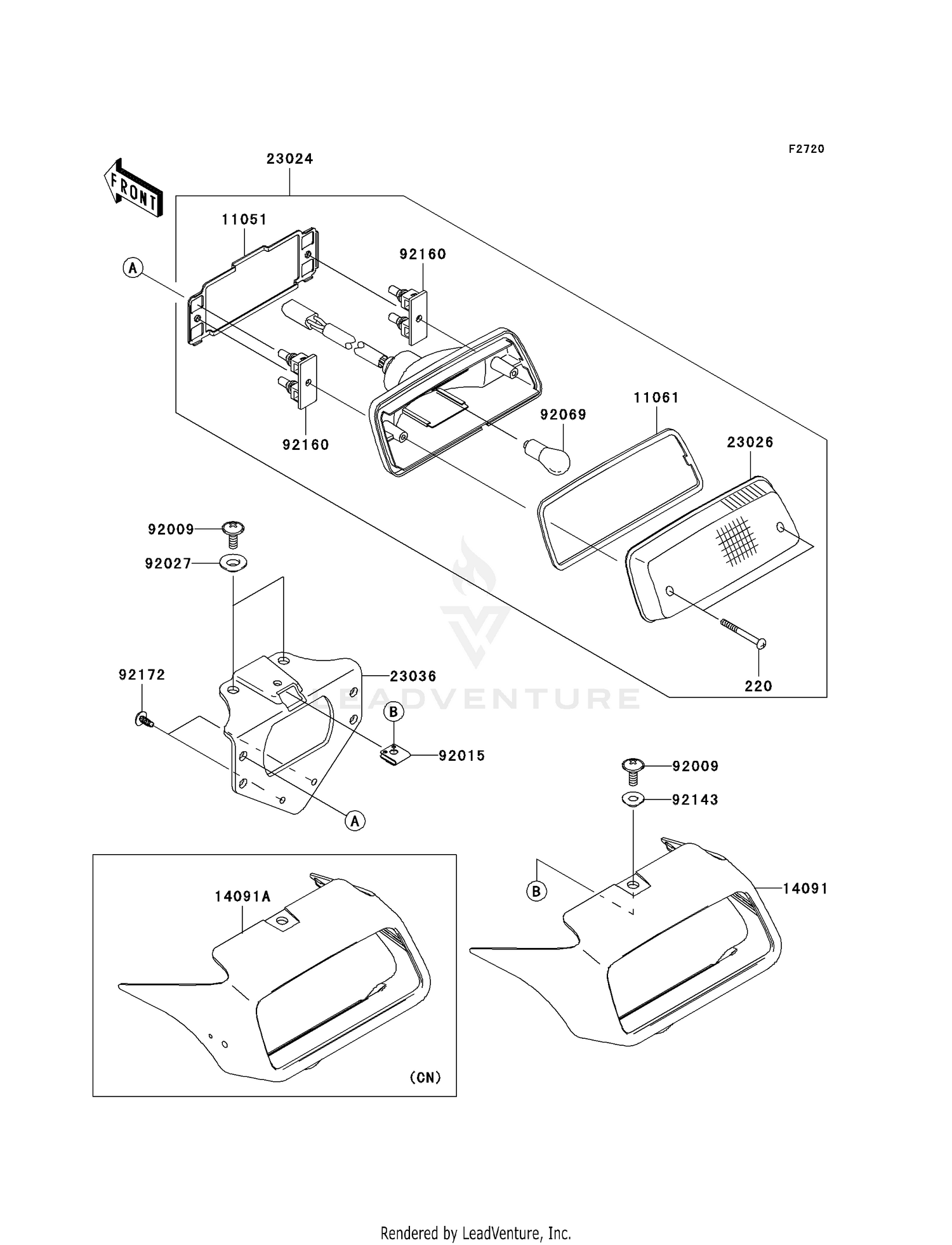

Taillight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,4X40
220B0440
Superseded by 220AA0440
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#11051
BRACKET,TAIL LAMP
11051-1870
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,TAIL LAMP LENS
11061-0055
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,TAIL LAMP,F.BLA
14091-0095-6Z
|
$18.72 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,TAIL LAMP,F.BLA
14091-0113-6Z
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#23024
LAMP-ASSY-TAIL
23024-1130
Superseded by 23024-0302
|
$139.60 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,TAIL LAMP
23026-1230
|
$24.16 | ||
|
Available to order. Add to View Price |
|||
|
#23036
BRACKET-TAIL LAMP
23036-0001
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CLAMP,6MM
92015-1678
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=4.7
92027-1964
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 21/5W
92069-063
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1087
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,TAIL LAMP
92160-1053
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,TAPPING,5X10
92172-1061
Superseded by 92172-0262
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
