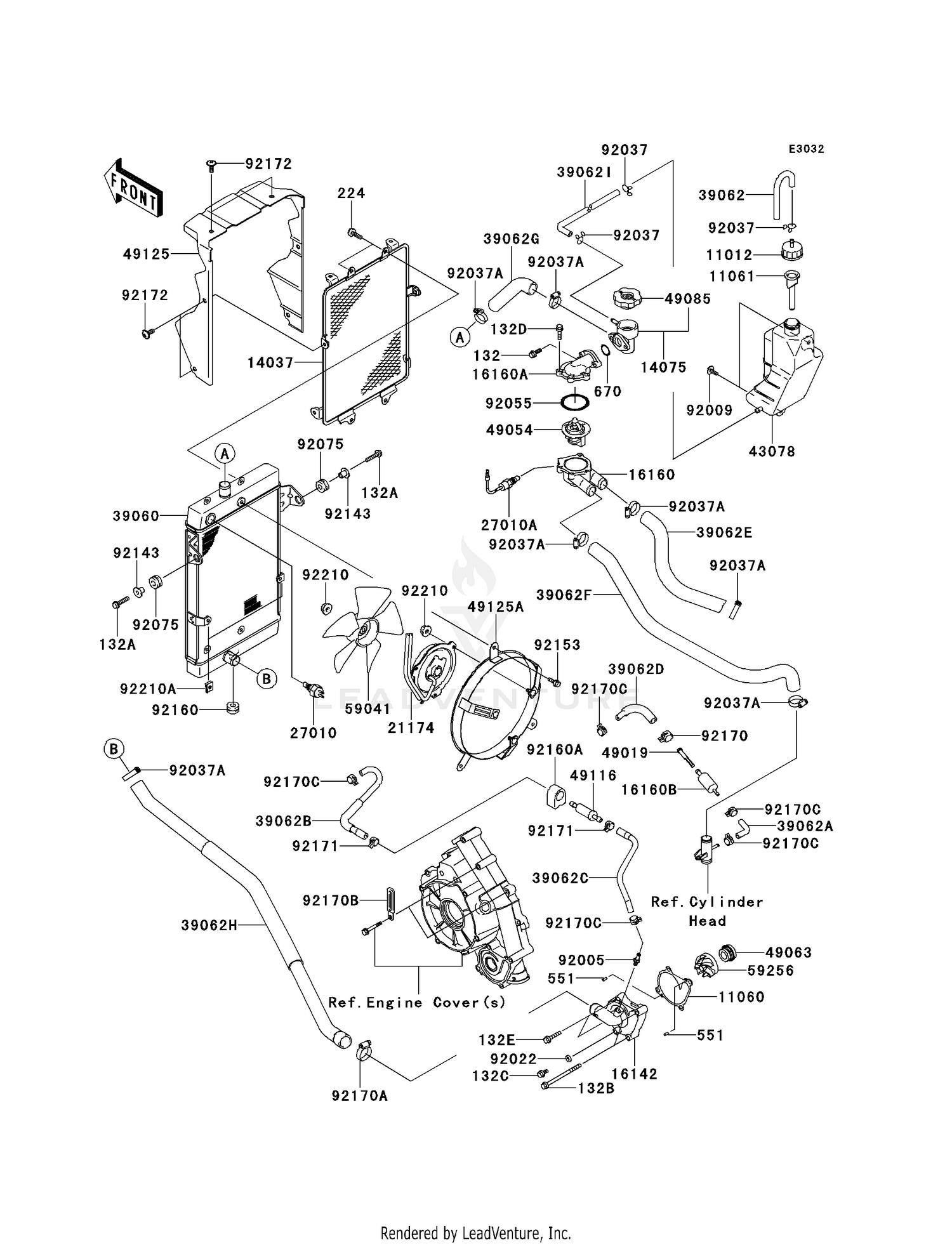

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1854
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,WATER PUMP
11060-1964
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET
11061-0043
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-0017
|
$78.16 | ||
|
Available to order. Add to View Price |
|||
|
#14075
CAP-ASSY,PRESSURE
14075-1115
|
$154.35 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP,WATER
16142-0002
Superseded by 16142-0727
|
$80.60 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,THERMOSTAT,LWR
16160-1112
|
$71.33 | ||
|
Unavailable |
|||
|
#16160A
BODY,THERMOSTAT,UPP
16160-1113
|
$61.42 | ||
|
Available to order. Add to View Price |
|||
|
#16160B
BODY
16160-1359
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#21174
MOTOR-ELECTRIC
21174-0001
|
$457.22 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,FAN
27010-1202
|
$94.98 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,SENSOR WATER
27010-1346
|
$115.06 | ||
|
Available to order. Add to View Price |
|||
|
#39060
RADIATOR
39060-0006
|
$677.43 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,BREATHER
39062-0002
|
$6.32 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,HEAD-FIL
39062-1816
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,CARB-VAL
39062-1817
Superseded by 39062-0592
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,VALVE-WA
39062-1818
Superseded by 39062-0593
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,FILTER-C
39062-1858
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING,FR HEAD-
39062-1920
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
|
#39062F
HOSE-COOLING,RR HEAD-
39062-1921
|
$27.75 | ||
|
Available to order. Add to View Price |
|||
|
#39062G
HOSE-COOLING,THERMO-R
39062-1922
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#39062H
HOSE-COOLING,RAD-WATE
39062-1923
|
$37.93 | ||
|
Available to order. Add to View Price |
|||
|
#39062I
HOSE-COOLING,RESERVOI
39062-1924
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR,TANK
43078-0004
|
$53.35 | ||
|
Available to order. Add to View Price |
|||
|
#49019
FILTER-WATER,STRAINER
49019-1068
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1055
|
$52.44 | ||
|
Available to order. Add to View Price |
|||
|
#49063
SEAL-MECHANICAL
49063-1055
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1067
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-1190
|
$68.01 | ||
|
Available to order. Add to View Price |
|||
|
#49125
SHROUD
49125-0003
|
$17.75 | ||
|
Available to order. Add to View Price |
|||
|
#49125A
SHROUD
49125-0007
|
$29.14 | ||
|
Available to order. Add to View Price |
|||
|
#59041
FAN
59041-0001
|
$28.95 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-1069
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1337
|
$22.48 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,COOLING HOSE
92037-1589
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,44.7X2.4
92055-1279
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X16
132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT,6X25
132BA0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL
132BB0690
|
$6.61 | ||
|
Available to order. Add to View Price |
|||
|
#132C
BOLT-FLANGED-SMALL,6X12
132BD0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#132D
BOLT-FLANGED-SMALL,6X20
132BD0620
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#132E
BOLT-FLANGED-SMALL,6X30
132BD0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#224
SCREW-PAN-WP-CROS
224AB0612
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,4X8
551A0408
|
$0.77 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,20MM
670B2020
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1353
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-0456
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER,VALVE
92160-1451
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1491
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1497
Superseded by 92171-0261
|
$16.26 | ||
|
Available to order. Add to View Price |
|||
|
#92170B
CLAMP
92170-1514
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92170C
CLAMP
92170-2042
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0515
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X10
92172-0005
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0085
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT
92210-0086
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
