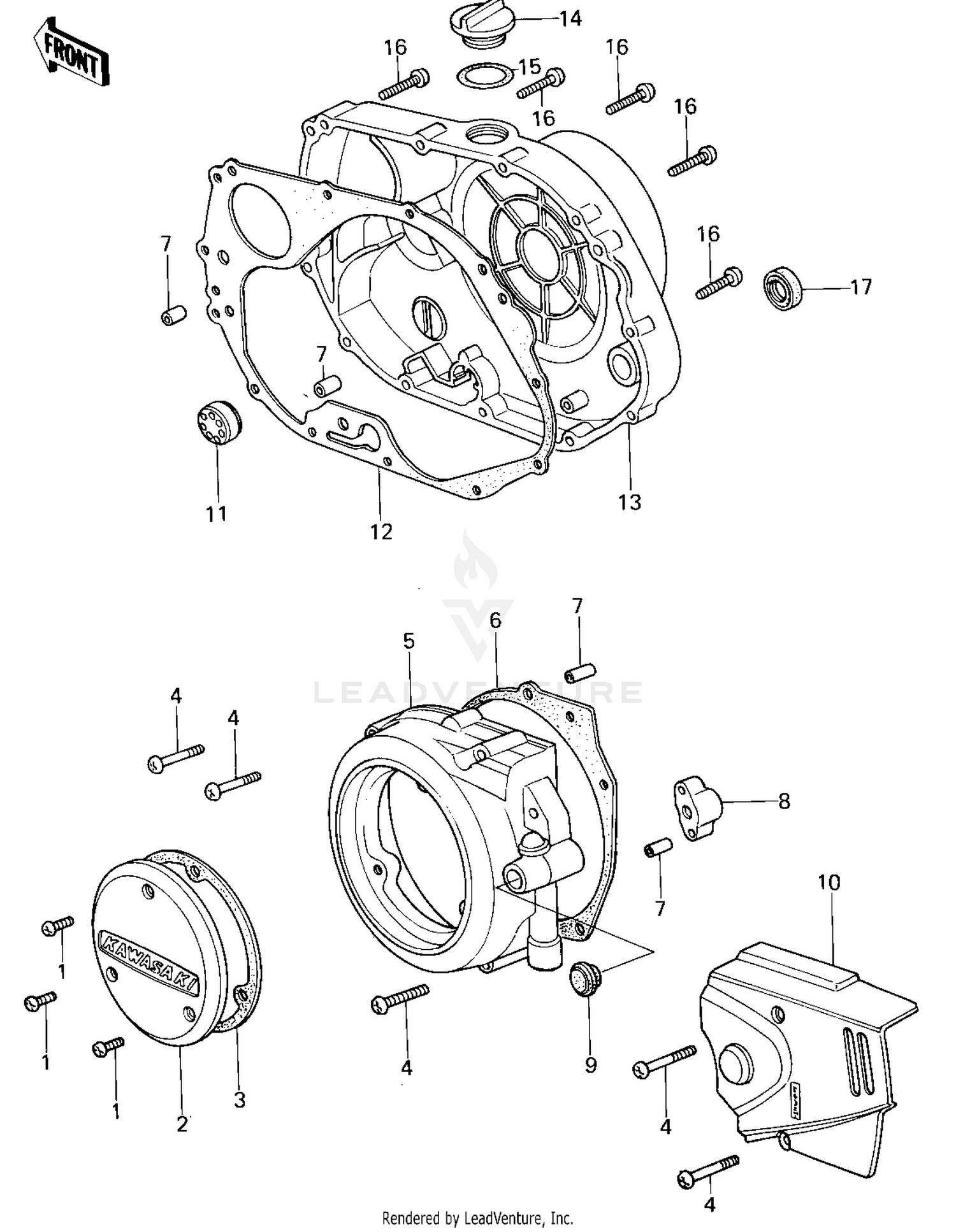

1978 Kawasaki KL250 ENGINE COVERS ('78-'79 KL250-A1/A1A/A2) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,GENERATOR
14025-1108
|
$41.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET,DYNAMO COVER
11009-1010
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN HEAD,6X40
220B0640
Superseded by 220AA0640
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,L.H,ENGINE
14031-1003-2H
|
$153.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,GENERATOR COVR
11009-1009
Superseded by 11060-1514
|
$27.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN,DOWEL,6.3X8X14
92042-007
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR,PUSH ROD
92027-1467
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
92066-065
|
$5.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER,CHAIN
14026-1003-2H
|
$94.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
GAUGE,OIL LEVEL
52015-004
|
$44.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET,CLUTCH COVER
11009-1235
Superseded by 11060-1583
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,R.H ENGINE
14032-5003
|
$141.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP-OIL FILLER
16115-013
Superseded by 16115-1062
|
$18.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
RING-O,31.5X2.6
92055-049
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-PAN-CROS,6X30
220B0630
Superseded by 220AA0630
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
92050-078
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
