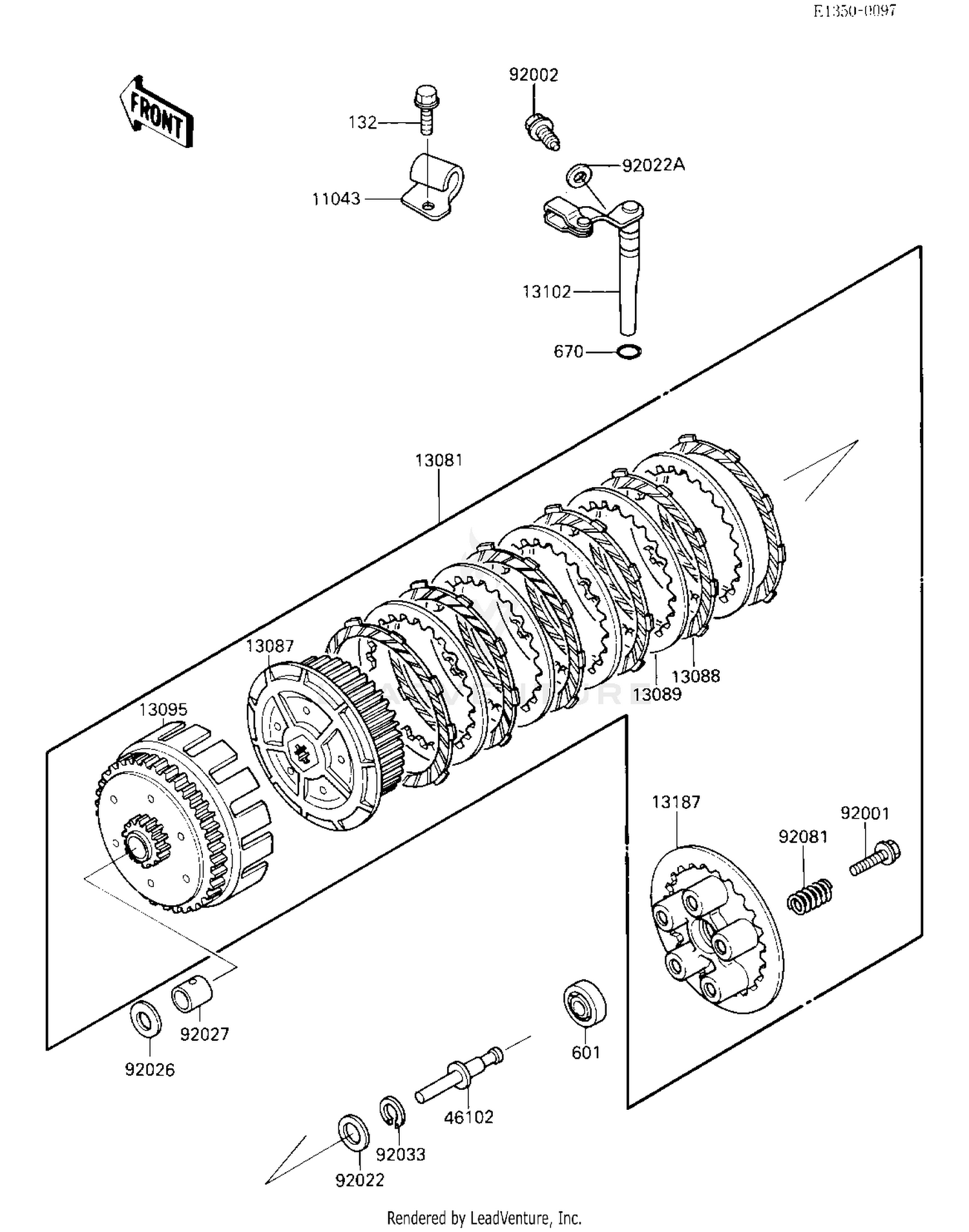

1985 Kawasaki KL250D2 CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11043
BRACKET
11043-1931
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#13081
CLUTCH-ASSY
13081-1243
|
$329.42 | ||
|
Available to order. Add to View Price |
|||
|
#13087
HUB-CLUTCH
13087-1063
|
$132.55 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1057
|
$14.91 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH,T=2.0
13089-1073
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1126
|
$451.90 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1064
|
$58.37 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1059
|
$78.76 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,CLUTCH PUSH
46102-1033
|
$26.31 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1576
Superseded by 92153-1599
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#92002
WASHER,16.3X29X1.75
92022-1356
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,20.5X30X1,STEEL
92022-112
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X11X1
92022-304
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,20.1X34X4
92026-1233
|
$11.06 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1808
Superseded by 92143-1669
|
$29.76 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,18MM
92033-029
|
$9.21 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING-CLUTCH
92081-083
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132J0612
Superseded by 132BB0612
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6001C3ML01
92045-1235
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,9MM
670B1509
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
