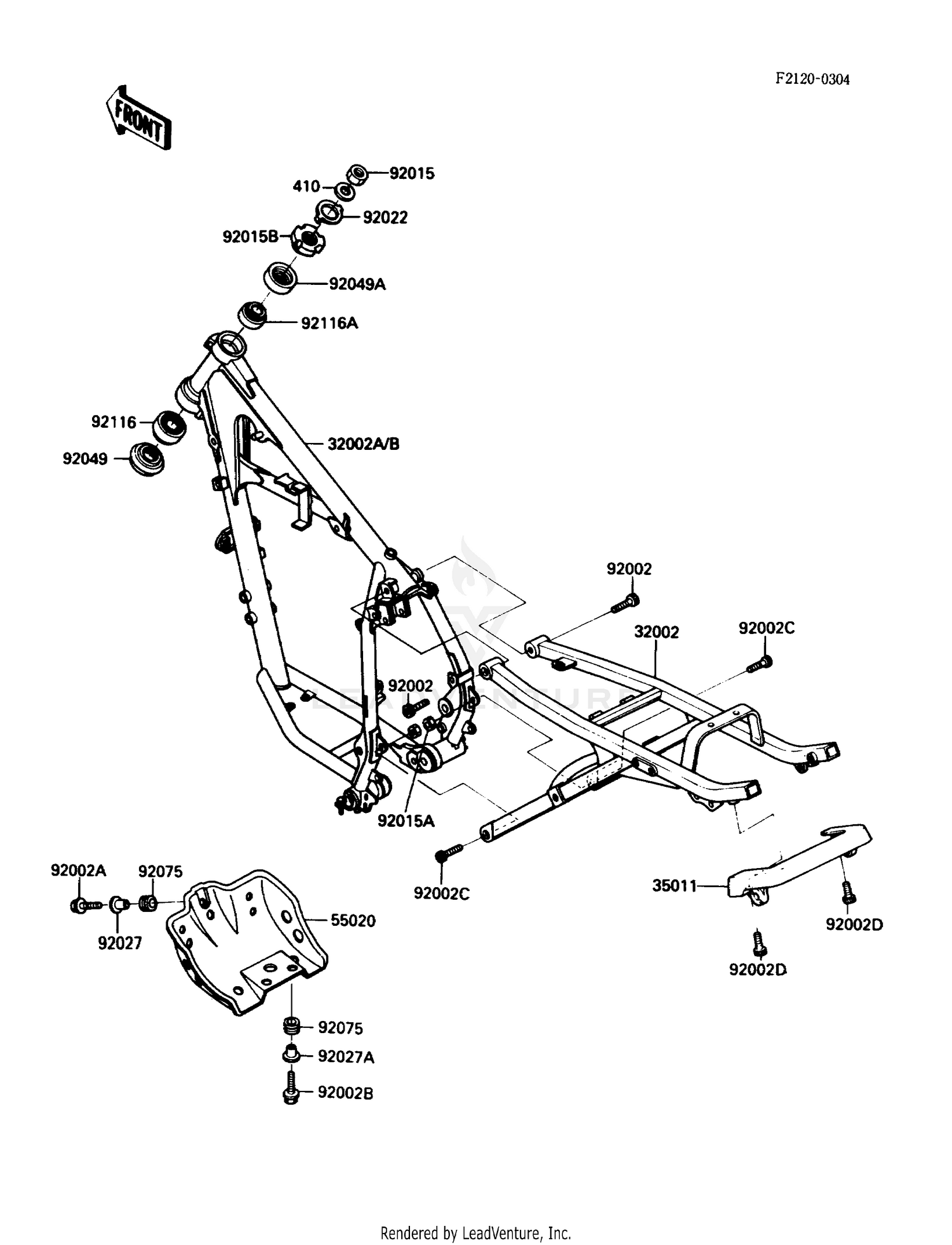

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32002
FRAME-COMP,RR
32002-1762
|
$992.69 | ||
|
Available to order. Add to View Price |
|||
|
#32002A
FRAME-COMP,FR
32002-1925
|
$1,072.24 | ||
|
Available to order. Add to View Price |
|||
|
#32002B
FRAME-COMP,FR
32002-1926
|
$1,072.24 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY
35011-1236
|
$63.67 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,ENGINE
55020-1168
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,8X40
92002-1181
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,8X20
92002-1417
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,6X20
92002-1418
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,SOCKET,8X25
92002-1442
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92002D
BOLT,SOCKET,8X10
92002-1443
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,18MM
92015-1404
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,8MM
92015-1406
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,25MM,T=12
92015-1546
|
$20.21 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1555
Superseded by 92200-1357
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=12
92027-1842
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,XMHE36X52X4J
92049-1162
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,STEERING STEM
92049-1214
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BEARING-ROLLER,HR320/28XJ
92116-1009
|
$34.93 | ||
|
Available to order. Add to View Price |
|||
|
#92116A
BEARING-ROLLER,HICAP 32005JR
92116-1052
|
$34.93 | ||
|
Available to order. Add to View Price |
|||
|
#410
W-PLAIN-S
410F1800
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
