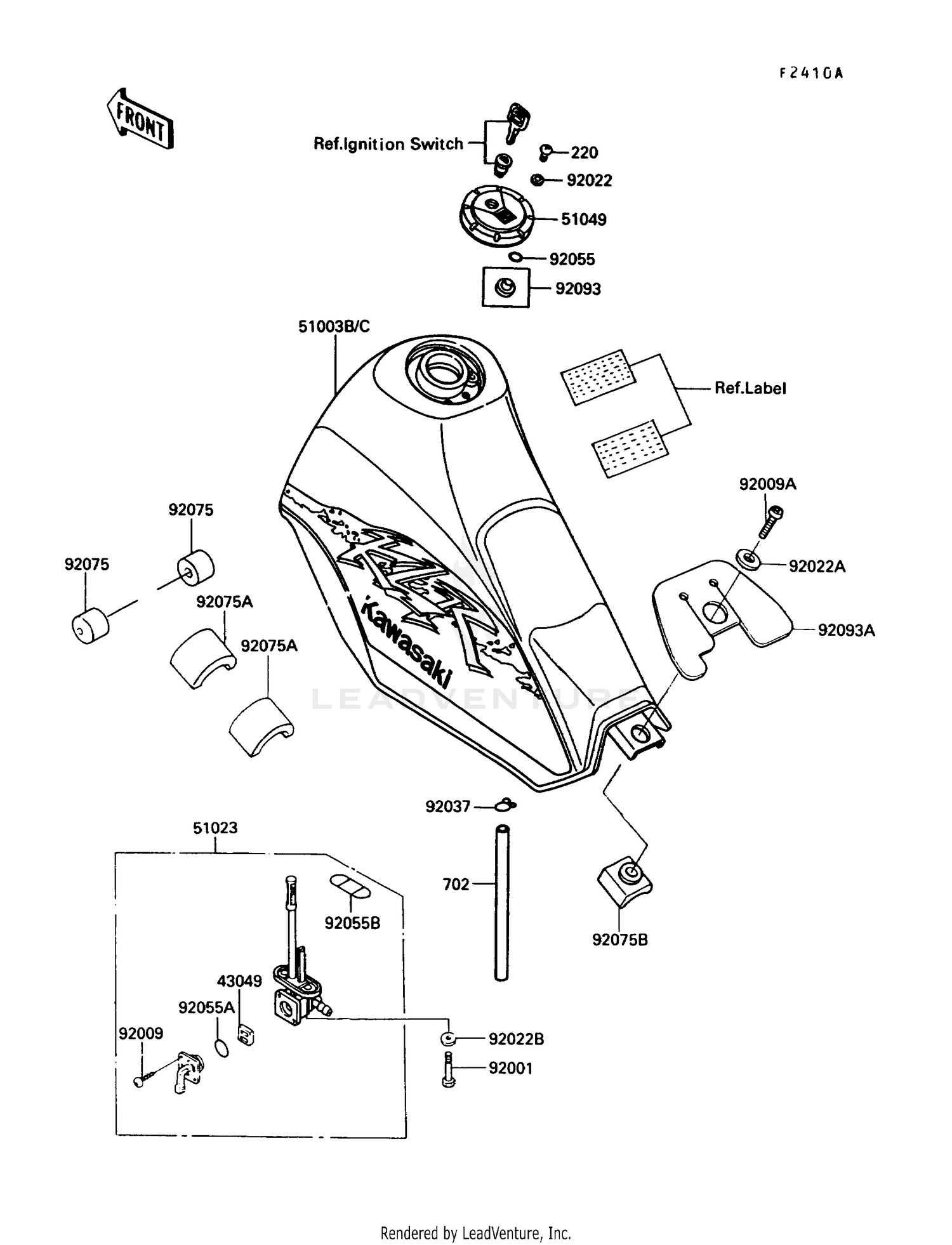

Fuel Tank (kl250-d8/d9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#43049
PACKING,VALVE
43049-1017
Superseded by 43049-1102
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#51003B
TANK-COMP-FUEL,P.WHIT
51003-5217-F1
|
$737.67 | ||
|
Available to order. Add to View Price |
|||
|
#51003C
TANK-COMP-FUEL,P.WHIT
51003-5221-F1
|
$758.79 | ||
|
Available to order. Add to View Price |
|||
|
#51023
TAP-ASSY,FUEL
51023-1112
Superseded by 51023-0723
|
$132.71 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1077
Superseded by 51049-0049
|
$103.90 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1091
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,3X5
92009-1123
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X8
92009-1294
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.1X10X1.0
92022-1038
Superseded by 92022-1977
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X38X1.2
92022-1659
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,6.2X11X1.5
92022-183
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1610
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1023
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,FUEL TAP LEVER
92055-1111
Superseded by 92055-0960
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,FUEL TAP PACKING
92055-1112
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,FUEL TANK
92075-125
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1382
|
$27.85 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,FUEL TANK
92075-1638
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FUEL TANK CAP
92093-1030
|
$7.50 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL,FUEL TANK
92093-1182
|
$28.20 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220D0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE-RUBBER,5X750
702A05750
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
