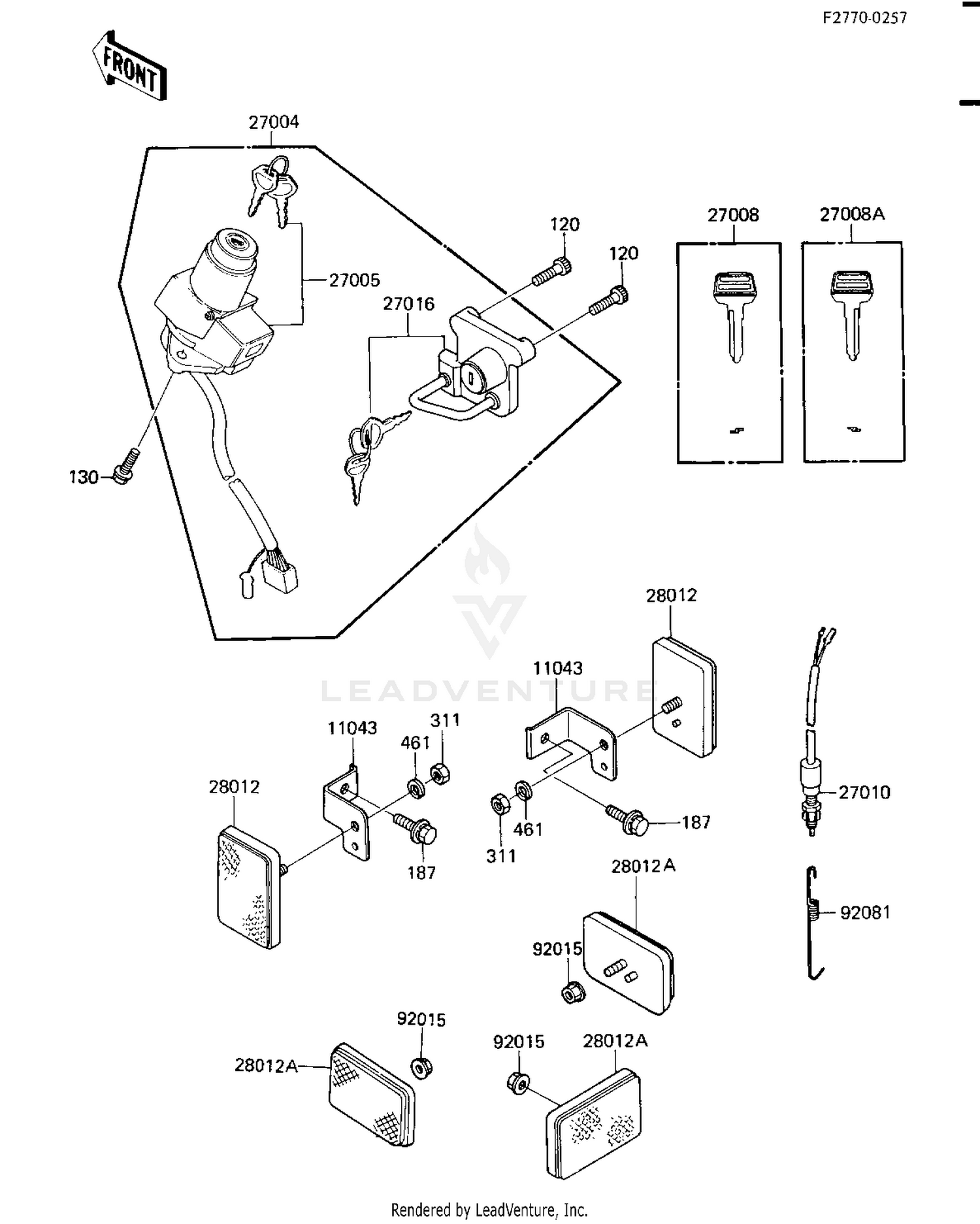

1986 Kawasaki KL600B2 IGNITION SWITCH/LOCKS/REFLECTORS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11043
BRACKET,REFLECTOR,FR
11043-1362
|
$11.85 | ||
|
Available to order. Add to View Price |
|||
|
#27004
SWITCH-ASSY
27004-5218
|
$154.87 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-1103
|
$176.08 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK,#A
27008-1034
|
$17.66 | ||
|
Available to order. Add to View Price |
|||
|
#27008A
KEY-LOCK,BLANK
27008-1035
Superseded by 27008-1105
|
$16.75 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,REAR BRAKE
27010-1019
Superseded by 27010-1474
|
$33.37 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,HELMET
27016-5075
|
$97.21 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX
28012-1003
|
$20.70 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-1054
Superseded by 28012-1088
|
$21.05 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE LAMP SWI
92081-1704
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X12
120S0612
Superseded by 120CB0612
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X14
130D0614
Superseded by 130AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP
187C0614
Superseded by 187AB0614
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
