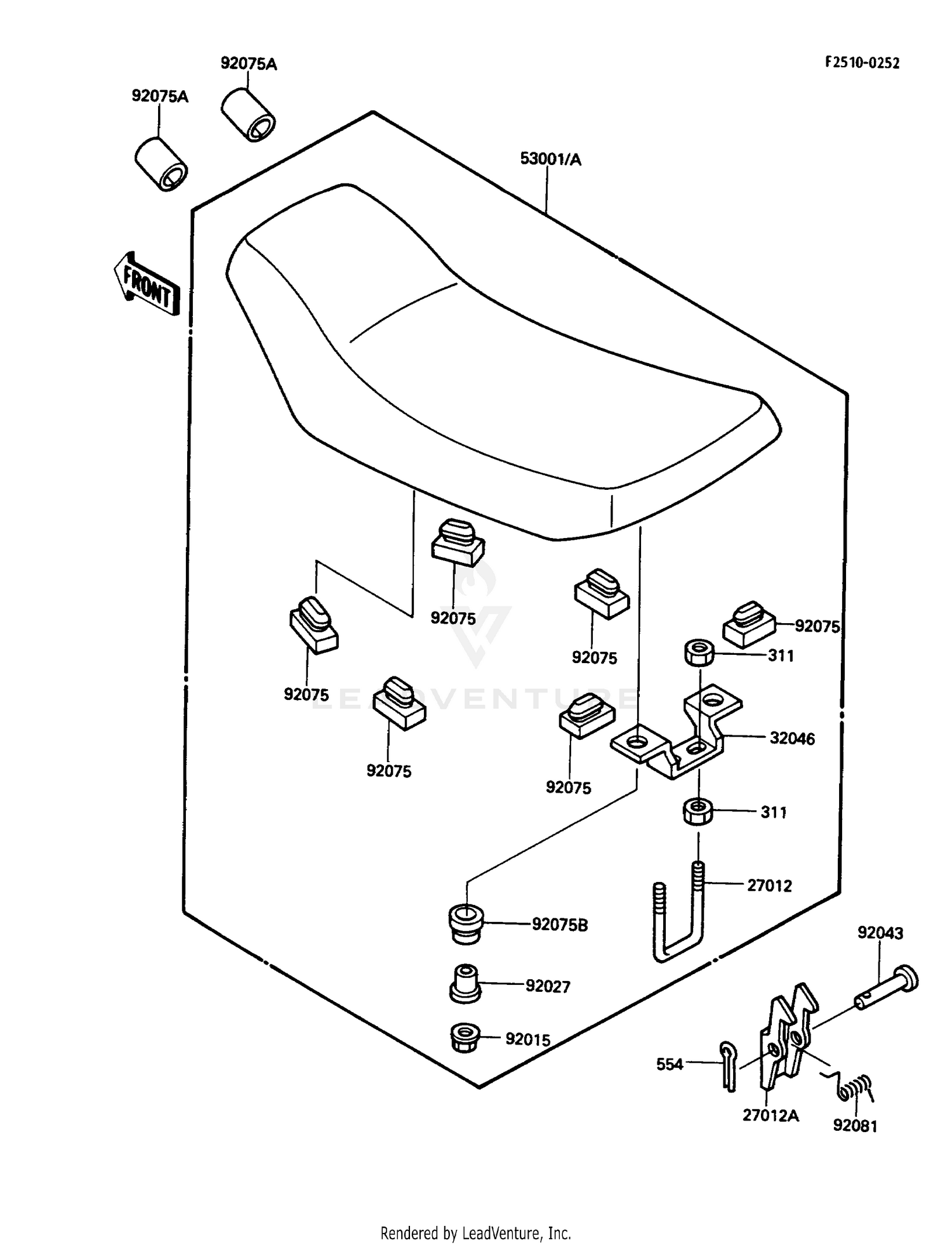

1988 Kawasaki KLF185A4 BAYOU SEAT OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#27012
HOOK,SEAT
27012-1322
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
|
#27012A
HOOK
27012-4009
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#32046
BRACKET-SEAT
32046-1221
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#53001A
SEAT-ASSY,BLUE
53001-1544-NE
|
$359.47 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1193
Superseded by 92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=12
92027-1062
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN, DUAL SEAT PIVOT
53011-006
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-099
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,SEAT
92075-1652
|
$12.61 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,SEAT
92075-1699
|
$6.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,SEAT HOOK
92081-1767
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#554
PIN-SNAP,1.2X21.2
554A0600
Superseded by 554DA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
