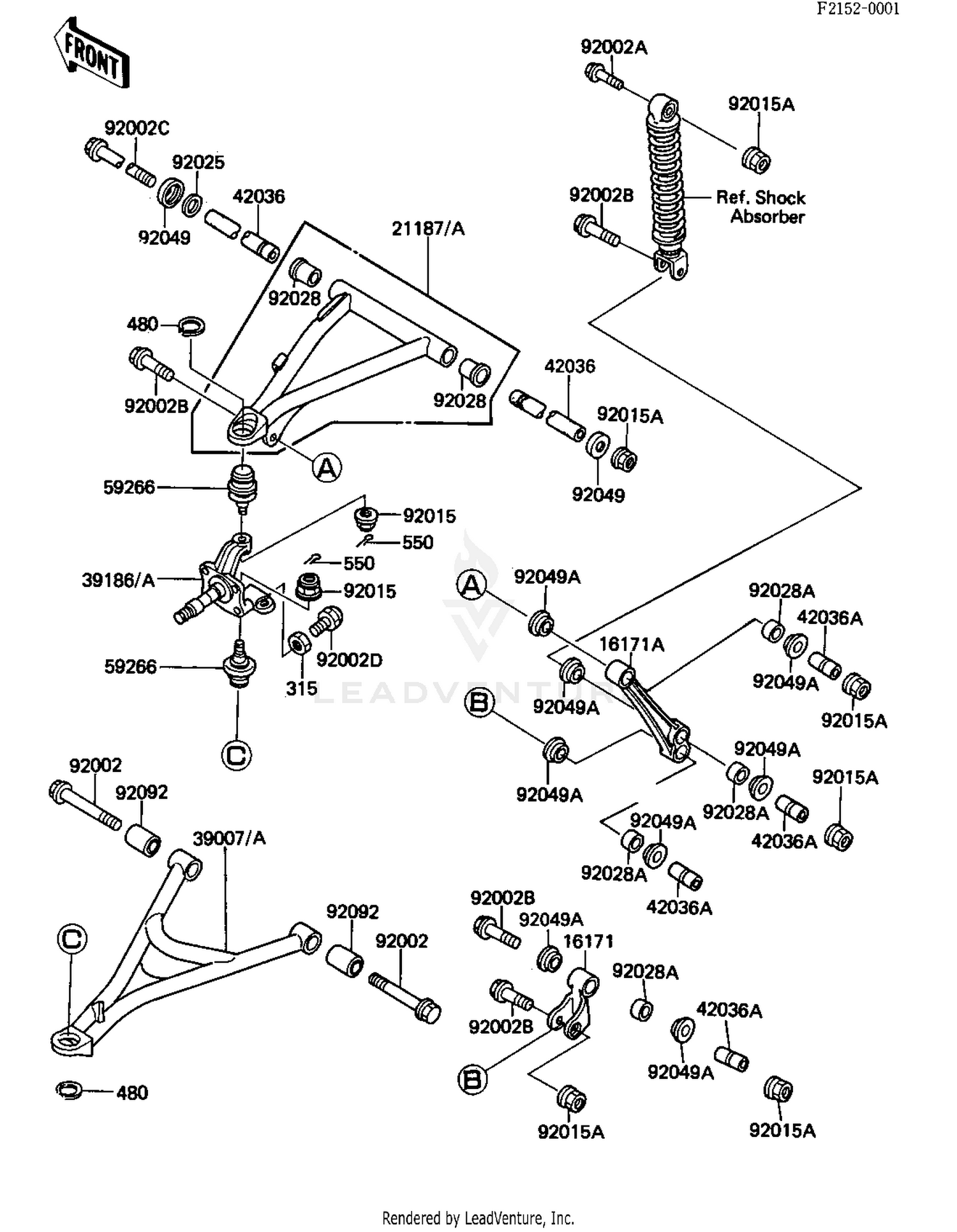

Front Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#16171
LINK,SUSPENSION,FR,LW
16171-1052
|
$114.32 | ||
|
Available to order. Add to View Price |
|||
|
#16171A
LINK,SUSPENSION,FR,UP
16171-1055
|
$115.59 | ||
|
Available to order. Add to View Price |
|||
|
#21187
ARM-ASSY,SUSPENSION,F
21187-1051
|
$86.27 | ||
|
Available to order. Add to View Price |
|||
|
#21187A
ARM-ASSY,SUSPENSION,F
21187-1052
|
$86.27 | ||
|
Available to order. Add to View Price |
|||
|
#39007
ARM-SUSP,FR,LH,LWR
39007-1076
|
$48.75 | ||
|
Available to order. Add to View Price |
|||
|
#39007A
ARM-SUSP,FR,RH,LWR
39007-1077
|
$67.84 | ||
|
Available to order. Add to View Price |
|||
|
#39186
KNUCKLE,LH
39186-1054
|
$286.73 | ||
|
Available to order. Add to View Price |
|||
|
#39186A
KNUCKLE,RH
39186-1055
|
$286.73 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,SUSPENSION ARM
42036-1160
|
$38.19 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE
42036-1176
|
$16.69 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT-BALL
59266-1060
|
$97.64 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,12X60
92002-1456
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,10X46.5
92002-1528
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#92002B
BOLT,FLANGED,10X53.5
92002-1529
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#92002C
BOLT,FLANGED,10X291.5
92002-1549
|
$31.24 | ||
|
Available to order. Add to View Price |
|||
|
#92002D
BOLT,8X30
92002-1559
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,FLANGED,10MM
92015-1338
Superseded by 92210-1080
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,10MM
92015-1522
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#92025
SHIM
92025-1678
|
$7.41 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,KNUCKLE
92028-1318
|
$73.85 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING,SUSPENSION LI
92028-1373
|
$39.00 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,KNUCKLE
92049-1198
|
$19.37 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHA17245.7F
92049-1223
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER
92092-1057
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#315
NUT-HEX-FINE
315J1000
Superseded by 315BB1000
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,32MM
480J3200
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550D2015
Superseded by 550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
