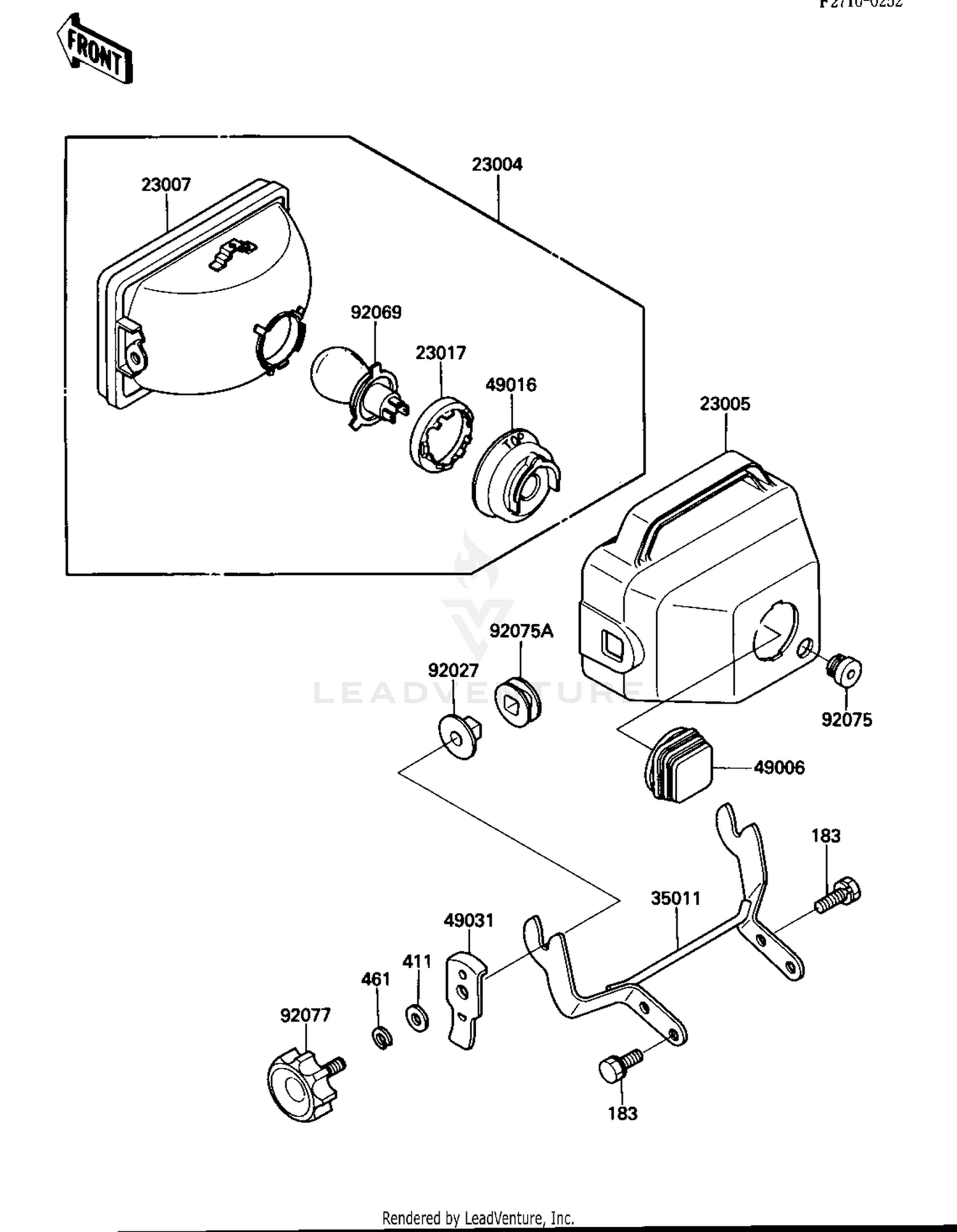

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#23004
LAMP-HEAD
23004-1192
|
$130.56 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-COMP-HEAD LAMP,B
23005-1064-6Z
|
$160.92 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP,HEAD LAMP
23007-1138
|
$126.07 | ||
|
Available to order. Add to View Price |
|||
|
#23017
SOCKET
23017-1051
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY,HEAD LAMP
35011-1256
|
$33.11 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,HEAD LAMP BODY
49006-1172
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-1111
|
$11.91 | ||
|
Available to order. Add to View Price |
|||
|
#49031
LATCH,HEAD LAMP
49031-1052
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR
92027-1938
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB
92069-1069
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1767
|
$6.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1768
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB
92077-1060
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183J0814
Superseded by 183BB0814
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#411
WASHER-PLAIN,8.5X18X1.6
411F0800
Superseded by 411AB0800
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,8MM,BLA
461K0800
Superseded by 461DB0800
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
