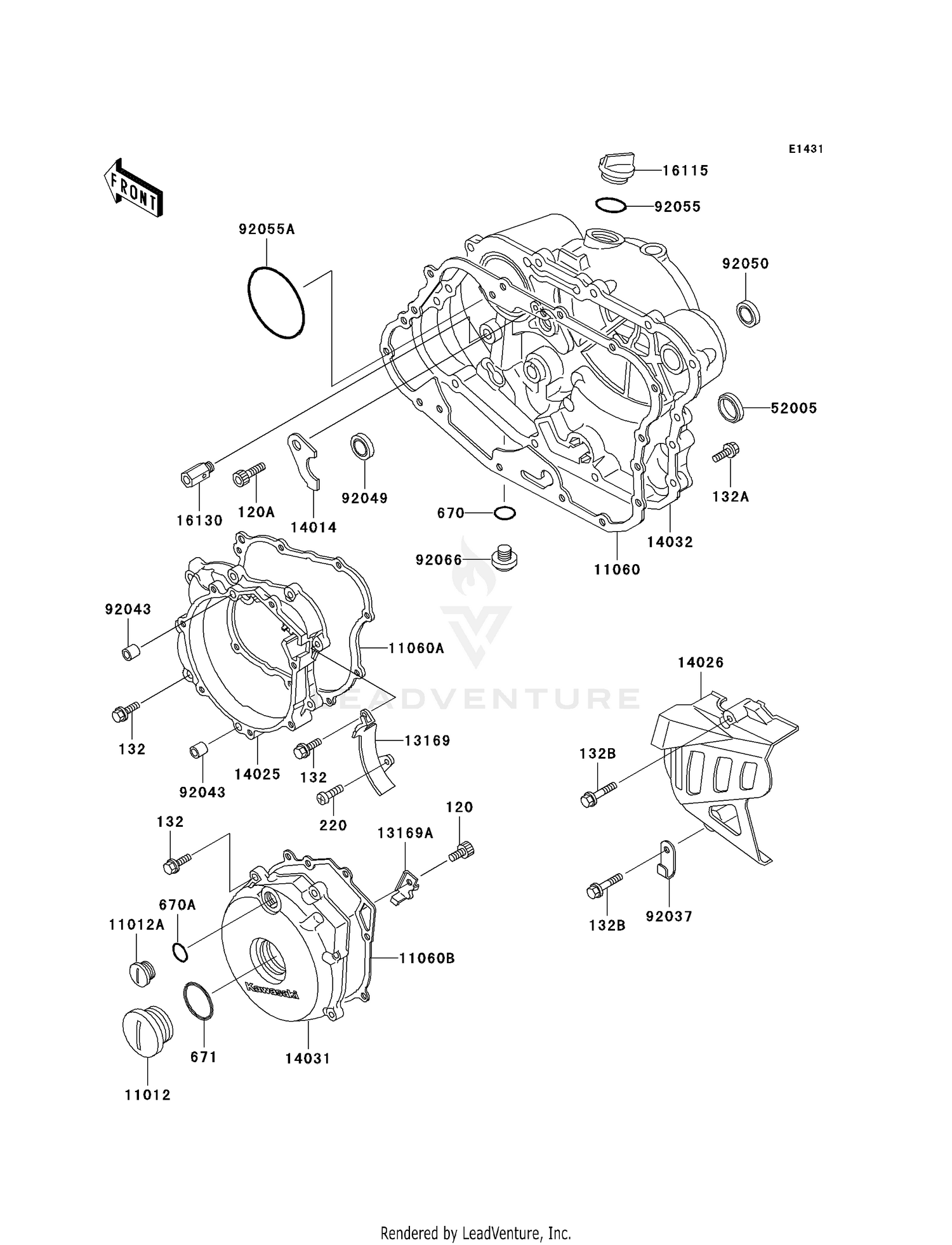

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET
120P0608
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET,6X10
120P0610
Superseded by 120CA0610
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X25
132J0625
Superseded by 132BB0625
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X30
132J0630
Superseded by 132BB0630
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X45
132J0645
Superseded by 132BB0645
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X8
220B0608
Superseded by 220AA0608
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,11MM
670B2011
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#670A
O RING,18MM
670B2018
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,40MM
671B2540
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1362
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP,TOP MARK
11012-1363
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,CLUTCH COVER
11060-1127
|
$36.71 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,GENERATOR CASE
11060-1128
|
$25.62 | ||
|
Available to order. Add to View Price |
|||
|
#11060B
GASKET,GENERATOR COVE
11060-1129
|
$17.12 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE
13169-1879
|
$18.27 | ||
|
Available to order. Add to View Price |
|||
|
#13169A
PLATE,GENERATOR LEAD
13169-1880
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1062
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,GENERATOR CASE
14025-1911
|
$213.03 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-1112
|
$54.47 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-1238
|
$195.74 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-1277
|
$298.67 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1009
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#16130
VALVE-ASSY-RELIEF
16130-1001
|
$39.58 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1009
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1191
|
$23.54 | ||
|
Available to order. Add to View Price |
|||
|
#92050
OIL SEAL
92050-078
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,31.5X2.6
92055-049
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,62.6X66X3.1
92055-1221
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN
92066-1156
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
