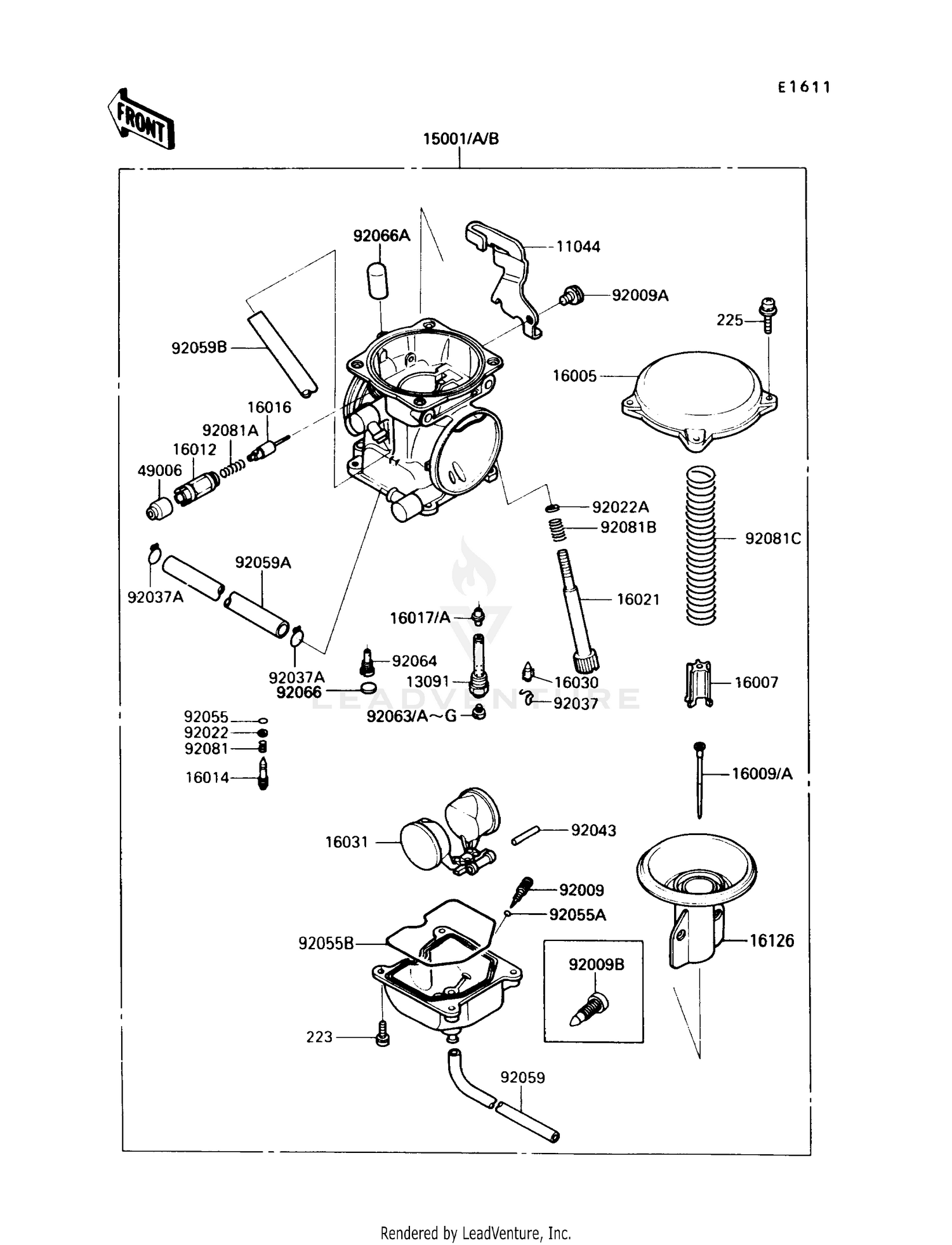

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11044
BRACKET,THROTTLE CABL
11044-1061
Superseded by 11044-1353
|
$57.29 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,NEEDLE JET
13091-1259
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1099
|
|||
|
Unavailable |
|||
|
#15001A
CARBURETOR-ASSY
15001-1121
|
$577.89 | ||
|
Available to order. Add to View Price |
|||
|
#15001B
CARBURETOR-ASSY
15001-1122
|
$493.98 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER,MIXING
16005-1057
|
$43.48 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING,VALVE
16007-1117
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,N31A
16009-1253
|
|||
|
Unavailable |
|||
|
#16009A
NEEDLE-JET,N31C
16009-1255
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP-STARTER PLUNGER
16012-1055
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW,PILOT ADJUST
16014-1029
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1065
|
$56.24 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1265
Superseded by 16017-1440
|
$50.50 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE
16017-1266
|
$48.56 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1109
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1056
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1163
|
$191.89 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,STARTER PLUNGER
49006-1165
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,M6X1.0
92009-1095
Superseded by 92009-1434
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X10
92009-1365
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,THROTTLE STOP
92022-1587
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1531
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1053
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,FLOAT CHAMBER
92055-1222
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92059
HOSE,FUEL OVERFLOW
92059-111
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6.5X11.5X200
92059-1538
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,6.5X9.5X410
92059-1539
|
$32.10 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,2ND,#125
92063-1069
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#118
92063-1071
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#118
92063-1071
|
$14.26 | ||
|
Unavailable |
|||
|
#92063C
JET-MAIN,#120
92063-1072
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#120
92063-1072
|
$14.26 | ||
|
Unavailable |
|||
|
#92063E
JET-MAIN,2ND,#122
92063-1073
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063F
JET-MAIN,#112
92063-1117
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063G
JET-MAIN,#115
92063-1118
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1101
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,PILOT AIR SCREW,6.9X2
92066-1051
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,12X25
92068-006
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,PLUNGER
92081-1720
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,THROTTLE STOP
92081-1721
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,VACUUM VALVE
92081-1826
|
$24.89 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223C0416
Superseded by 223AB0416
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#225
SCREW-PAN-WSP-CROS
225C0418
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
