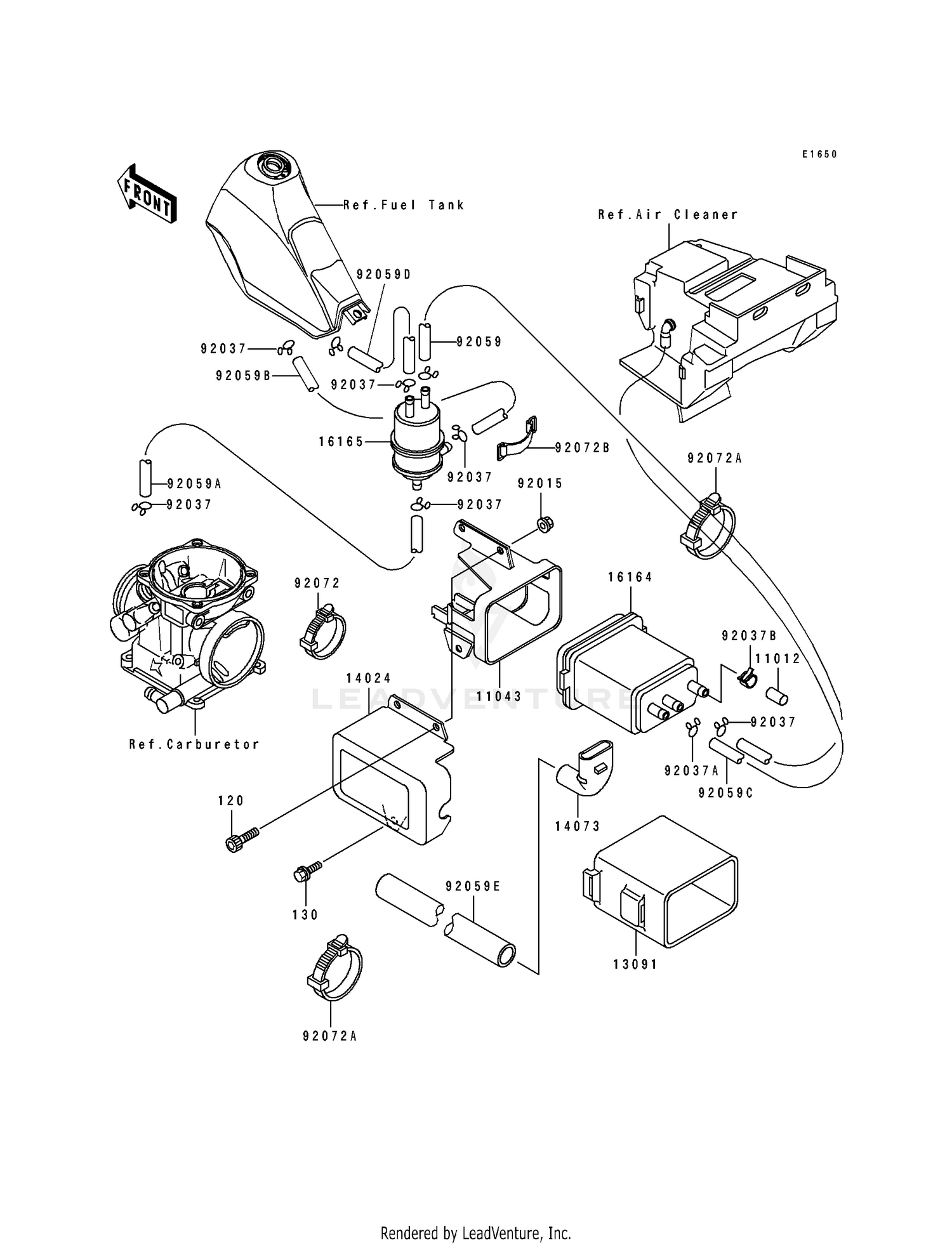

Fuel Evaporative System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,CANISTER
11012-1388
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#11043
BRACKET,CANISTER
11043-1180
|
$50.34 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,CANISTER
13091-1176
|
$69.01 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,CANISTER
14024-1063
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#14073
DUCT,CANISTER
14073-1219
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#16164
CANISTER
16164-1001
|
$139.30 | ||
|
Available to order. Add to View Price |
|||
|
#16165
SEPARATOR
16165-1001
|
$86.53 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1365
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP-PIPE
92037-072
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HOSE
92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,CANISTER
92037-1512
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,5X8X660,BLUE
92059-1531
|
$21.88 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,4X9X935,WHITE
92059-1533
Superseded by 92059-1916
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,5X10X1000,BLUE
92059-1534
Superseded by 92190-1007
|
$30.92 | ||
|
Available to order. Add to View Price |
|||
|
#92059C
TUBE,7X12X400,GREEN
92059-1535
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#92059D
TUBE,5X8X660,BLUE
92059-1536
Superseded by 92059-1531
|
$21.88 | ||
|
Unavailable |
|||
|
#92059E
TUBE
92059-1571
|
$35.27 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=149
92072-031
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=50
92072-066
Superseded by 92072-1419
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X16
120S0616
Superseded by 120CB0616
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED
130C0608
Superseded by 130AB0608
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
