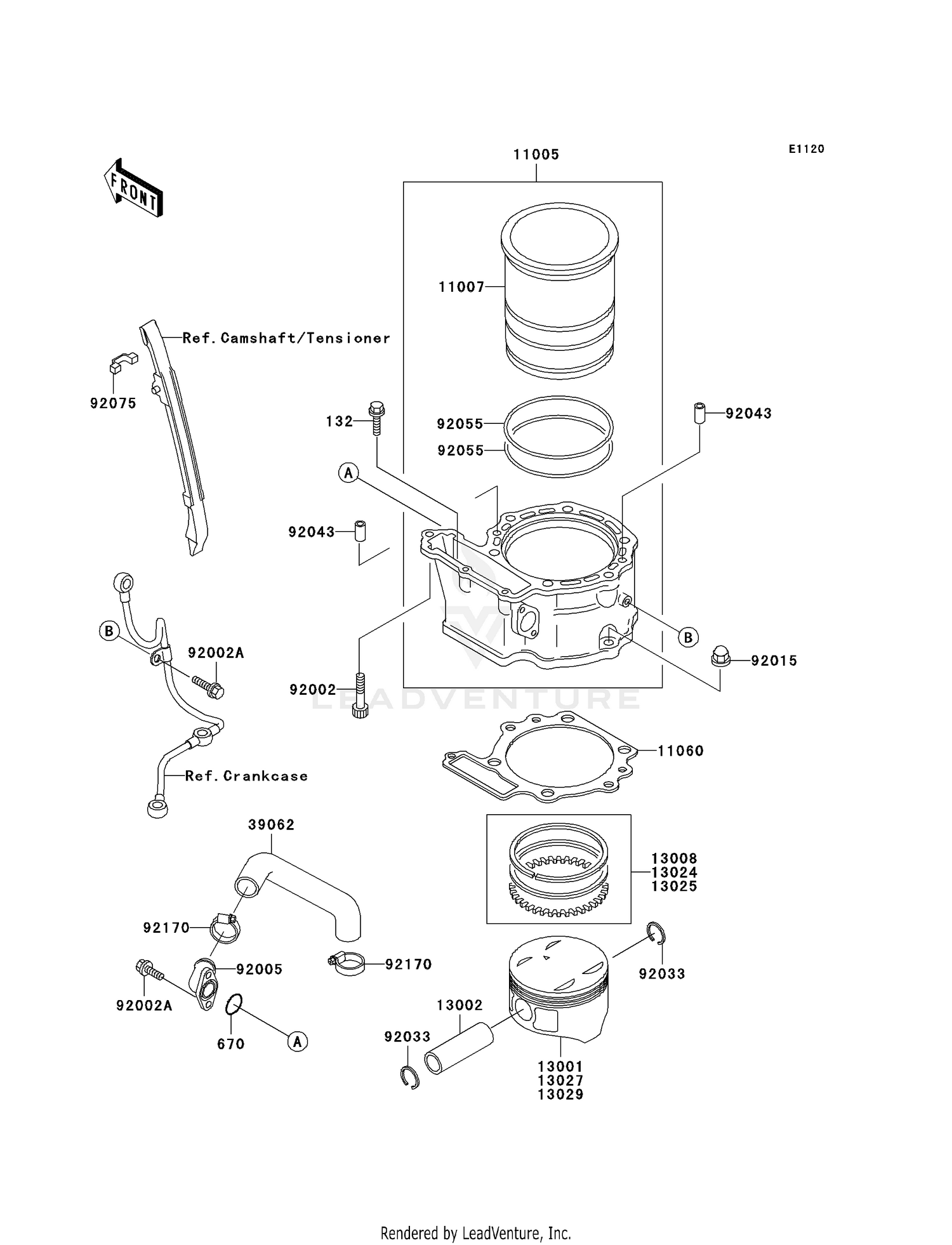

Cylinder/piston(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,18MM
670B2018
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11005
CYLINDER-ENGINE
11005-1781
|
$899.99 | ||
|
Available to order. Add to View Price |
|||
|
#11007
LINER-CYLINDER
11007-1137
Superseded by 11007-0710
|
$169.08 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,CYLINDER BASE
11060-1110
|
$13.23 | ||
|
Available to order. Add to View Price |
|||
|
#13001
PISTON-ENGINE,STD
13001-1284
|
$132.00 | ||
|
Available to order. Add to View Price |
|||
|
#13002
PIN-PISTON
13002-1101
|
$31.05 | ||
|
Available to order. Add to View Price |
|||
|
#13008
RING-SET-PISTON,STD
13008-1081
|
$69.16 | ||
|
Unavailable |
|||
|
#13024
RING-SET-PISTON LL,O/
13024-1071
|
$69.16 | ||
|
Unavailable |
|||
|
#13025
RING-SET-PISTON L,O/S
13025-1078
|
$69.16 | ||
|
Unavailable |
|||
|
#13027
PISTON-ENGINE LL,O/S
13027-1153
|
$132.00 | ||
|
Available to order. Add to View Price |
|||
|
#13029
PISTON-ENGINE L,O/S 0
13029-1176
|
$132.00 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,PUMP-CYL
39062-1216
|
$23.74 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,8X35
92002-1409
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT-FLANGED-SMALL,6X12
92002-1569
Superseded by 132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1279
|
$22.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CAP,8MM
92015-1982
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1226
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,110.5X2.5
92055-1371
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1968
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP,COOLING HOSE
92170-1033
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
