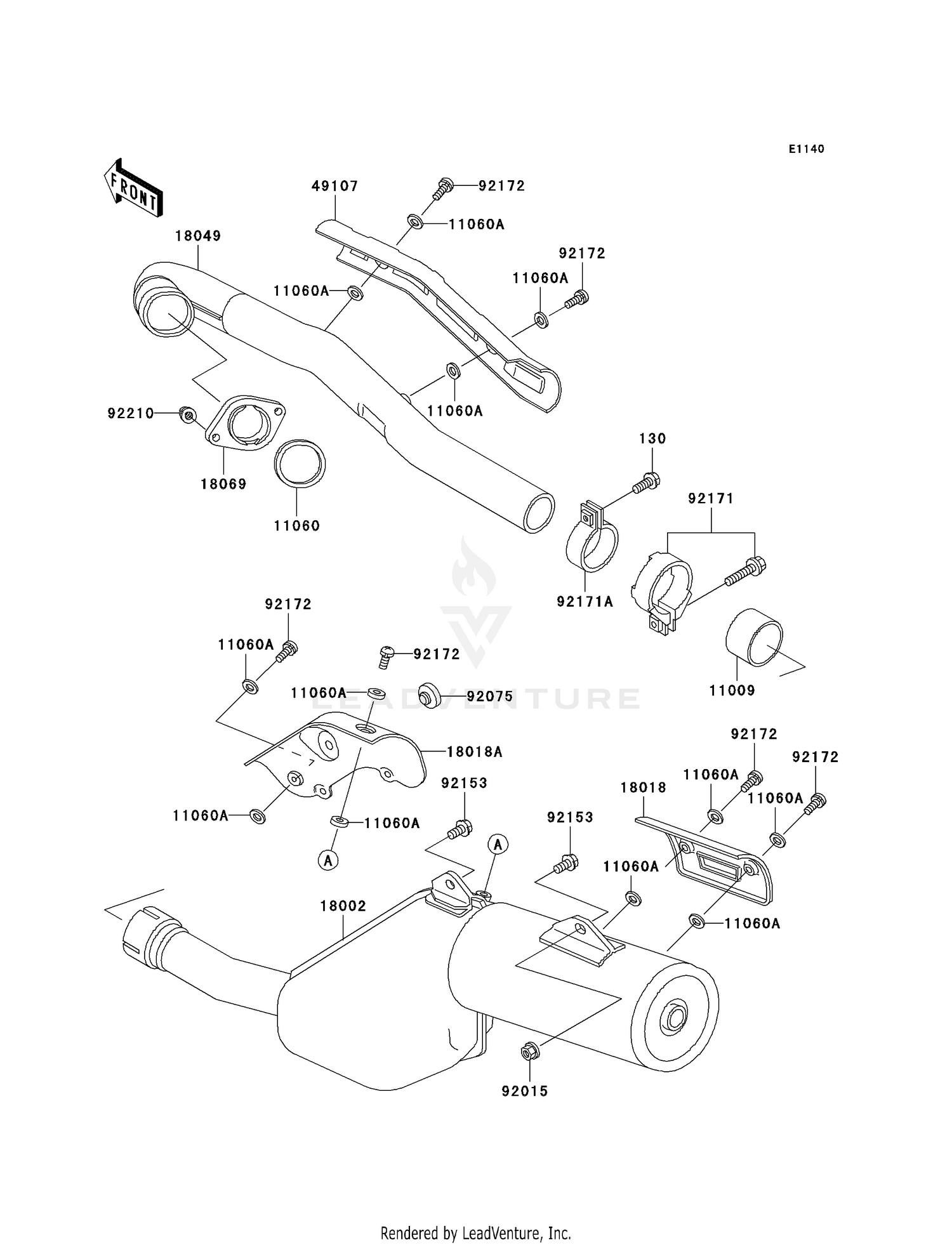

Muffler(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,8X20
130Y0820
Superseded by 130BD0820
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,EXHAUST PIPE C
11009-1666
|
$31.42 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,EXHAUST PIPE HOLDER
11060-1108
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,6.2X11.5X1.5
11060-1109
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#18002
BODY-COMP-MUFFLER
18002-1887
Superseded by 18091-0369
|
$796.65 | ||
|
Available to order. Add to View Price |
|||
|
#18018
PLATE-HEAT GUARD
18018-1053
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#18018A
PLATE-HEAT GUARD
18018-1072
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#18049
PIPE-EXHAUST
18049-1460
|
$220.34 | ||
|
Available to order. Add to View Price |
|||
|
#18069
HOLDER-EXHAUST PIPE
18069-1063
|
$31.61 | ||
|
Available to order. Add to View Price |
|||
|
#49107
COVER-EXHAUST PIPE,FR
49107-1100
|
$70.78 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,8MM
92015-1402
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-005
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-0465
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0139
Superseded by 92173-0281
|
$25.63 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-0140
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-0097
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,CAP,8MM
92210-1132
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
