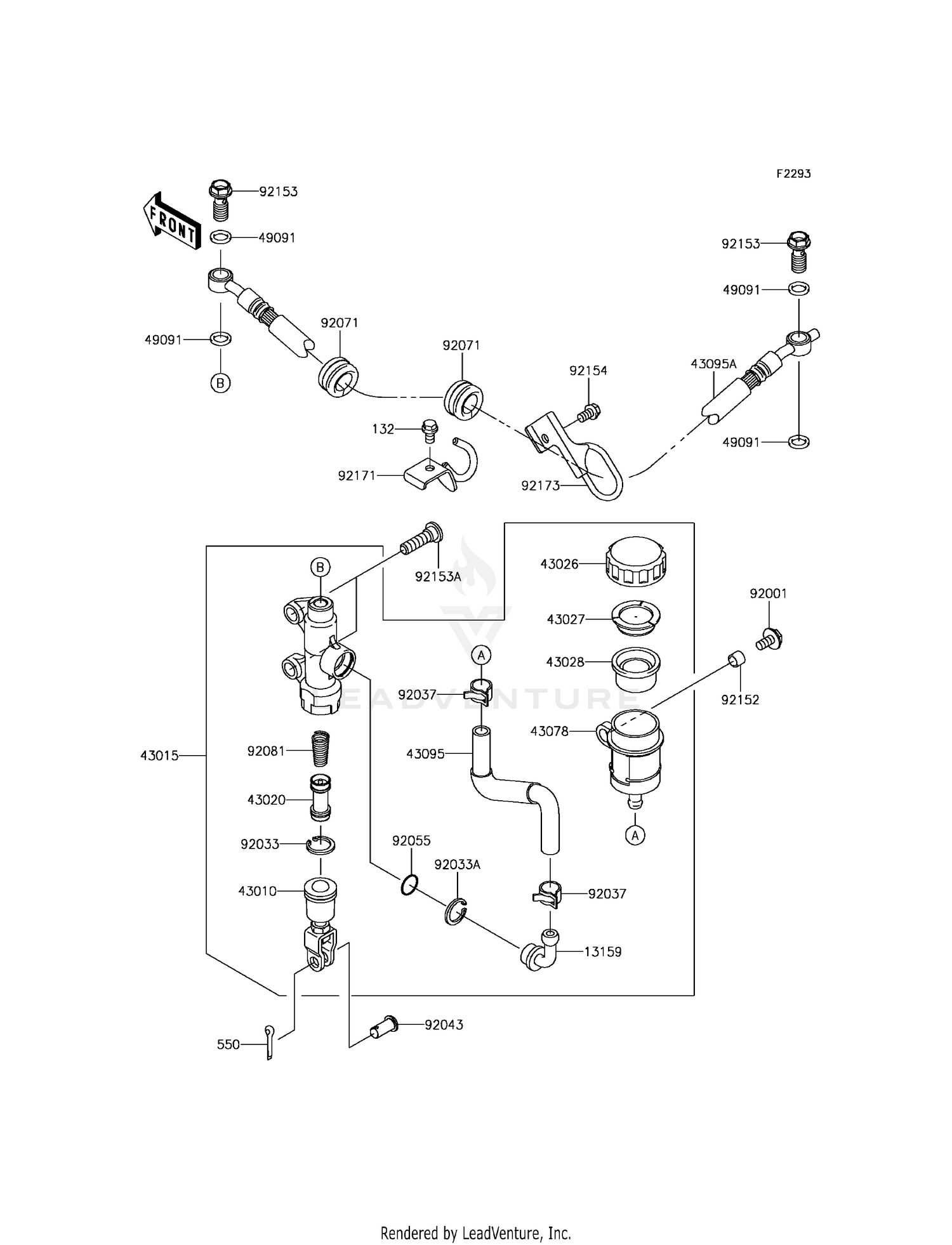

Rear Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X10
132BA0610
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR
13159-1056
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#43010
ROD-ASSY-BRAKE
43010-1074
|
$63.44 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0130
|
$392.08 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-1057
|
$62.75 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-0009
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-1053
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1065
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-0060
|
$31.22 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,RR MASTER
43095-0464
|
$21.80 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,RR
43095-0566
|
$81.71 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/P,6X16
92001-1860
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,20.9X24.6X1.2
92033-0079
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,20.5MM
92033-1186
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1710
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X17
92043-0104
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,14.8X2.4
92055-0741
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,15X20X16
92071-0056
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,MASTER CYLINDER
92081-1737
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,7.1X9.5X7
92152-0561
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,8X30
92153-1624
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X10
92154-0950
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,BRAKE HOSE,F.S.
92171-0712-18R
|
$7.06 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP
92173-0203
|
$9.47 | ||
|
Available to order. Add to View Price |
|||
