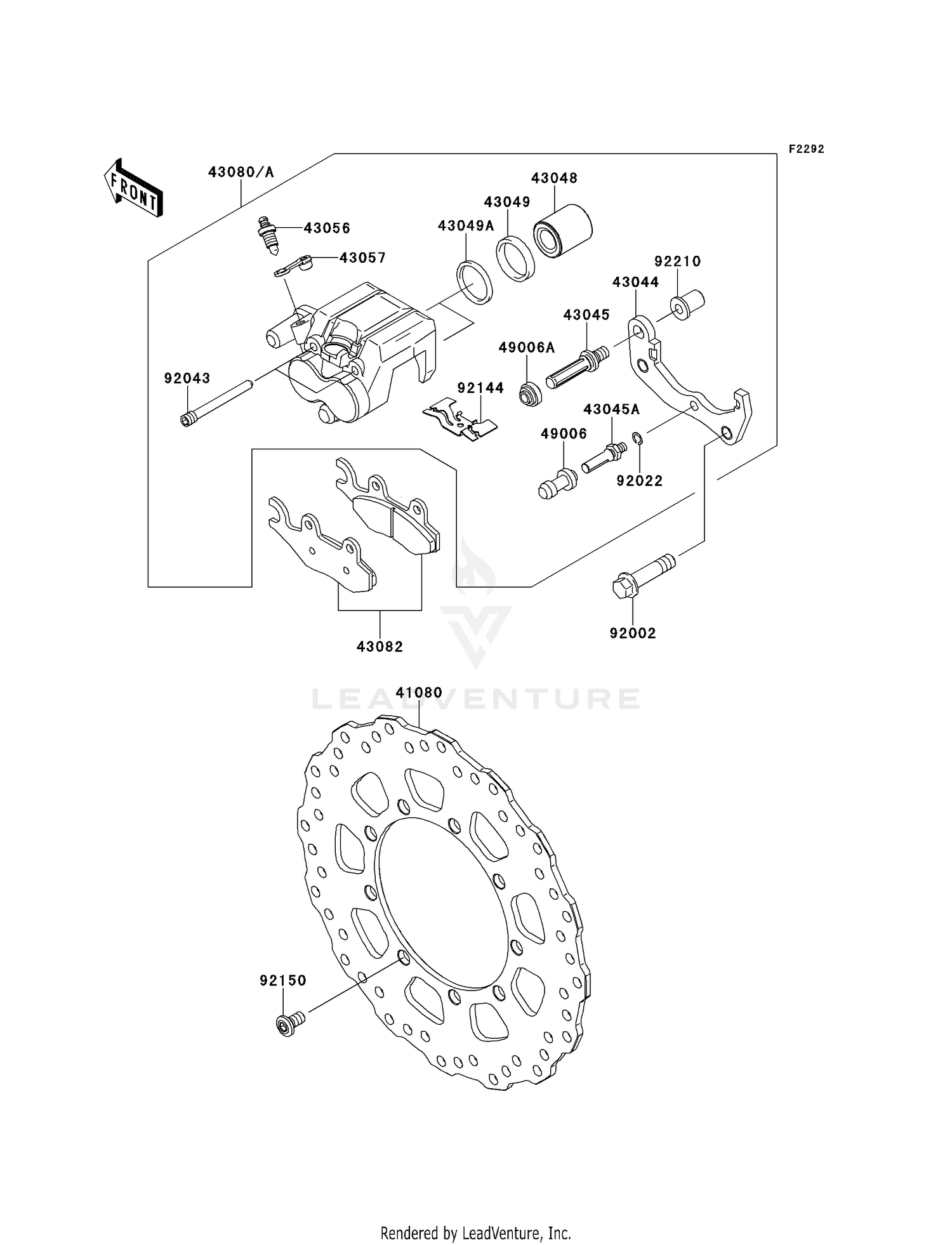

Front Brake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41080
DISC,FR,BLACK
41080-0099-11H
|
$449.51 | ||
|
Available to order. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER,FR,LH
43044-0006
|
$150.17 | ||
|
Available to order. Add to View Price |
|||
|
#43045
SHAFT-CALIPER
43045-0004
|
$22.25 | ||
|
Available to order. Add to View Price |
|||
|
#43045A
SHAFT-CALIPER
43045-1010
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#43048
PISTON-CALIPER
43048-1068
|
$78.71 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,PISTON SEAL
43049-1060
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING,PISTON SEAL
43049-1061
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1055
Superseded by 43056-1056
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43080A
CALIPER-SUB-ASSY,FR,L
43080-0095-25S
|
$372.83 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-0060
|
$65.50 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CALIPER
49006-1088
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,CALIPER
49006-1242
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED,10X41
92002-1468
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,WAVE
92022-1373
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,HANGER
92043-1416
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,PAD
92144-1847
|
$29.15 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,8X15
92150-1852
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-0615
|
$6.06 | ||
|
Available to order. Add to View Price |
|||
