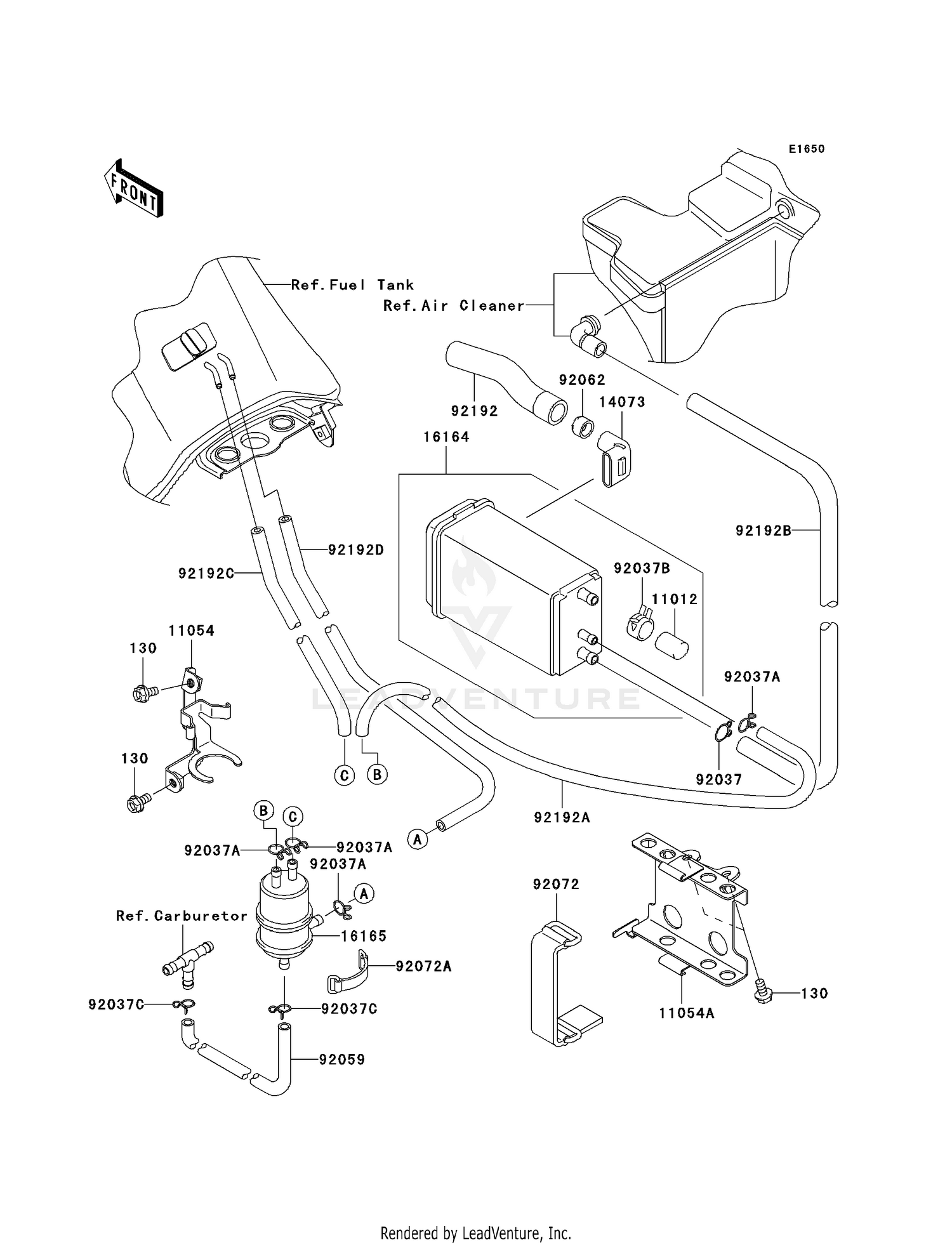

Fuel Evaporative System (e8f) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X12
130BA0612
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP,CANISTER
11012-1388
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#11054
BRACKET,SEPARATOR
11054-0494
|
$39.20 | ||
|
Available to order. Add to View Price |
|||
|
#11054A
BRACKET,CANISTER
11054-0495
|
$34.20 | ||
|
Available to order. Add to View Price |
|||
|
#14073
DUCT,CANISTER
14073-1219
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#16164
CANISTER
16164-1054
Superseded by 16164-0017
|
$124.62 | ||
|
Available to order. Add to View Price |
|||
|
#16165
SEPARATOR
16165-1001
|
$86.53 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,12.5MM
92037-1271
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,CANISTER
92037-1512
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP
92037-1712
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,4X9X935,WHITE
92059-1804
Superseded by 92059-1916
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#92062
NOZZLE
92062-1070
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=90
92072-0135
|
$17.42 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=50
92072-1419
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,AIR INTAKE,CANIS
92192-0336
|
$33.89 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,SEPARATOR-CANIST
92192-0517
|
$95.28 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE,AIC-CANISTER
92192-0518
|
$35.35 | ||
|
Available to order. Add to View Price |
|||
|
#92192C
TUBE,5X9X400
92192-0519
|
$45.39 | ||
|
Available to order. Add to View Price |
|||
|
#92192D
TUBE,5X10X300
92192-0520
|
$36.73 | ||
|
Available to order. Add to View Price |
|||
