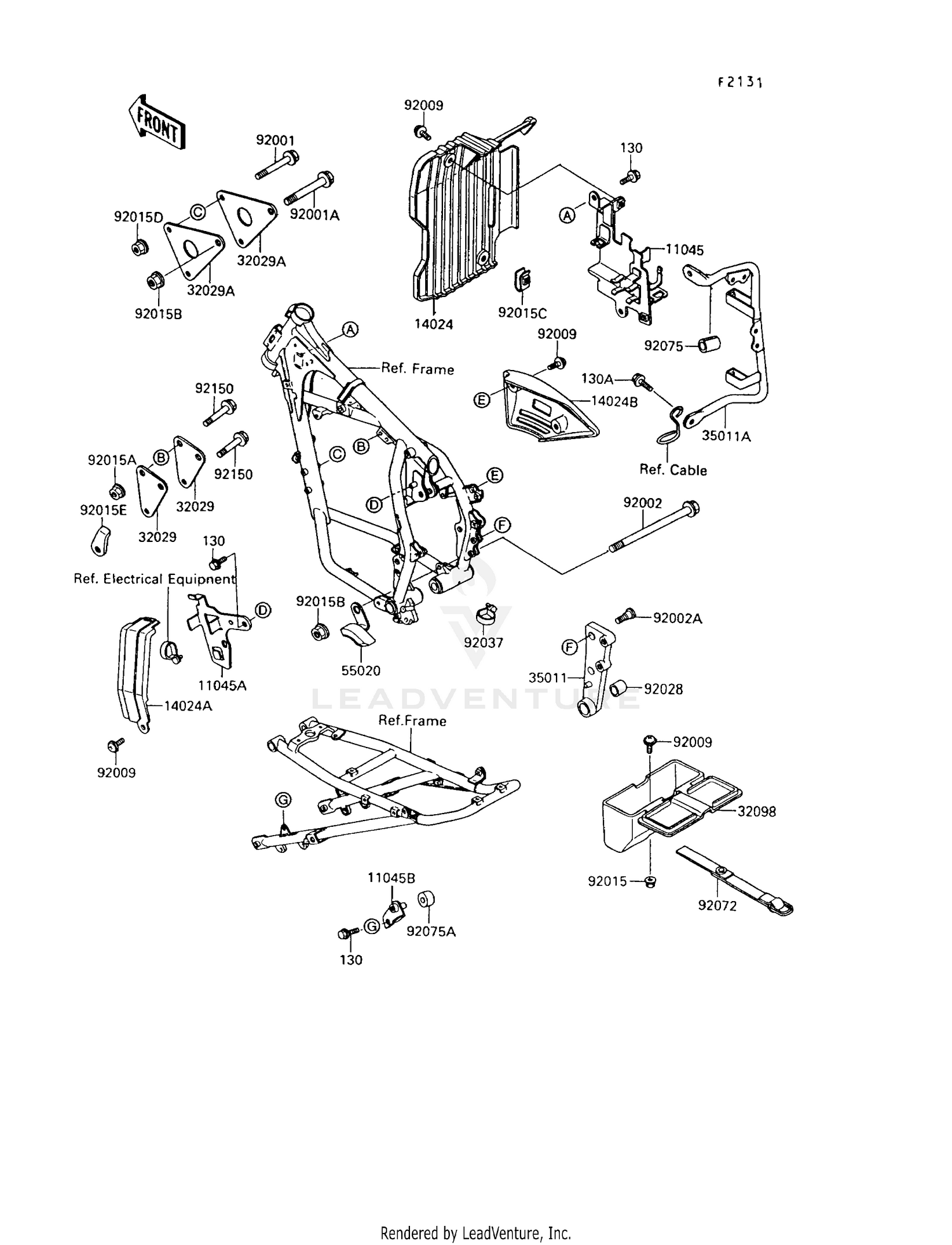

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11045
BRACKET,ELECTRIC,RH
11045-1358
|
$61.20 | ||
|
Available to order. Add to View Price |
|||
|
#11045A
BRACKET,ELECTRIC,LH
11045-1359
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11045B
BRACKET
11045-1360
Superseded by 11054-1793
|
$24.31 | ||
|
Available to order. Add to View Price |
|||
|
#14024
COVER,FRONT RESERVOIR
14024-1372
|
$66.32 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,SIDE STAND SWIT
14024-1373
|
$36.41 | ||
|
Available to order. Add to View Price |
|||
|
#14024B
COVER,RESERVOIR TANK
14024-1470
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#32029
BRACKET-ENGINE
32029-1685
Superseded by 32029-1956
|
$16.01 | ||
|
Available to order. Add to View Price |
|||
|
#32029A
BRACKET-ENGINE,FR
32029-1805
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#32098
CASE-TOOL,P.WHITE
32098-1074-6F
Superseded by 32098-0014-6F
|
$50.37 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY
35011-1327
|
$57.55 | ||
|
Available to order. Add to View Price |
|||
|
#35011A
STAY,HOSE&RESERVOIR T
35011-1370
|
$74.82 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,CHAIN
55020-1266
|
$40.06 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT FLANGED,8X70
92001-1583
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,10X75
92001-4021
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,10X145
92002-1348
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,SOCKET,8X23.5
92002-1598
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
92009-1288
Superseded by 92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,FLANGED,8MM
92015-1406
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,FLANGED,10MM
92015-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,6MM
92015-1602
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015D
NUT,FLANGED,LOCK,8MM
92015-1668
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015E
NUT
92015-1673
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1259
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,SPEED,L=80.5
92037-1903
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,TOOL CASE
92072-1219
|
$21.21 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1941
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-243
Superseded by 92161-0510
|
$6.59 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,8X40
92150-1415
Superseded by 92150-1168
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X12
130J0612
Superseded by 130BB0612
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X14
130J0614
Superseded by 130BB0614
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
