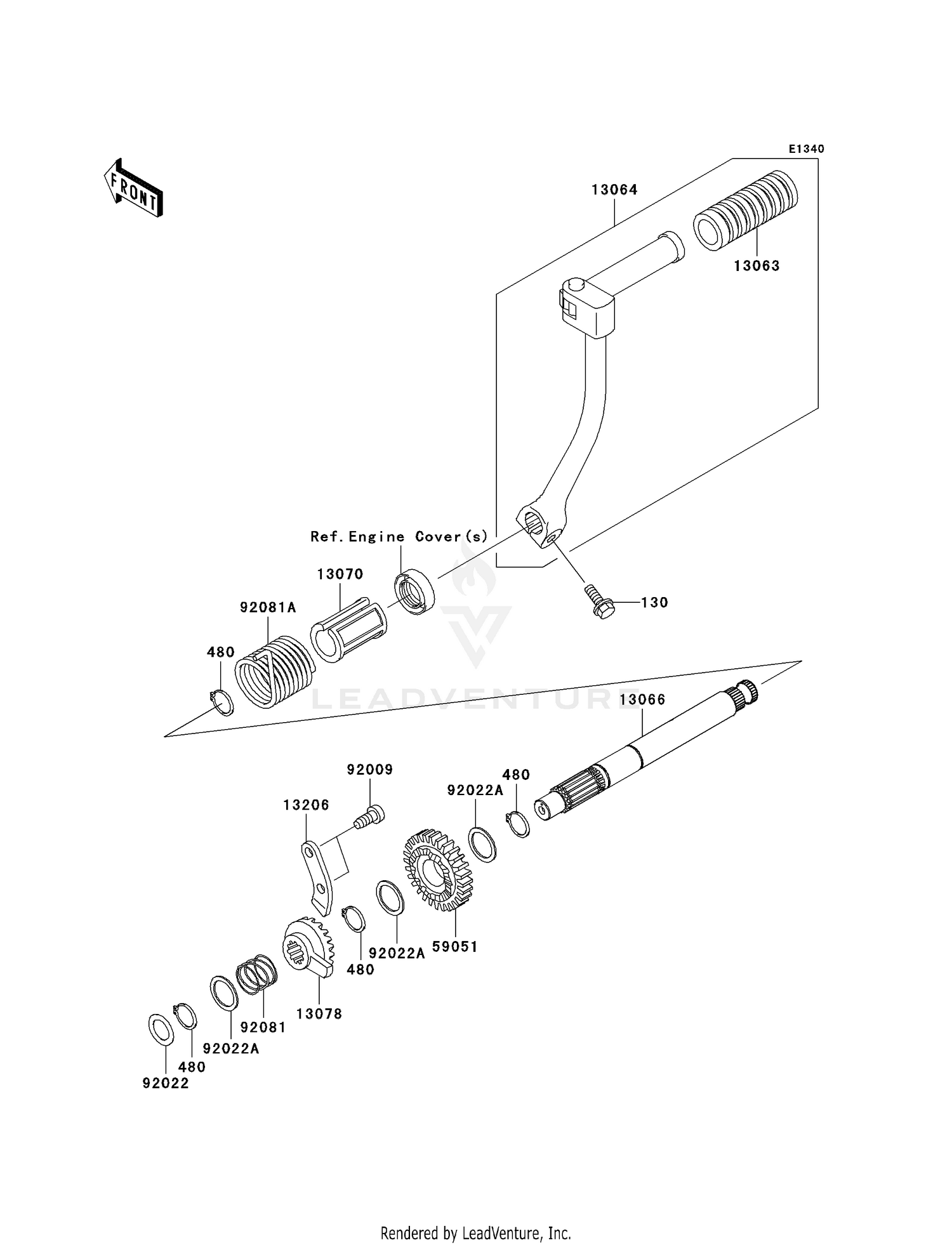

Kickstarter Mechanism (a1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X22
130P0622
Superseded by 130CA0622
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#480
CIRCLIP-TYPE-C,16MM
480J1600
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#13063
DAMPER,PEDAL
13063-002
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#13064
LEVER-ASSY-KICK
13064-1211
Superseded by 13064-0012
|
$116.97 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT-KICK
13066-1089
|
$79.81 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,KICK SHAFT
13070-1035
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#13078
RATCHET,KL250-D2
13078-1052
|
$64.01 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1006
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,KICKSTARTER
59051-1385
|
$39.08 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING
92009-1104
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,13.2X20X0.5
92022-1224
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,16.8X22X0.5
92022-315
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,RATCHET
92081-122
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,KICK STARTER
92081-1276
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
