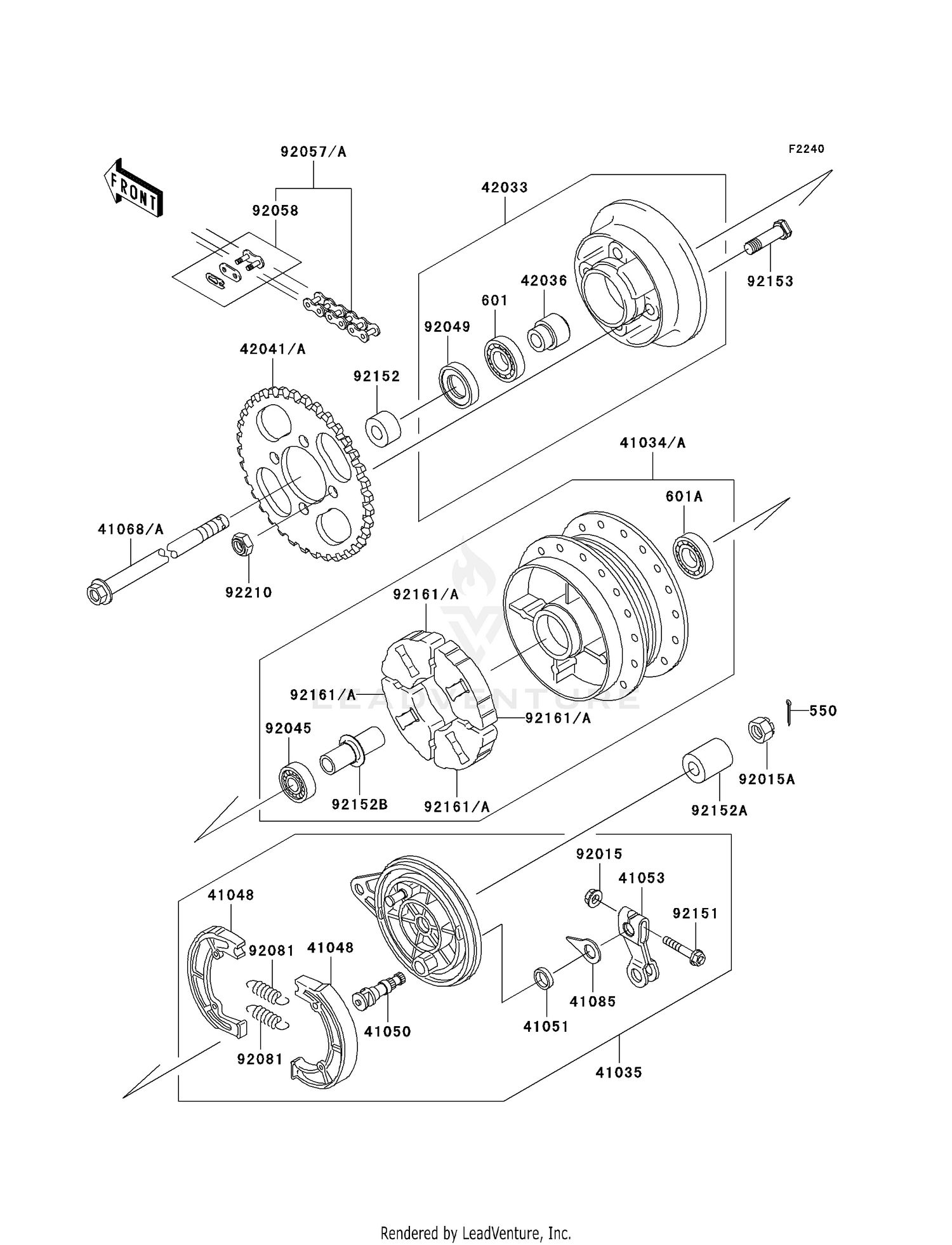

Rear Hub (a1-a3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#550
PIN-COTTER,2.5X20
550S2520
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6004UG
601B6004UG
|
$14.68 | ||
|
Unavailable |
|||
|
#601A
BEARING-BALL,#6301UG
601B6301UG
|
$16.88 | ||
|
Unavailable |
|||
|
#41034A
DRUM-ASSY,REAR BRAKE
41034-1344
Superseded by 41034-0010
|
$75.83 | ||
|
Available to order. Add to View Price |
|||
|
#41035
PANEL-ASSY-BRAKE,RR
41035-1542
|
$93.76 | ||
|
Available to order. Add to View Price |
|||
|
#41048
SHOE-BRAKE
41048-1141
|
$20.90 | ||
|
Available to order. Add to View Price |
|||
|
#41050
CAM-BRAKE
41050-1082
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#41051
SEAL,BRAKE CAM
41051-001
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
41053-1089
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#41068A
AXLE,RR
41068-1306
Superseded by 41068-0016
|
$26.02 | ||
|
Available to order. Add to View Price |
|||
|
#41085
INDICATOR
41085-1079
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB
42033-1223
|
$64.70 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR HUB COUPLING,L=29
42036-1292
|
$8.67 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,37T
42041-1548
|
$67.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1193
Superseded by 92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CASTLE,12MM
92015-1870
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6201ZC3/5C
92045-1308
Superseded by 92045-0975
|
$13.49 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL,SC26X42X8
92049-1490
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,DID420MBK
92057-1513
|
$56.04 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT-CHAIN,DRIVE
92058-1073
|
$11.66 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE SHOE
92081-1766
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X34
92151-1209
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,RR AXLE,LH,L=14.8
92152-1405
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,RR AXLE,RH,L=32
92152-1406
|
$11.39 | ||
|
Available to order. Add to View Price |
|||
|
#92152B
COLLAR,REAR BRAKE DRUM,L=58
92152-1409
|
$11.39 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,10X36
92153-1120
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,RR HUB SHOCK
92161-1297
Superseded by 92161-0084
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,10MM
92210-1351
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
