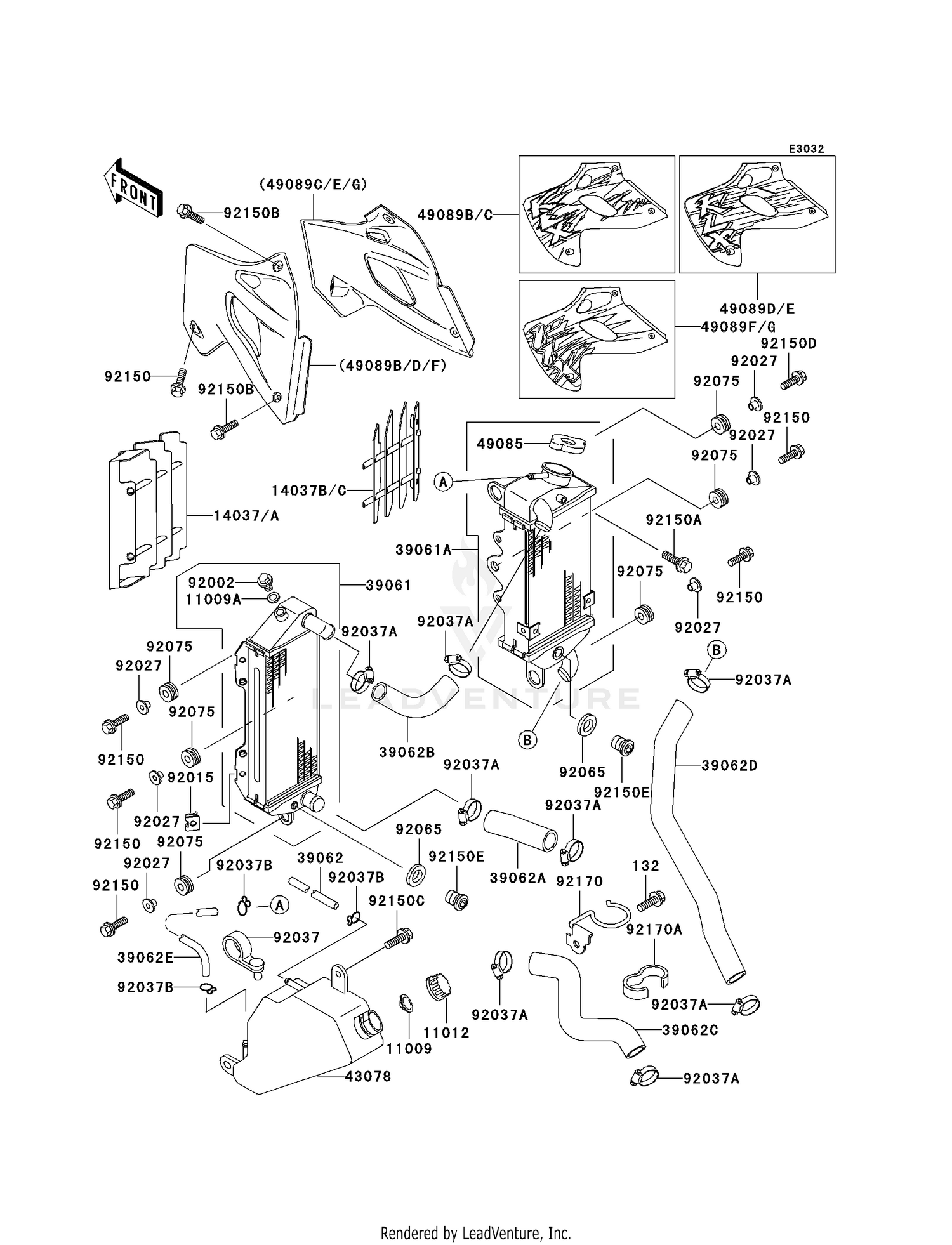

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,DRAIN PLUG
11009-1152
|
$7.29 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#14037A
SCREEN,L.GREEN
14037-1099-6W
|
$26.84 | ||
|
Available to order. Add to View Price |
|||
|
#14037C
SCREEN,RH,L.GREEN
14037-1121-6W
Superseded by 14037-0047-6W
|
$31.05 | ||
|
Available to order. Add to View Price |
|||
|
#39061
RADIATOR-ASSY,LH
39061-1193
|
$670.61 | ||
|
Available to order. Add to View Price |
|||
|
#39061A
RADIATOR-ASSY,RH
39061-1194
Superseded by 39061-1303
|
$1,037.19 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING
39062-1315
Superseded by 39062-1334
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,HEAD-RAD
39062-1535
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,RADIATOR
39062-1536
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,PUMP-CYLINDER
39062-1563
|
$27.70 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,RADIATOR-PUMP
39062-1564
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING
39062-1569
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1140
|
$46.91 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1066
|
$36.13 | ||
|
Available to order. Add to View Price |
|||
|
#49089B
SHROUD-ENGINE,LH,L.GR
49089-5203-6W
|
$135.92 | ||
|
Available to order. Add to View Price |
|||
|
#49089C
SHROUD-ENGINE,RH,L.GR
49089-5204-6W
|
$135.92 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,RADIATOR DRAIN
92002-1682
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=11.1
92027-194
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,SPEED,L=58
92037-1163
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,COOLING HOSE
92037-1589
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP
92037-1712
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1339
Superseded by 92150-1892
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X14
92150-1340
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,6X12
92150-1435
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150C
BOLT
92150-1504
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92150D
BOLT
92150-1507
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92150E
BOLT,10X10
92150-1867
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1357
|
$14.54 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1419
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X10
132J0610
Superseded by 132BB0610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
