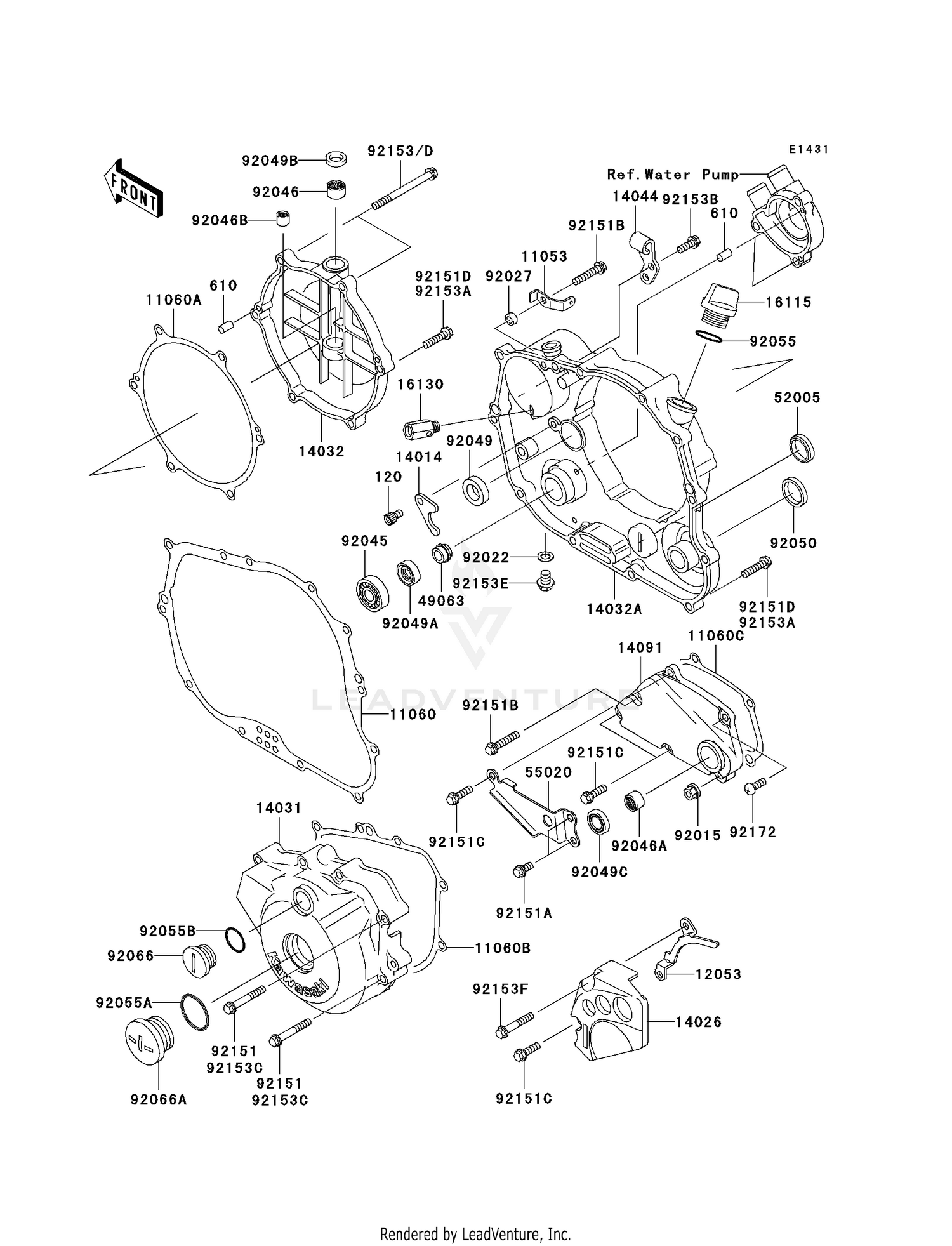

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11053
BRACKET
11053-1656
|
$8.07 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,CLUTCH COVER INNER
11060-1324
Superseded by 11061-1477
|
$39.55 | ||
|
Unavailable |
|||
|
#11060A
GASKET,CLUTCH COVER OUTER
11060-1325
Superseded by 11061-1507
|
$15.30 | ||
|
Unavailable |
|||
|
#11060B
GASKET,GENERATOR COVER
11060-1326
Superseded by 11061-1476
|
$20.03 | ||
|
Unavailable |
|||
|
#11060C
GASKET,TRANSMISSION COVER
11060-1327
Superseded by 11061-1479
|
$13.60 | ||
|
Unavailable |
|||
|
#12053
GUIDE-CHAIN
12053-1337
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION
14014-1062
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-0027
|
$29.27 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-0053
|
$204.95 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH,OUTER
14032-0058
|
$108.45 | ||
|
Available to order. Add to View Price |
|||
|
#14032A
COVER-CLUTCH,INNER
14032-0059
|
$325.65 | ||
|
Available to order. Add to View Price |
|||
|
#14044
HOLDER-CABLE
14044-1078
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,TRANSMISSION
14091-0026
|
$97.20 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1053
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#16130
VALVE-ASSY-RELIEF
16130-1001
|
$39.58 | ||
|
Available to order. Add to View Price |
|||
|
#49063
SEAL-MECHANICAL
49063-1055
|
$19.30 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1009
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,TRANSMISSION COVER
55020-1460
|
$14.41 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1193
Superseded by 92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.2X14X1.0
92022-1488
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.5X10.5X4.5
92027-1885
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6901
92045-1246
|
$28.61 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,HK1312
92046-1148
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE
92046-1230
Superseded by 92046-0042
|
$14.71 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1191
|
$23.54 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,SC 12X22X5
92049-1228
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,AG0353-F0
92049-1262
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL
92049-1559
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#92050
OIL SEAL
92050-078
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-012
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,27.7X2.4
92055-091
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,20X2
92055-1146
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,COVER
92066-1397
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG
92066-1404
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,6X40
92151-1131
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT-FLANGED-SMALL,6X12
92151-1133
Superseded by 132BC0612
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151B
BOLT-FLANGED-SMALL,6X30
92151-1134
Superseded by 132BC0630
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92151C
BOLT-FLANGED-SMALL,6X20
92151-1252
Superseded by 132BC0620
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X10
120P0610
Superseded by 120CA0610
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92151D
BOLT,FLANGED-SMALL,6X25
92151-1930
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT-FLANGED-SMALL,6X70
92153-0018
Superseded by 132BC0670
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,FLANGED-SMALL,6X25
92153-0604
Superseded by 92151-1930
|
$2.72 | ||
|
Unavailable |
|||
|
#92153B
BOLT,6X16
92153-0695
|
$2.98 | ||
|
Available to order. Add to View Price |
|||
|
#92153C
BOLT,6X40
92153-0980
Superseded by 92151-1131
|
$4.72 | ||
|
Unavailable |
|||
|
#92153D
BOLT,FLANGED-SMALL,M6
92153-0981
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#92153E
BOLT,FLANGED,8X10
92153-1342
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#92153F
BOLT,FLANGED,6X35
92153-1351
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X16
92172-0223
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
