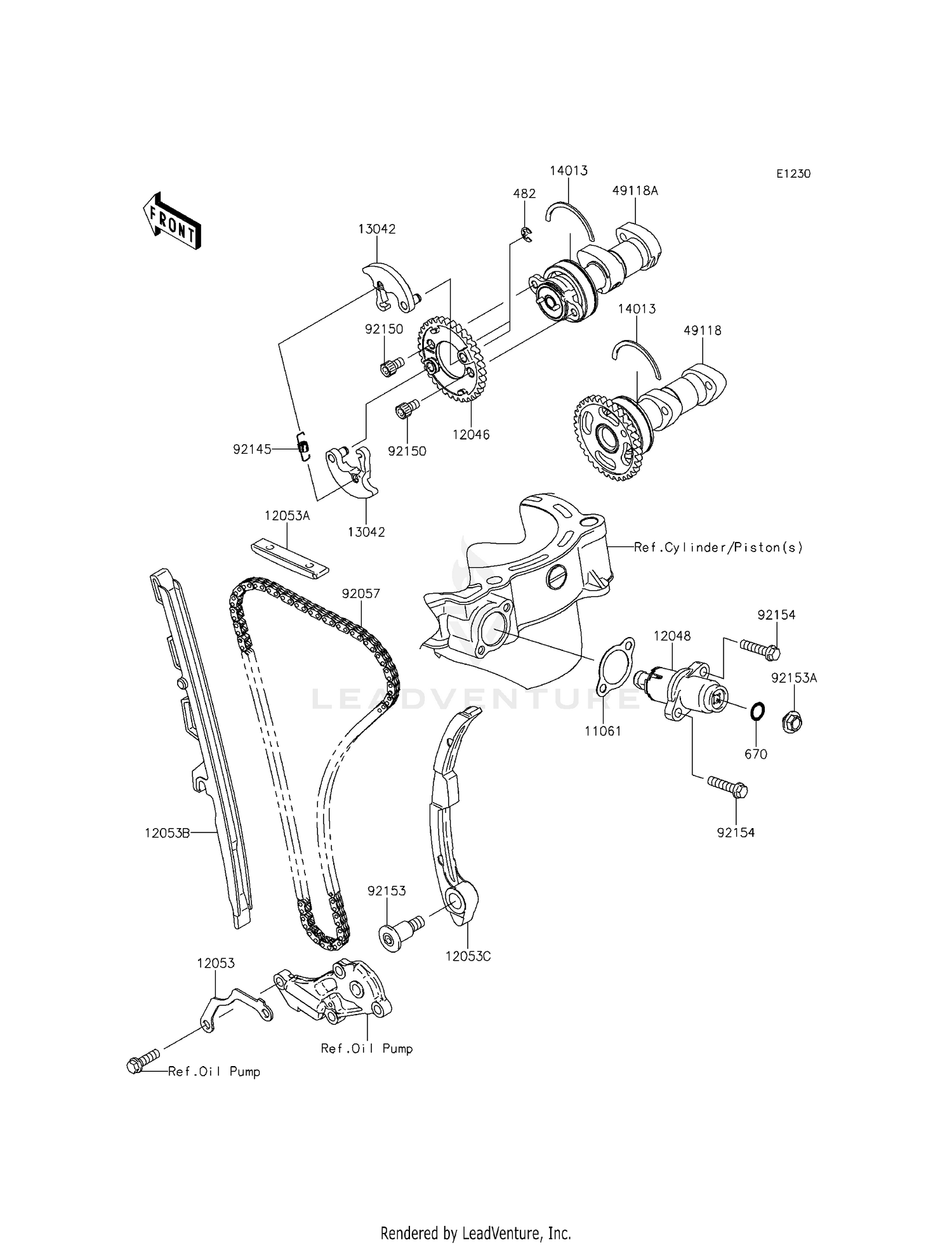

Camshaft(s)/tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#482
CIRCLIP-TYPE-E,5MM
482J5000
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,10MM
670D2010
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET
11061-0260
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#12046
SPROCKET,34T
12046-0043
|
$61.65 | ||
|
Available to order. Add to View Price |
|||
|
#12048
TENSIONER-ASSY
12048-0021
|
$93.35 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN
12053-0031
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#12053A
GUIDE-CHAIN,UPP
12053-0051
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#12053B
GUIDE-CHAIN
12053-0064
|
$44.56 | ||
|
Available to order. Add to View Price |
|||
|
#12053C
GUIDE-CHAIN
12053-0065
|
$66.26 | ||
|
Available to order. Add to View Price |
|||
|
#13042
WEIGHT
13042-0005
|
$36.40 | ||
|
Available to order. Add to View Price |
|||
|
#14013
RING-POSITION
14013-0001
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#49118
CAMSHAFT-COMP,INTAKE
49118-0101
Superseded by 49118-0943
|
$197.87 | ||
|
Available to order. Add to View Price |
|||
|
#49118A
CAMSHAFT-COMP,EXHAUST
49118-0102
Superseded by 49118-0944
|
$252.51 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,98XRH2010-124M
92057-0035
|
$52.91 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0516
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,6X10
92150-1650
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,8X29.5
92153-0717
|
$13.12 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,6X6
92153-1380
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X25
92154-0520
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
