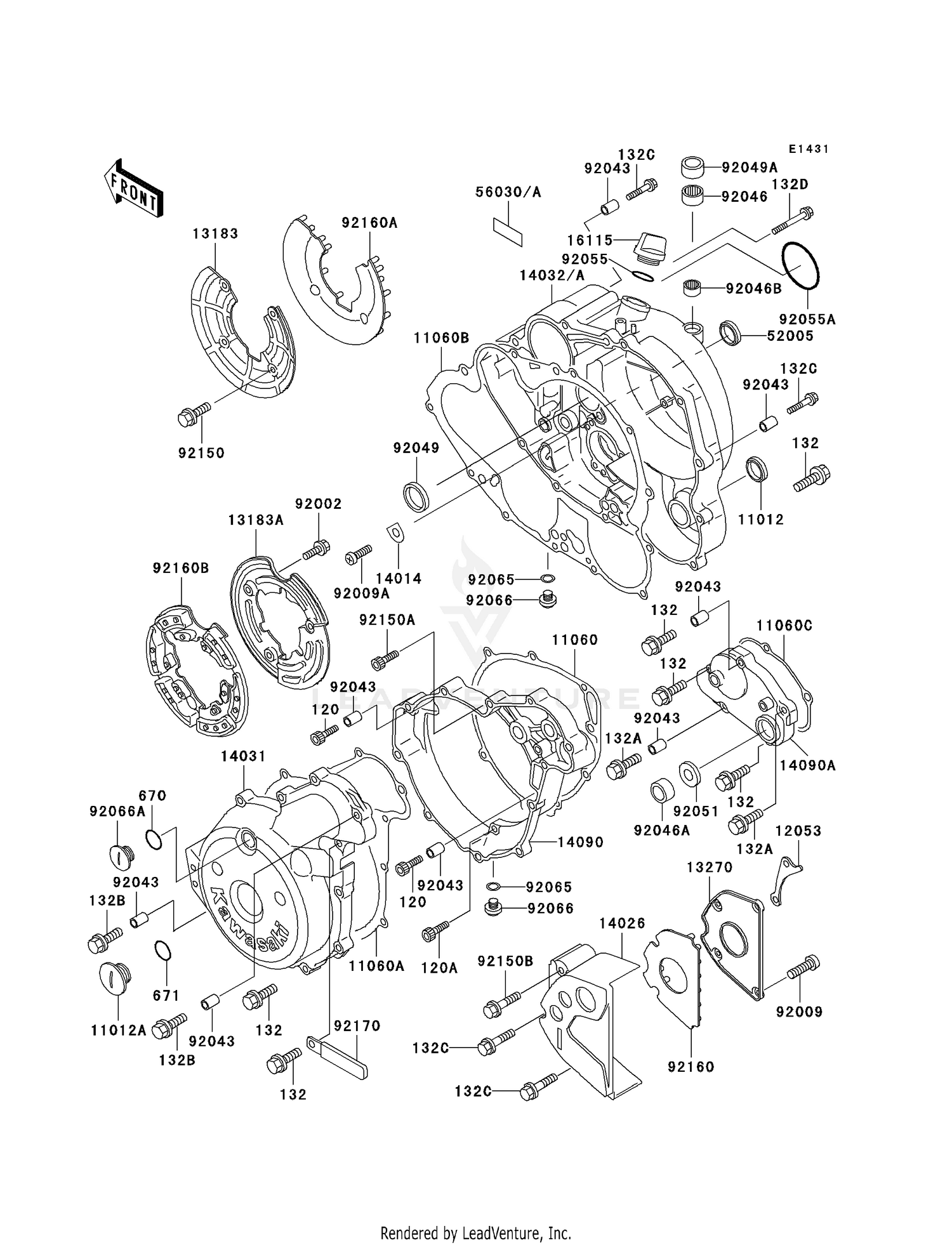

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1567
|
$9.48 | ||
|
Available to order. Add to View Price |
|||
|
#11012A
CAP
11012-1616
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,GENERATOR
11060-1293
|
$24.14 | ||
|
Available to order. Add to View Price |
|||
|
#11060A
GASKET,GENERATOR COVE
11060-1313
|
$31.02 | ||
|
Available to order. Add to View Price |
|||
|
#11060B
GASKET,CLUTCH COVER
11060-1363
Superseded by 11061-1531
|
$38.43 | ||
|
Unavailable |
|||
|
#11060C
GASKET,TRANSMISSION C
11060-1364
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#12053
GUIDE-CHAIN
12053-1334
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE,CLUTCH COVER
13183-1937
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#13183A
PLATE,GENERATOR COVER
13183-1988
|
$13.62 | ||
|
Available to order. Add to View Price |
|||
|
#13270
PLATE,CHAIN COVER
13270-1285
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#14014
PLATE-POSITION,ROD
14014-1116
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#14026
COVER-CHAIN
14026-1195
|
$61.29 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-1274
|
$264.71 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-1358
Superseded by 14032-5022
|
$334.07 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,GENERATOR,INSID
14090-1253
|
$205.39 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,TRANSMISSION
14090-1256
|
$56.04 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-1053
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1057
Superseded by 52005-0071
|
$24.34 | ||
|
Available to order. Add to View Price |
|||
|
#56030
LABEL,OIL
56030-1158
|
$2.82 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X8
92002-1944
Superseded by 92153-0528
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X8
92009-1155
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X10
92009-1563
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,6.2X8X14
92043-1263
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,HK1312
92046-1148
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,6BTM109
92046-1217
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SCY 15X30X7
92049-1158
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,TB12205.5
92049-1271
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92051
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-012
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,62.6X66X3.1
92055-1221
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET-DRAIN PLUG
92065-073
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,12X10
92066-1222
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,DRAIN
92066-1380
|
$5.71 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,5X8
92150-1406
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1654
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT-FLANGED-SMALL,6X40
92150-1830
Superseded by 132BD0640
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,CHAIN COVER
92160-1389
|
$24.37 | ||
|
Available to order. Add to View Price |
|||
|
#120
BOLT-SOCKET,6X35
120P0635
Superseded by 120CA0635
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#120A
BOLT-SOCKET
120Z0625
Superseded by 120CD0625
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X25
132Y0625
Superseded by 132BD0625
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X30
132Y0630
Superseded by 132BD0630
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X35
132Y0635
Superseded by 132BD0635
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#132C
BOLT-FLANGED-SMALL,6X40
132Y0640
Superseded by 132BD0640
|
$5.08 | ||
|
Unavailable |
|||
|
#132D
BOLT-FLANGED-SMALL
132Y0680
Superseded by 132BD0680
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,18MM
670B2018
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,40MM
671B2540
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER,CLUTCH COVER
92160-1390
|
$32.06 | ||
|
Available to order. Add to View Price |
|||
|
#92160B
DAMPER,GENERATOR COVE
92160-1411
|
$32.23 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1514
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
