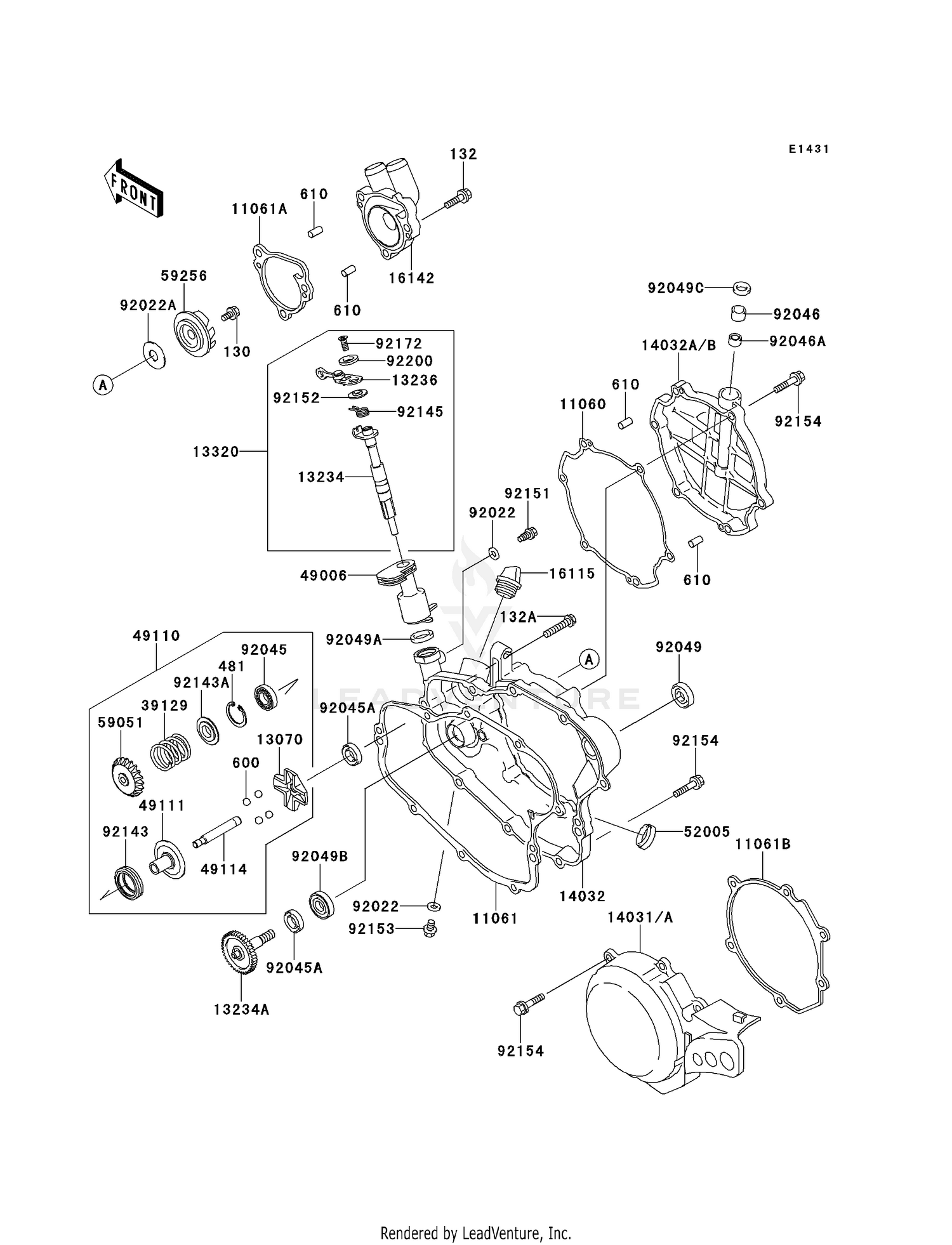

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11060
GASKET,CLUTCH COVER
11060-1795
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,CLUTCH COVER
11061-0122
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,PUMP COVER
11061-0184
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#11061B
GASKET,GENERATOR COVER
11061-0194
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,GOVERNOR
13070-1309
|
$51.29 | ||
|
Available to order. Add to View Price |
|||
|
#13234
SHAFT-COMP
13234-0008
Superseded by 13234-0625
|
$58.56 | ||
|
Unavailable |
|||
|
#13234A
SHAFT-COMP,WATER PUMP
13234-1103
|
$68.74 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP
13236-0023
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#13320
LEVER-ASSY
13320-0002
Superseded by 13320-0581
|
$66.38 | ||
|
Unavailable |
|||
|
#14031
COVER-GENERATOR
14031-0108
|
$73.34 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH,INSIDE
14032-0041
|
$204.13 | ||
|
Available to order. Add to View Price |
|||
|
#14032A
COVER-CLUTCH,OUTSIDE
14032-0134
|
$82.96 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-018
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP,WATER
16142-1144
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#39129
SPRING-GOVERNOR
39129-1022
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,GOVERNOR
49006-1313
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#49110
GOVERNOR-ASSY
49110-0010
Superseded by 49110-0014
|
$160.83 | ||
|
Available to order. Add to View Price |
|||
|
#49111
HOLDER-GOVERNOR WEIGHT
49111-1064
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#49114
SHAFT-GOVERNOR
49114-0005
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-0019
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR
59051-1412
|
$28.79 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-1064
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-0010
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,608MC3
92045-1305
Superseded by 92045-1497
|
$11.93 | ||
|
Unavailable |
|||
|
#92046
BEARING-NEEDLE
92046-1160
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,6BTM109
92046-1217
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SB16244
92049-002
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,AG0353-F0
92049-1262
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,MHSD8X18X10J-1
92049-1366
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,BG1408F0
92049-1414
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1932
Superseded by 92152-2327
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1933
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING
92145-0089
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X11
92151-1180
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,LEVER
92152-0085
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT-FLANGED,6X8
92153-1005
Superseded by 130AA0608
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X10
130CA0510
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132BC0620
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X30
132BC0630
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,24MM
481J2400
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,5/16
600A1000
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X25
92154-0520
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X14
92172-0087
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,LEVER
92200-0040
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
