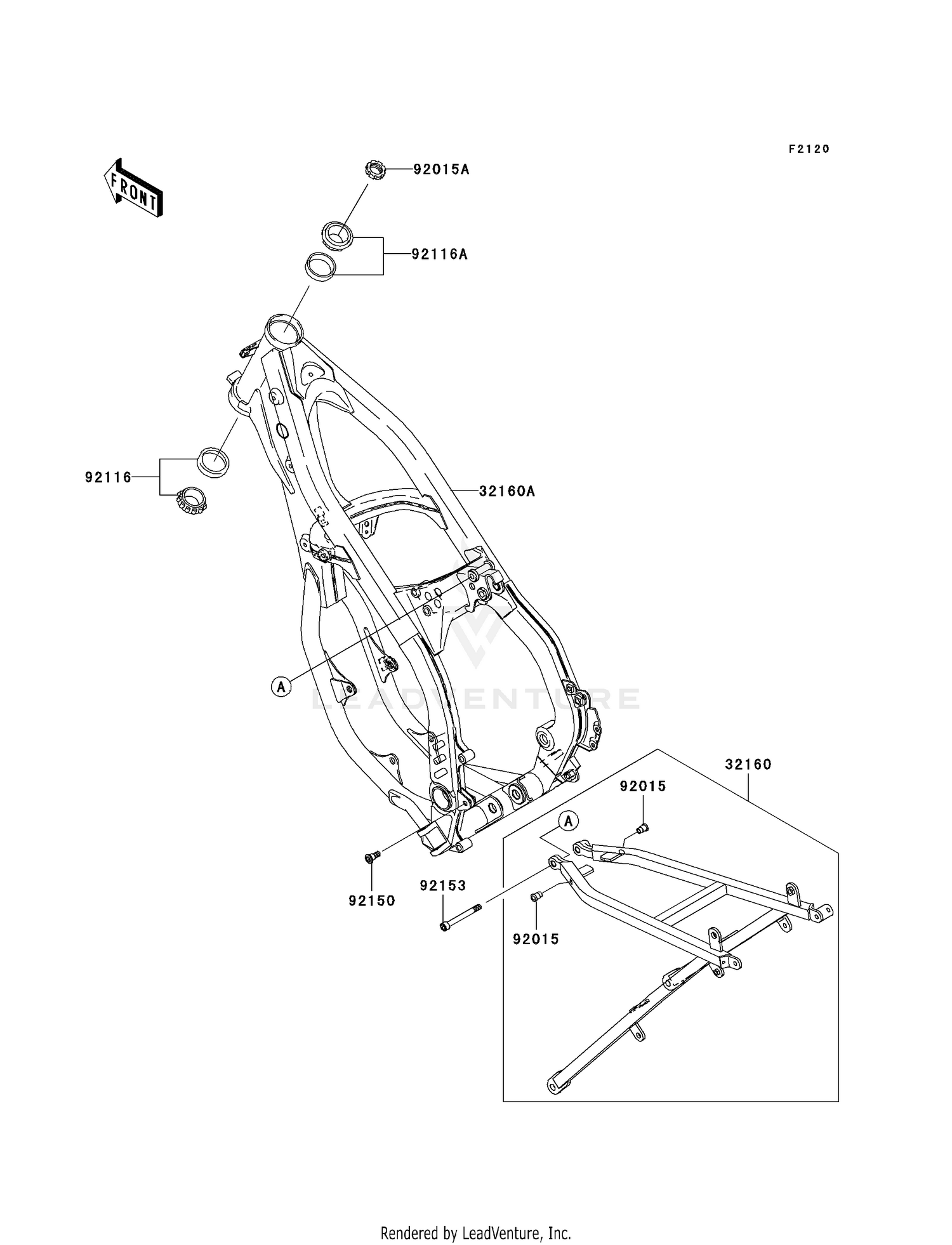

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#32160
FRAME-COMP,RR
32160-0068
Superseded by 32160-0164
|
$815.61 | ||
|
Available to order. Add to View Price |
|||
|
#32160A
FRAME-COMP,FR,P.SILVE
32160-0071-458
|
$1,392.41 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,POP,6MM,L=15
92015-1791
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,STEERING STEM,28MM
92015-1861
|
$17.50 | ||
|
Available to order. Add to View Price |
|||
|
#92116
BEARING-ROLLER,HI-CAP32006JRRS
92116-1069
|
$62.01 | ||
|
Available to order. Add to View Price |
|||
|
#92116A
BEARING-ROLLER,HI-CAP320/28JRR
92116-1076
|
$49.62 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,SOCKET,8X20
92150-1839
Superseded by 92153-1621
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X74
92153-1124
|
$4.12 | ||
|
Unavailable |
|||
