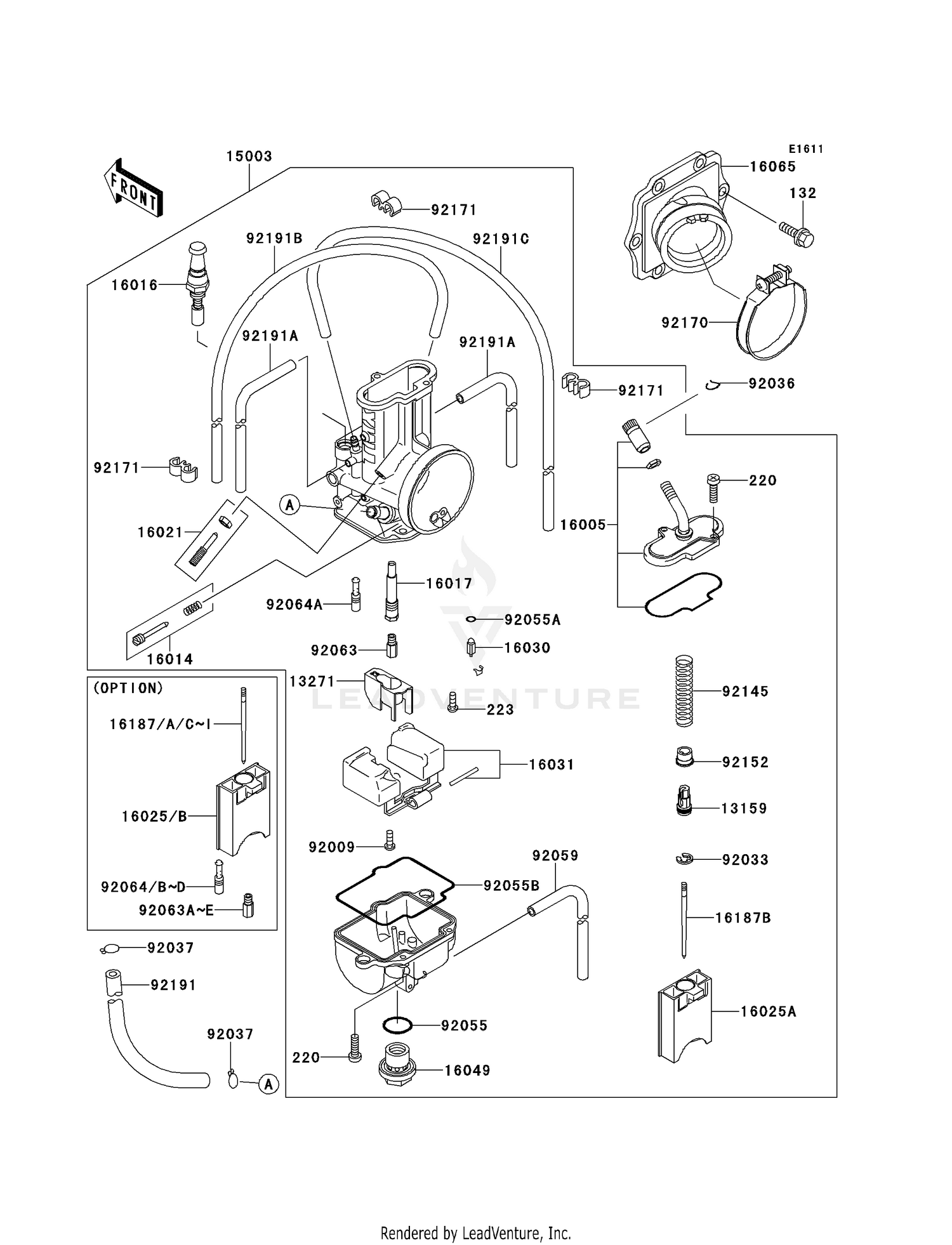

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13159
CONNECTOR,THROTTLE CA
13159-1067
|
$19.84 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE,FLOAT
13271-1646
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1598
|
$529.33 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER
16005-1088
|
$53.81 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1115
|
$22.31 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1116
|
$36.53 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE,S-4
16017-1427
|
$41.52 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1237
|
$18.72 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA5.0
16025-1221
|
$100.98 | ||
|
Available to order. Add to View Price |
|||
|
#16025A
VALVE-THROTTLE,CA5.5
16025-1222
|
$94.63 | ||
|
Available to order. Add to View Price |
|||
|
#16025B
VALVE-THROTTLE,CA6.0
16025-1223
|
$100.98 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1096
|
$55.74 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1106
|
$49.23 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1052
|
$29.57 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1373
|
$84.54 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET,6BEF16-67
16187-1164
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187A
NEEDLE-JET,6BEF17-68
16187-1165
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187B
NEEDLE-JET,6BEF16-69
16187-1166
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187C
NEEDLE-JET,6BEF16-70
16187-1167
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187D
NEEDLE-JET,6BEF16-71
16187-1168
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187E
NEEDLE-JET,6BEF17-67
16187-1169
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187F
NEEDLE-JET,6BEF16-68
16187-1170
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187G
NEEDLE-JET,6BEF17-69
16187-1171
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187H
NEEDLE-JET,6BEF17-70
16187-1172
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#16187I
NEEDLE-JET,6BEF17-71
16187-1173
|
$30.67 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,FLOAT VALVE
92009-1853
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1299
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,MAIN JET COVER
92055-1061
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X12
220D0412
Superseded by 220AA0412
|
$0.21 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X8
223B0408
Superseded by 223AA0408
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING
92055-1105
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,FLOAT CHAMBER
92055-1659
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE, 3X5X475
92059-1490
Superseded by 92059-1655
|
$8.87 | ||
|
Unavailable |
|||
|
#92063
MAIN JET NO 360A
92063-032
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN NO 370A
92063-033
|
$15.37 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN NO 380A
92063-034
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
MAIN JET NO 340A
92063-049
|
$15.37 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN NO 350A
92063-050
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#410
92063-1472
|
$17.00 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#45
92064-1218
|
$18.28 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#50
92064-1220
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#55
92064-1222
|
$14.94 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT,#47.5
92064-1227
|
$14.94 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT,#52.5
92064-1228
|
$14.94 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,THROTTLE VALVE
92145-1401
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,THROTTLE VALVE
92152-1305
|
$25.54 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1686
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1355
|
$22.17 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,5.8X10.8X165
92191-1532
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE
92191-1604
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92191B
TUBE,3.5X6.5X650
92191-1606
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#92191C
TUBE,3.5X6.5X630
92191-1607
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
