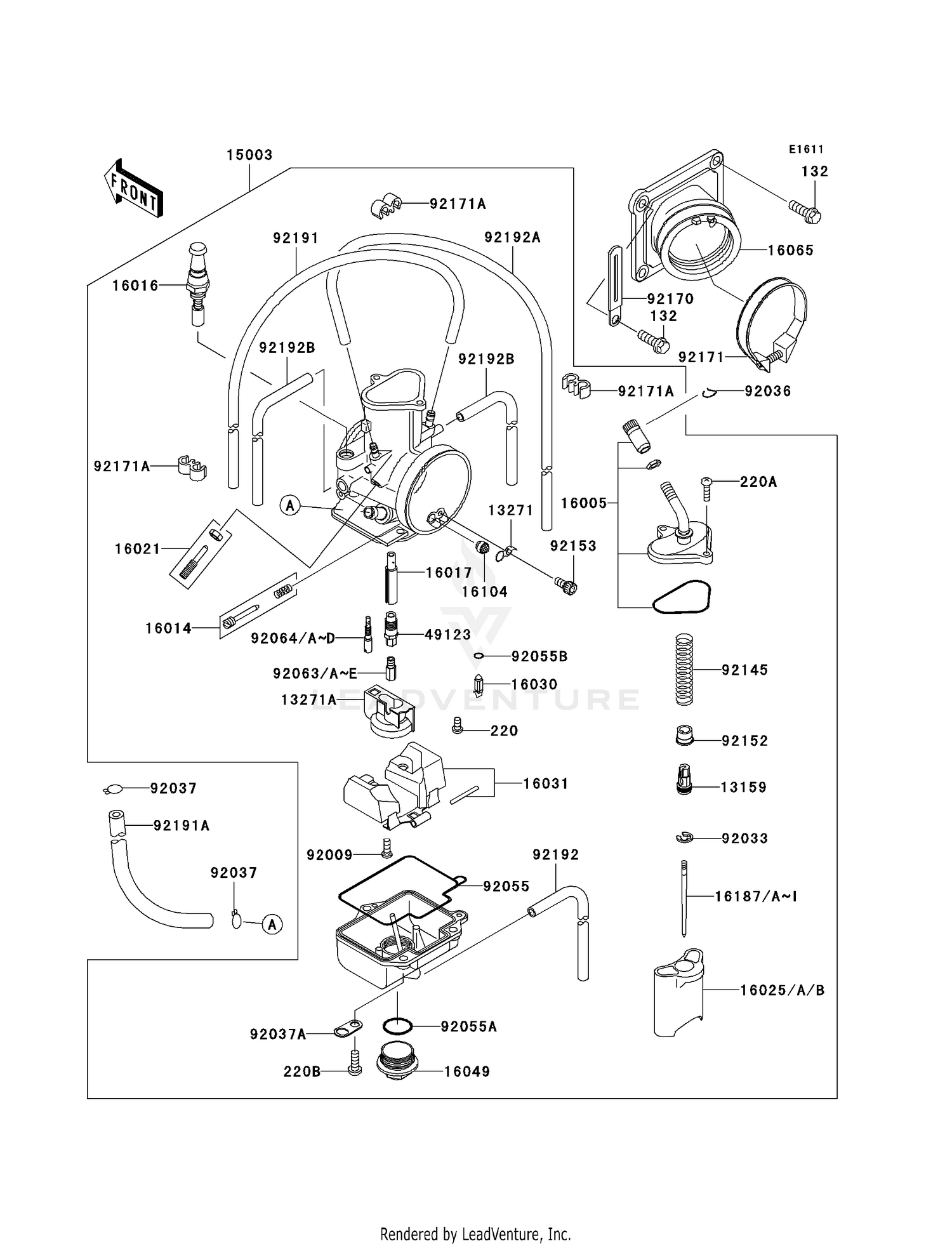

2004 Kawasaki KX 125 CARBURETOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13159
CONNECTOR,THROTTLE CA
13159-1067
|
$19.13 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE
13271-0020
|
$6.44 | ||
|
Available to order. Add to View Price |
|||
|
#13271A
PLATE
13271-0021
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-0010
|
$600.04 | ||
|
Available to order. Add to View Price |
|||
|
#16005
TOP-CHAMBER
16005-0002
|
$55.71 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1115
|
$21.68 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-0001
|
$43.45 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE,S-9
16017-0001
|
$28.58 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1237
|
$18.19 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA5.5
16025-0002
|
$118.78 | ||
|
Available to order. Add to View Price |
|||
|
#16025A
VALVE-THROTTLE,CA 5.7
16025-0003
|
$118.78 | ||
|
Available to order. Add to View Price |
|||
|
#16025B
VALVE-THROTTLE,CA6.0
16025-0004
|
$118.78 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1096
|
$54.17 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT,ASSY
16031-0003
|
$68.01 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-0001
|
$36.85 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-0010
|
$73.28 | ||
|
Available to order. Add to View Price |
|||
|
#16104
FILTER-COMP
16104-0001
|
$14.59 | ||
|
Available to order. Add to View Price |
|||
|
#16187
NEEDLE-JET,6CHJ10-80
16187-0001
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187A
NEEDLE-JET,6CHJ10-81
16187-0002
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187B
NEEDLE-JET,6CHJ10-82
16187-0003
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187C
NEEDLE-JET,6CHJ10-83
16187-0004
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187D
NEEDLE-JET,6CHJ10-84
16187-0005
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187E
NEEDLE-JET,6CHJ11-80
16187-0006
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187F
NEEDLE-JET,6CHJ11-81
16187-0007
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187G
NEEDLE-JET
16187-0008
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187H
NEEDLE-JET,6CHJ11-83
16187-0009
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#16187I
NEEDLE-JET,6CHJ11-84
16187-0010
|
$37.50 | ||
|
Available to order. Add to View Price |
|||
|
#49123
HOLDER-MAIN JET
49123-0001
|
$48.74 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,FLOAT VALVE
92009-1853
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1299
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X18
132G0618
Superseded by 132BA0618
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220D0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.28 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS,5X14
220D0514
Superseded by 220AA0514
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-018
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-147
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1474
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FLOAT CHAMBER
92055-0001
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
0 RING
92055-1076
|
$9.87 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
0 RING
92055-1105
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,MJ#470
92063-0001
|
$18.64 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
MAIN JET NO 400A
92063-035
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#410
92063-1472
|
$16.52 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#420
92063-1473
|
$16.52 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#430
92063-1474
|
$16.52 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#440
92063-1475
|
$16.52 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#35
92064-1214
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#37.5
92064-1215
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#40
92064-1216
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT,#42.5
92064-1217
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT,#45
92064-1218
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,THROTTLE VALVE
92145-1401
|
$4.08 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,THROTTLE VALVE
92152-1305
|
$24.59 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-0025
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1514
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1105
|
$13.55 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-1355
|
$21.34 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,3.5X6.5X650
92191-0002
|
$13.42 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE,FUEL PIPE
92191-1723
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,3X5X360
92192-0086
|
$13.57 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,3.5X6.5X590
92192-0087
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE,3.5X6.5X430
92192-0088
|
$15.58 | ||
|
Available to order. Add to View Price |
|||
