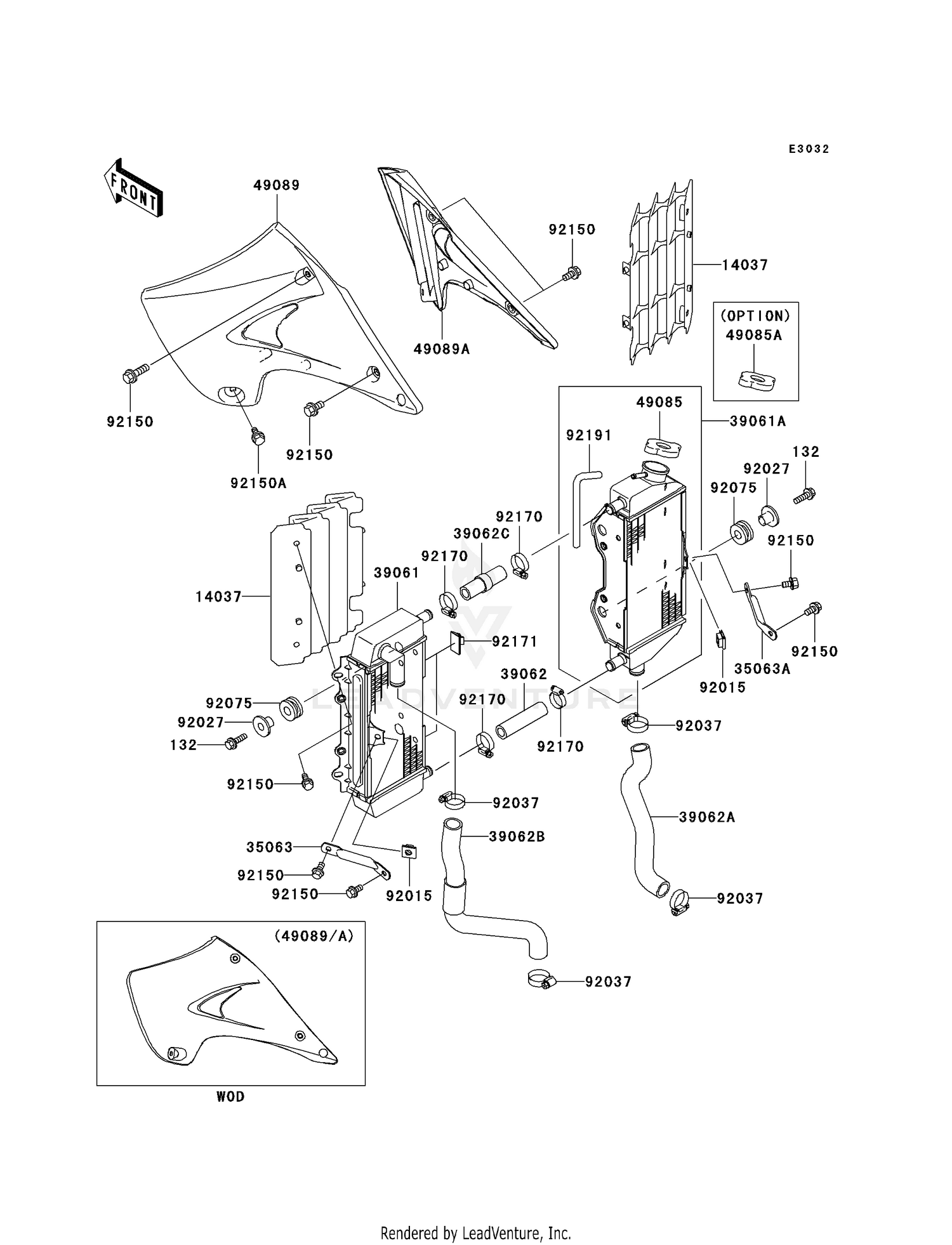

2003 Kawasaki KX 125 RADIATOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN
14037-1310-RZ
|
$25.88 | ||
|
Available to order. Add to View Price |
|||
|
#35063
STAY,LH
35063-1226
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#35063A
STAY,RH
35063-1227
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#39061
RADIATOR-ASSY,LH
39061-1309
Superseded by 39061-0012
|
$408.97 | ||
|
Available to order. Add to View Price |
|||
|
#39061A
RADIATOR-ASSY,RH
39061-1311
Superseded by 39061-0013
|
$437.83 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,RADIATOR
39062-1898
|
$8.86 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,RADIATOR
39062-1899
|
$25.97 | ||
|
Unavailable |
|||
|
#39062B
HOSE-COOLING,HEAD RAD
39062-1900
|
$39.02 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING,RADIATOR
39062-1925
Superseded by 39062-0044
|
$8.44 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE,P1.1
49085-1070
|
$48.56 | ||
|
Available to order. Add to View Price |
|||
|
#49085A
CAP-ASSY-PRESSURE
49085-1073
|
$48.56 | ||
|
Available to order. Add to View Price |
|||
|
#49089
SHROUD-ENGINE,LH,L.GR
49089-1150-6W
|
$77.23 | ||
|
Available to order. Add to View Price |
|||
|
#49089A
SHROUD-ENGINE,RH,L.GR
49089-1151-6W
|
$77.23 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=11.1
92027-194
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,COOLING HOSE
92037-1589
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1435
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X20
92150-1801
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1283
Superseded by 92173-1401
|
$13.34 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,10
92171-0012
|
$6.95 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE,6X9X700
92191-1211
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
