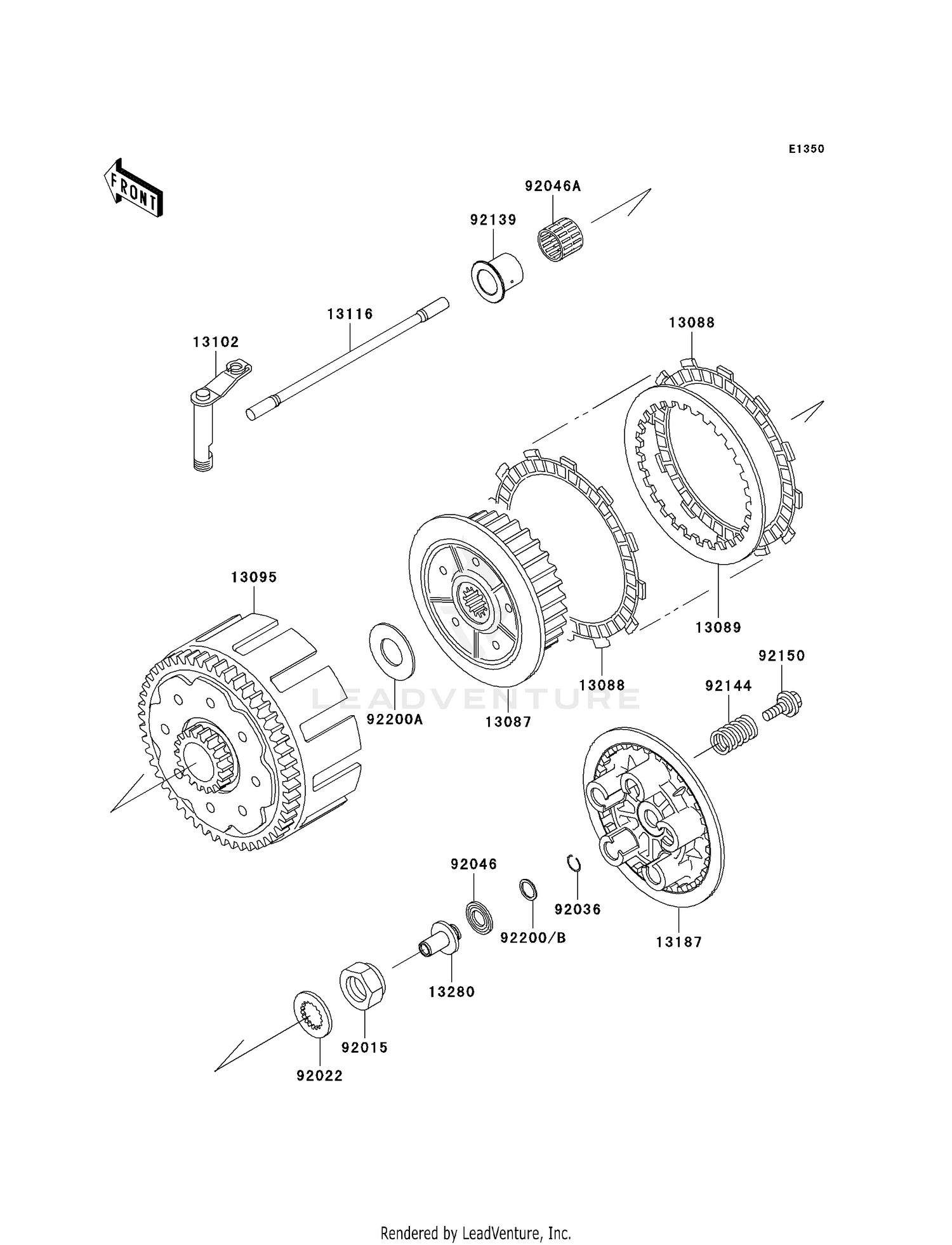

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13087
HUB-CLUTCH
13087-1168
|
$126.65 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1089
|
$16.85 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH
13089-1066
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1419
|
$425.59 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1154
|
$57.37 | ||
|
Unavailable |
|||
|
#13116
ROD-PUSH
13116-1172
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1090
|
$84.73 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER,CLUTUCH RELEAS
13280-1284
|
$31.57 | ||
|
Unavailable |
|||
|
#92015
NUT,20MM
92015-1725
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1942
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP,PISTON PIN
92036-007
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,FNTA-1326
92046-1190
|
$10.93 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,K30X30
92046-1304
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#92139
BUSHING
92139-1100
|
$34.07 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,CLUTCH
92144-1351
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,CLUTCH
92150-1489
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,13.4X25X1.0
92200-0045
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,22.5X47X2
92200-1143
|
$12.97 | ||
|
Available to order. Add to View Price |
|||
|
#92200B
WASHER,13.4X25.0X1.5
92200-1548
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
