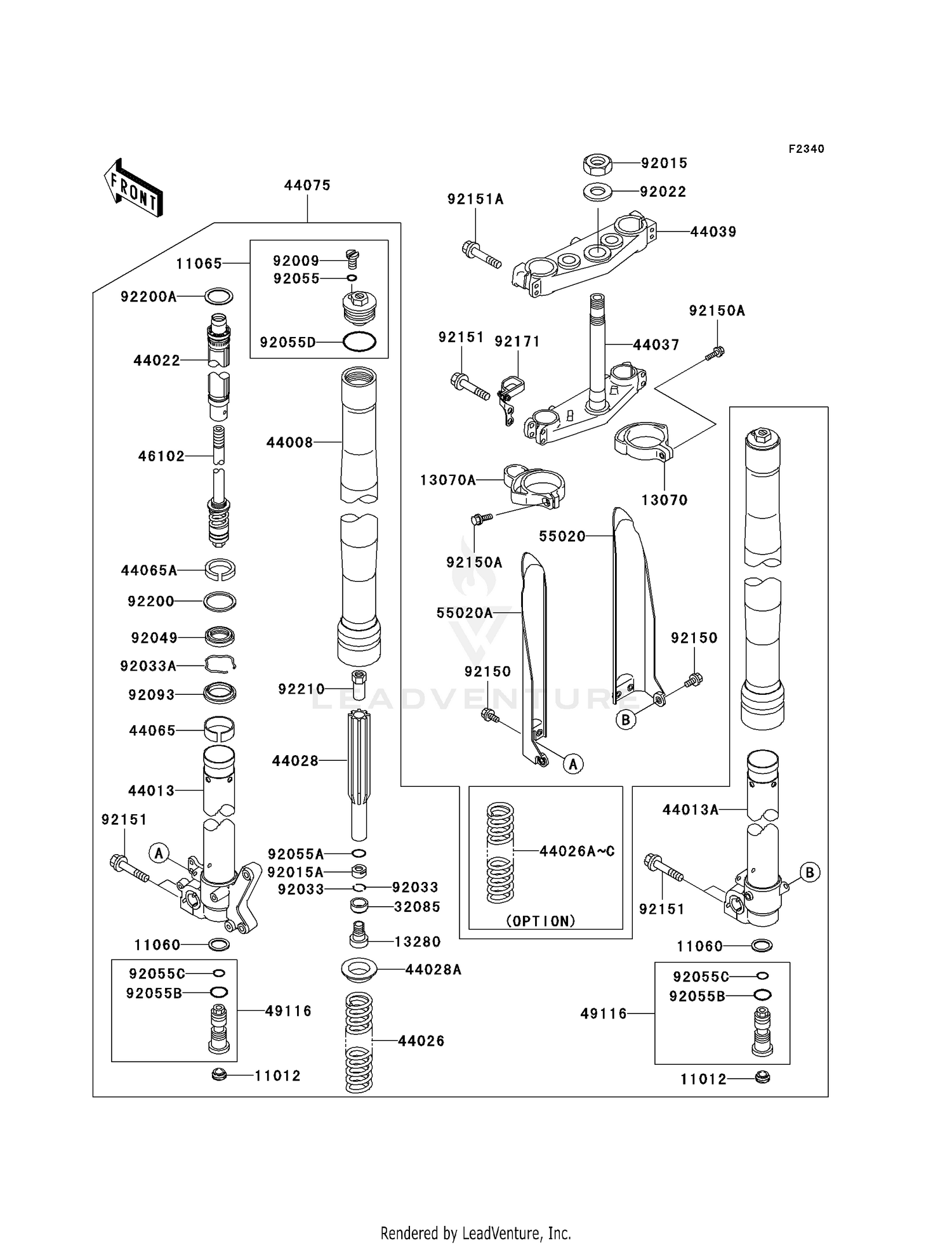

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
11012-1692
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET
11060-1707
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP
11065-1223
|
$115.70 | ||
|
Unavailable |
|||
|
#13070
GUIDE,PROTECTOR,RH,WH
13070-1290-RZ
|
$29.23 | ||
|
Available to order. Add to View Price |
|||
|
#13070A
GUIDE,PROTECTOR,LH,WH
13070-1329-RZ
|
$20.93 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER
13280-1127
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#32085
STOPPER
32085-1323
|
$19.32 | ||
|
Available to order. Add to View Price |
|||
|
#44008
PIPE-FORK OUTER,A.N.G
44008-1055-14
|
$550.34 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER,LH
44013-1497
|
$375.28 | ||
|
Available to order. Add to View Price |
|||
|
#44013A
PIPE-FORK INNER,RH
44013-1498
|
$375.28 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1345
|
$487.66 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,K=0
44026-1749
|
$81.67 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,K=0
44026-1758
|
$81.67 | ||
|
Available to order. Add to View Price |
|||
|
#44026B
SPRING-FRONT FORK,K=0
44026-1760
|
$81.67 | ||
|
Available to order. Add to View Price |
|||
|
#44026C
SPRING-FRONT FORK,K=0
44026-1761
|
$81.67 | ||
|
Available to order. Add to View Price |
|||
|
#44028
GUIDE-FORK SPRING
44028-1103
|
$39.97 | ||
|
Available to order. Add to View Price |
|||
|
#44028A
GUIDE-FORK SPRING
44028-1104
|
$17.85 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1430
|
$568.93 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1322
|
$231.17 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK
44065-1140
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1141
|
$23.32 | ||
|
Available to order. Add to View Price |
|||
|
#44075
DAMPER-SET-FORK,A.N.G
44075-1169-14
|
$2,362.56 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,INNER
46102-1461
|
$892.03 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY,FORK
49116-1198
|
$184.88 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK,RH,WHITE
55020-1493-RZ
|
$57.77 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,FORK,LH,WHITE
55020-1554-RZ
|
$57.77 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1884
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,24M/M
92015-1057
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT
92015-1805
|
$24.31 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,25X36X2.3
92022-250
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1271
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP
92033-1329
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1599
|
$25.47 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,2.8X6.6X1.9
92055-1441
|
$2.87 | ||
|
Unavailable |
|||
|
#92055A
RING-O
92055-1442
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,FORK VALVE
92055-1547
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,FORK VALVE
92055-1548
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#92055D
RING-O
92055-1677
|
$9.43 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1566
|
$20.00 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1435
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,5X16
92150-1802
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT-FLANGED-SMALL,8X40
92151-1877
Superseded by 132BA0840
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT-FLANGED-SMALL,8X35
92151-1878
Superseded by 132BA0835
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP,HOSE
92171-1338
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1615
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER
92200-1616
|
$10.51 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT
92210-1177
|
$24.27 | ||
|
Available to order. Add to View Price |
|||
