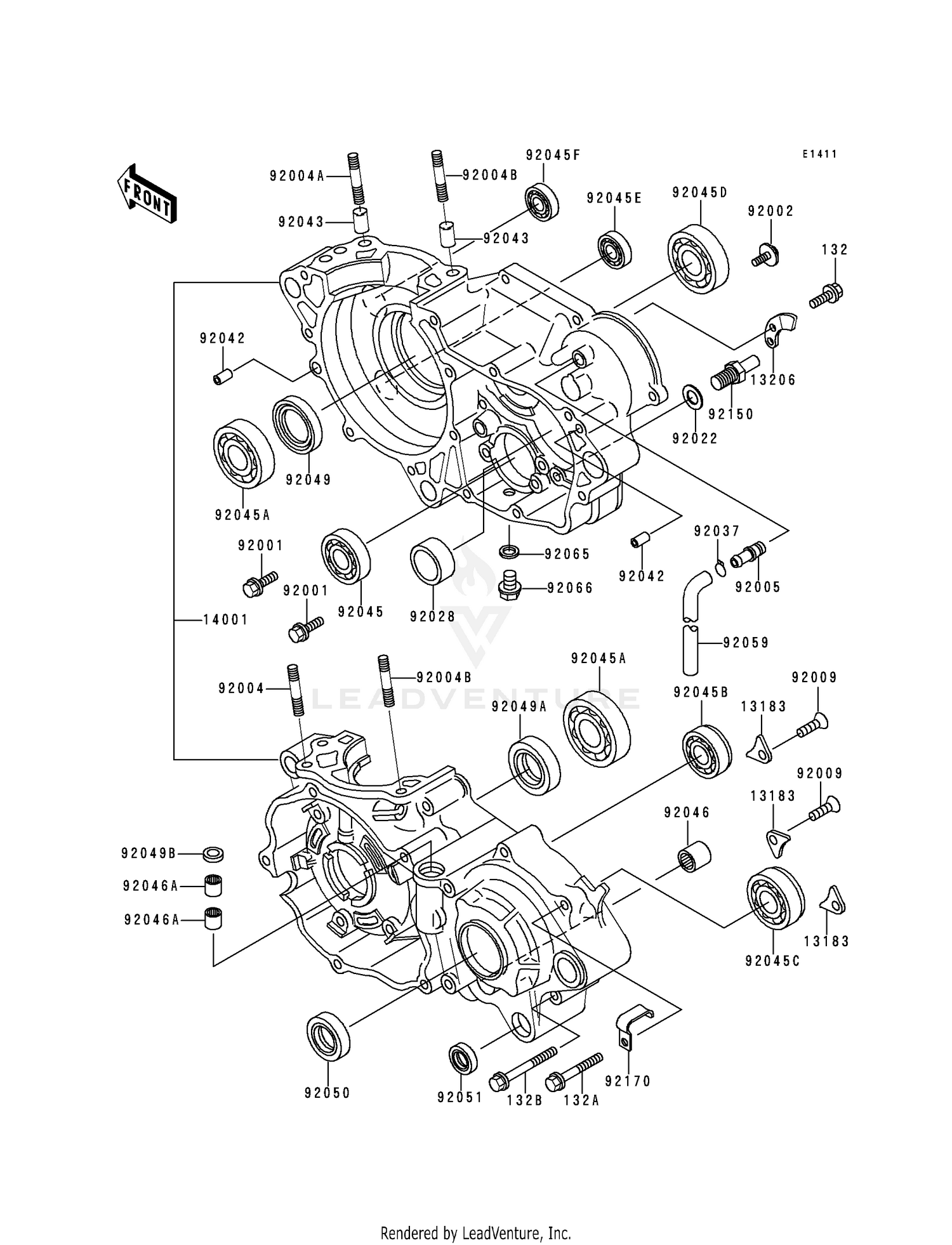

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#132
BOLT-FLANGED-SMALL,6X16
132G0616
Superseded by 132BA0616
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X45
132G0645
Superseded by 132BA0645
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X75
132G0675
Superseded by 132BA0675
|
$4.52 | ||
|
Available to order. Add to View Price |
|||
|
#13183
PLATE
13183-1182
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#13206
GUIDE-KICK
13206-1062
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#14001
SET-CRANKCASE
14001-5336
|
$642.35 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,W/WASHER,6X14
92001-1829
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X16
92002-1659
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X47
92004-1160
Superseded by 92004-1223
|
$12.34 | ||
|
Available to order. Add to View Price |
|||
|
#92004A
STUD,10X53
92004-1165
|
$9.68 | ||
|
Available to order. Add to View Price |
|||
|
#92004B
STUD,10X67
92004-1203
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1210
|
$13.22 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X10
92009-1563
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,10.2X18X1.0,SK5
92022-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,26X35X14
92028-131
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1610
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#92042
PIN,DOWEL,6.3X8X14
92042-007
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,11X14X12.3
92043-1266
|
$1.06 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,6905Z
92045-1058
|
$32.45 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,TMB3/28J
92045-1183
|
$46.66 | ||
|
Available to order. Add to View Price |
|||
|
#92045B
BEARING-BALL
92045-1233
Superseded by 92045-0013
|
$30.83 | ||
|
Available to order. Add to View Price |
|||
|
#92045C
BEARING-BALL
92045-1240
|
$55.07 | ||
|
Available to order. Add to View Price |
|||
|
#92045D
BEARING-BALL,63/22/25
92045-1300
|
$35.60 | ||
|
Available to order. Add to View Price |
|||
|
#92045E
BEARING-BALL,626MC3
92045-1304
|
$11.46 | ||
|
Available to order. Add to View Price |
|||
|
#92045F
BEARING-BALL,608MC3
92045-1305
Superseded by 92045-1497
|
$11.93 | ||
|
Unavailable |
|||
|
#92046
BRG,N,7E-HK1412
92046-037
|
$20.91 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,HK1210FM
92046-1010
Superseded by 92046-0034
|
$15.07 | ||
|
Available to order. Add to View Price |
|||
|
#92049
OIL SEAL,TCJ25457
92049-1051
|
$35.38 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
OIL SEAL,TCJ20407
92049-1052
|
$30.53 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,AG0353-F0
92049-1262
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92050
OIL SEAL TB3040
92050-033
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#92051
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE
92059-103
Superseded by 92059-1939
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN
92066-1388
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,RETURN SPRING
92150-1803
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1555
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
