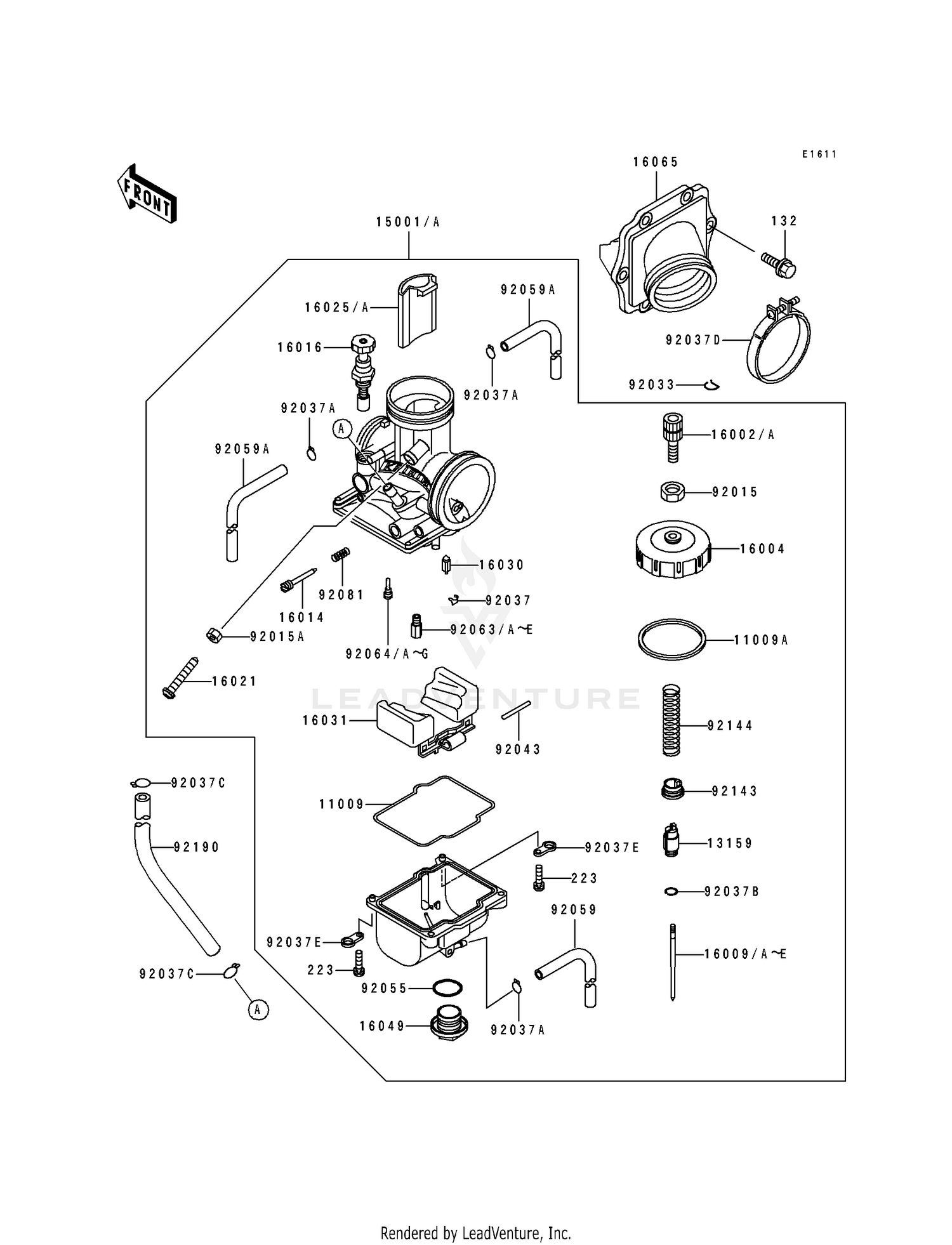

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT CHAMBER
11009-1716
|
$14.70 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,CHAMBER CAP
11009-1717
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE CA
13159-1063
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1755
|
$507.97 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER-CABLE
16002-1057
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-CHAMBER
16004-1070
|
$69.38 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,NOLZ
16009-1694
|
$34.68 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,NOLA
16009-1695
|
$34.68 | ||
|
Available to order. Add to View Price |
|||
|
#16009B
NEEDLE-JET,NOLB
16009-1696
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#16009C
NEEDLE-JET,NOLC
16009-1697
|
$34.68 | ||
|
Available to order. Add to View Price |
|||
|
#16009D
NEEDLE-JET,NOLD
16009-1698
|
$34.68 | ||
|
Available to order. Add to View Price |
|||
|
#16009E
NEEDLE-JET,NOPZ
16009-1699
|
$31.29 | ||
|
Available to order. Add to View Price |
|||
|
#16009F
NEEDLE-JET,NOPA
16009-1700
|
$31.29 | ||
|
Available to order. Add to View Price |
|||
|
#16009G
NEEDLE-JET,NOPB
16009-1701
|
$31.29 | ||
|
Available to order. Add to View Price |
|||
|
#16009H
NEEDLE-JET,NOPC
16009-1702
|
$34.68 | ||
|
Available to order. Add to View Price |
|||
|
#16009I
NEEDLE-JET,NOPD
16009-1703
|
$34.68 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1058
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1075
|
$39.13 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1124
|
$24.82 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE,CA7
16025-1163
|
$167.61 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1057
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1067
|
$57.64 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1051
|
$32.02 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1168
|
$129.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,THROTTLE STOP SCR
92015-1707
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,CABLE ADJUST LOCK
92015-1772
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1396
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,JET NEEDLE
92037-1401
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP,55MM
92037-1486
|
$8.36 | ||
|
Available to order. Add to View Price |
|||
|
#92037D
CLAMP,HOSE
92037-1969
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,MAIN JET COVER
92055-1167
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,3.5X6.5X390
92059-1897
Superseded by 92059-1899
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,4X7X360
92059-1898
Superseded by 92059-1941
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#158
92063-1367
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#160
92063-1368
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#162
92063-1369
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#165
92063-1370
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN
92063-1371
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#182
92063-1377
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#52
92064-1130
|
$18.37 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#55
92064-1145
|
$18.37 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT
92064-1146
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT
92064-1147
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT
92064-1148
|
$19.25 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,ADJUST SCREW
92081-1555
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,THROTTLE VALVE
92143-1201
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,THROTTLE VALVE
92144-1305
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,2.5X5.8X270
92190-1292
Superseded by 92059-3731
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223C0416
Superseded by 223AB0416
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
