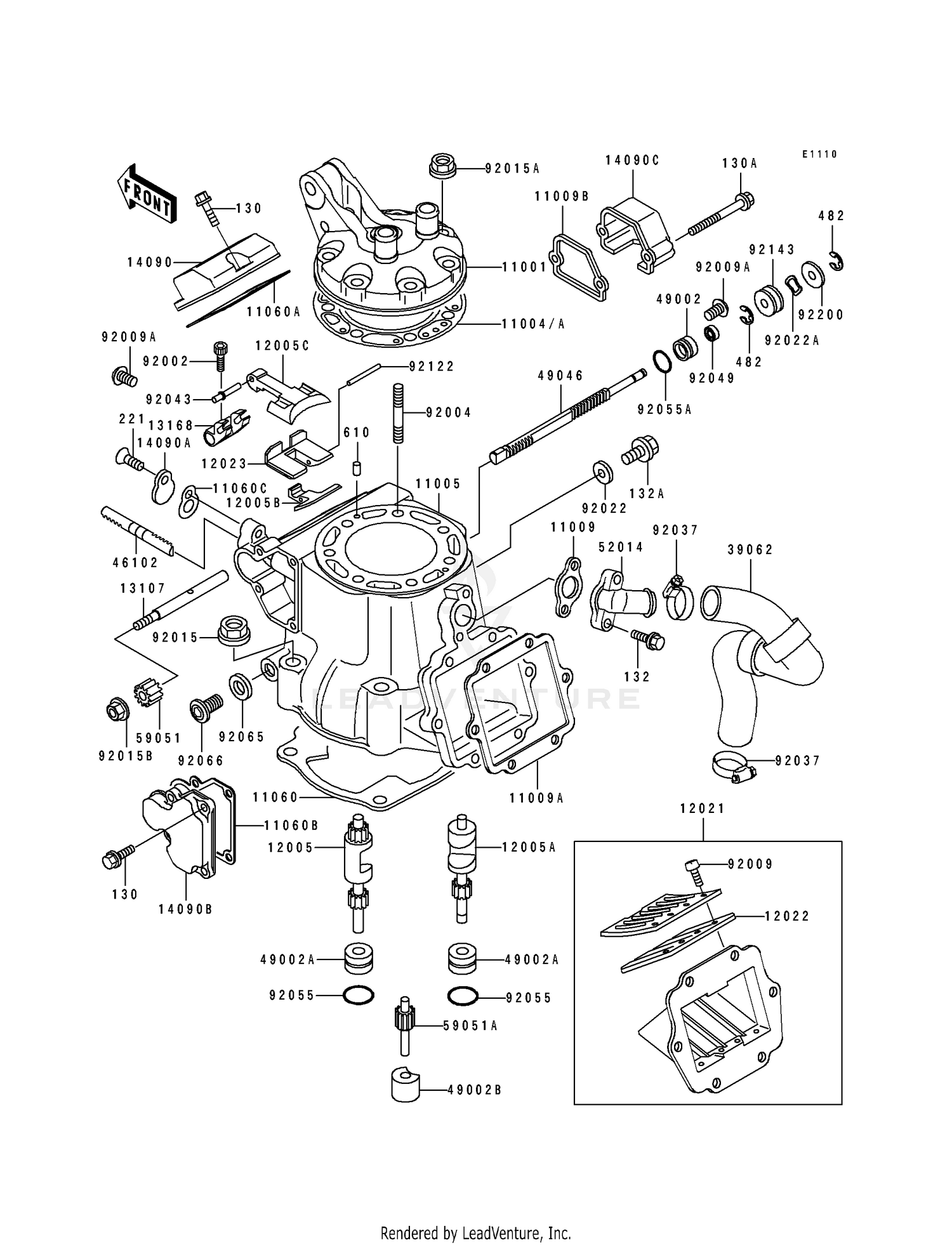

Cylinder Head/cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11001
HEAD-CYLINDER
11001-1384
|
$292.50 | ||
|
Available to order. Add to View Price |
|||
|
#11004
GASKET-HEAD,T=0.26
11004-1240
Superseded by 11004-0013
|
$37.32 | ||
|
Available to order. Add to View Price |
|||
|
#11004A
GASKET-HEAD,T=0.46
11004-1241
Superseded by 11004-0014
|
$37.32 | ||
|
Available to order. Add to View Price |
|||
|
#11005
CYLINDER-ENGINE
11005-1686
Superseded by 11005-1748
|
$885.77 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,ELBOW
11009-1935
|
$4.81 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,REED VALVE
11009-1950
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,GOVERNOR COVER
11009-1960
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,CYLINDER BASE
11060-1147
|
$10.91 | ||
|
Unavailable |
|||
|
#11060A
GASKET,VALVE COVER
11060-1289
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#11060B
GASKET,RESONATOR
11060-1290
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#11060C
GASKET,GOVERNOR ROD
11060-1346
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12005
VALVE-EXHAUST,LH
12005-1182
|
$62.35 | ||
|
Available to order. Add to View Price |
|||
|
#12005A
VALVE-EXHAUST,RH
12005-1183
|
$57.56 | ||
|
Available to order. Add to View Price |
|||
|
#12005B
VALVE-EXHAUST,MAIN
12005-1184
|
$57.56 | ||
|
Available to order. Add to View Price |
|||
|
#12005C
VALVE-EXHAUST,MAIN
12005-1185
|
$84.35 | ||
|
Available to order. Add to View Price |
|||
|
#12021
VALVE-ASSY-REED
12021-1092
|
$158.08 | ||
|
Available to order. Add to View Price |
|||
|
#12022
VALVE-REED
12022-1069
|
$65.53 | ||
|
Unavailable |
|||
|
#12023
HOLDER-VALVE,MAIN
12023-1066
|
$96.48 | ||
|
Available to order. Add to View Price |
|||
|
#13107
SHAFT,VALVE
13107-1284
Superseded by 13107-1405
|
$21.67 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,MAIN VALVE
13168-1499
|
$87.95 | ||
|
Available to order. Add to View Price |
|||
|
#14090
COVER,VALVE COVER
14090-1219
|
$29.31 | ||
|
Available to order. Add to View Price |
|||
|
#14090A
COVER,ROD
14090-1220
|
$9.06 | ||
|
Available to order. Add to View Price |
|||
|
#14090B
COVER,RESONATER
14090-1226
Superseded by 14091-0194
|
$36.84 | ||
|
Available to order. Add to View Price |
|||
|
#14090C
COVER,GOVERNOR
14090-1249
|
$11.51 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,PUMP-CYL
39062-1478
|
$37.45 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,MAIN VALVE
46102-1332
Superseded by 46102-1421
|
$55.90 | ||
|
Available to order. Add to View Price |
|||
|
#49002
GUIDE-VALVE
49002-1087
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
|
#49002A
GUIDE-VALVE
49002-1117
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#49002B
GUIDE-VALVE
49002-1118
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#49046
ROD-GOVERNOR
49046-1072
Superseded by 49046-1073
|
$88.07 | ||
|
Unavailable |
|||
|
#52014
ELBOW
52014-1077
|
$35.63 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR,MAIN VALVE
59051-1252
|
$33.68 | ||
|
Available to order. Add to View Price |
|||
|
#59051A
GEAR-SPUR,IDLE
59051-1275
|
$33.79 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SOCKET,4X8
92002-1403
Superseded by 92150-1888
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,8X28.5
92004-1060
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,3X6
92009-1371
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1502
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,10MM
92015-077
Superseded by 92015-1415
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,8MM
92015-1143
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,LEFT HANDED,6MM
92015-1572
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.2X14X1.0
92022-1488
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,WAVE
92022-1978
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,COOLING HOSE
92037-1589
|
$17.91 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,MAIN VALVE
92043-1470
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,RSO-5.5 11 4
92049-1206
|
$10.03 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,17.5X1.5
92055-022
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,11.5X1.5
92055-1387
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET-DRAIN PLUG
92065-073
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,12X10
92066-1222
|
$11.93 | ||
|
Available to order. Add to View Price |
|||
|
#92122
ROLLER,3X31.8
92122-1187
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1056
|
$10.20 | ||
|
Unavailable |
|||
|
#92200
WASHER,5.6X18X1.2
92200-1129
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X14
130G0514
Superseded by 130CA0514
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,5X35
130G0535
Superseded by 130BA0535
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL
132G0810
Superseded by 132BA0810
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,6X12
221B0612
Superseded by 221AA0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP SELD BEM FIT
482J4000
Superseded by 482K4000
|
$1.34 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
