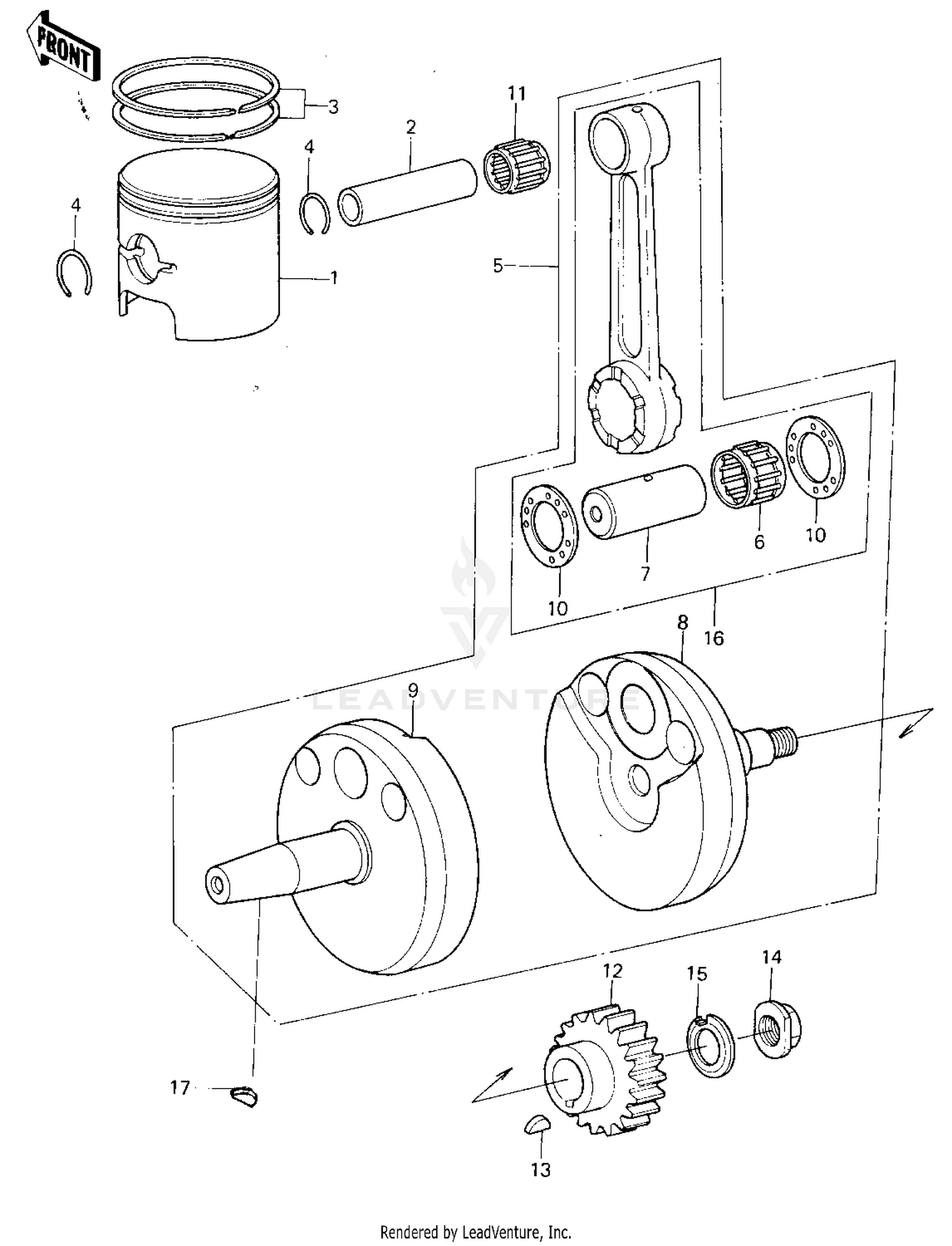

Crankshaft/piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PISTON,STD
13001-1034
Superseded by 13001-1039
|
$124.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN-PISTON
13002-017
|
$28.82 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING SET,STD
13008-5026
|
$78.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP-PISTON PIN
92036-015
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
CRANKSHAFT ASSY
13031-1038
|
$354.42 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING,BIG END NEEDL
13034-049
|
$36.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN,CRANK
13035-034
|
$81.84 | ||
|
Unavailable |
|||
|
#8
CRANKSHAFT,R.H
13037-1069
|
$221.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
CRANKSHAFT,L.H
13037-1068
|
$191.59 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER,24X42X1.6
92026-1241
Superseded by 92026-1500
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING-SMALL END
13033-1010
|
$24.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
GEAR,PRIMARY
13097-1028
|
$105.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
KEY-WOODRUFF
510A5100
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT,CRANKSHAFT
92015-069
|
$34.31 | ||
|
Unavailable |
|||
|
#15
WASHER,LOCK
92024-061
|
$5.84 | ||
|
Unavailable |
|||
|
#16
CONNECTING ROD SET
13044-5007
|
$182.67 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY,WOODRUFF
92038-001
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
