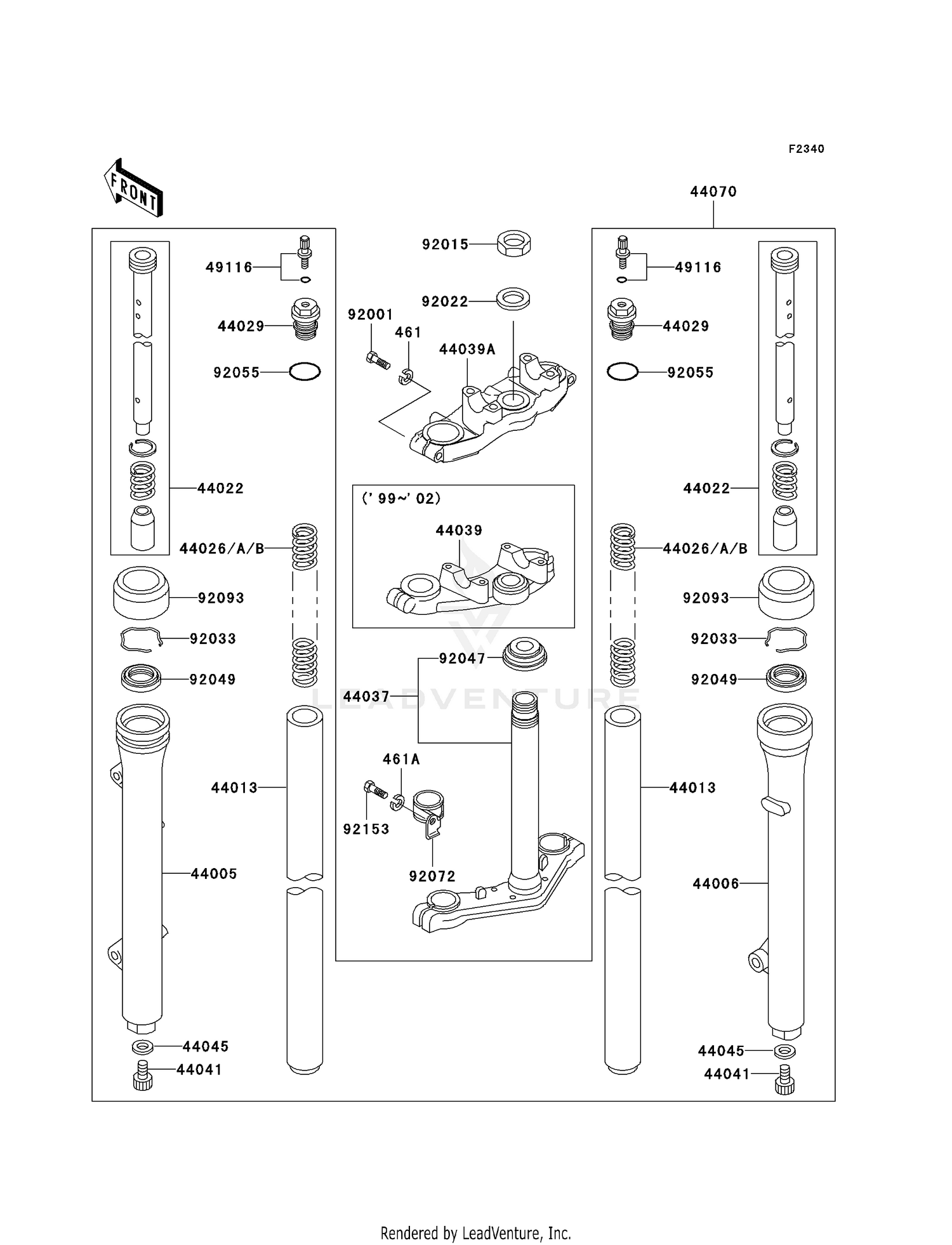

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#461
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#461A
WASHER-SPRING,10MM
461F1000
Superseded by 461DA1000
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER
44005-1101
|
$210.65 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER
44006-1101
|
$204.75 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1098
|
$231.98 | ||
|
Available to order. Add to View Price |
|||
|
#44022
CYLINDER-FORK
44022-1085
|
$82.90 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-1156
|
$40.14 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,LIG
44026-1174
|
$43.96 | ||
|
Available to order. Add to View Price |
|||
|
#44026B
SPRING-FRONT FORK,HEA
44026-1175
|
$43.96 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-1101
|
$22.52 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-1227
|
$264.29 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-1167
Superseded by 44039-1326
|
$225.31 | ||
|
Available to order. Add to View Price |
|||
|
#44041
BOLT,FORK CYLINDER
44041-078
|
$9.54 | ||
|
Available to order. Add to View Price |
|||
|
#44045
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#44070
DAMPER-ASSY
44070-5007
|
$425.91 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-1054
|
$32.07 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,SMALL UPSET
92001-1643
Superseded by 115BA0835
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,STEERING STEM,22MM
92015-1653
Superseded by 92210-1521
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,STEERING STEM
92022-1873
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#92033
CIRCLIP
92033-1062
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#92047
RACE,STEERING STEM BEARING
92047-013
Superseded by 92048-0034
|
$11.89 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER TUBE
92049-1069
|
$18.94 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-0,FORK SPRING SE
92055-1142
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,CABLE
92072-1089
|
$37.65 | ||
|
Available to order. Add to View Price |
|||
|
#92093
DUST SHIELD,FORK
92093-1054
|
$16.82 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,10X35
92153-1199
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
