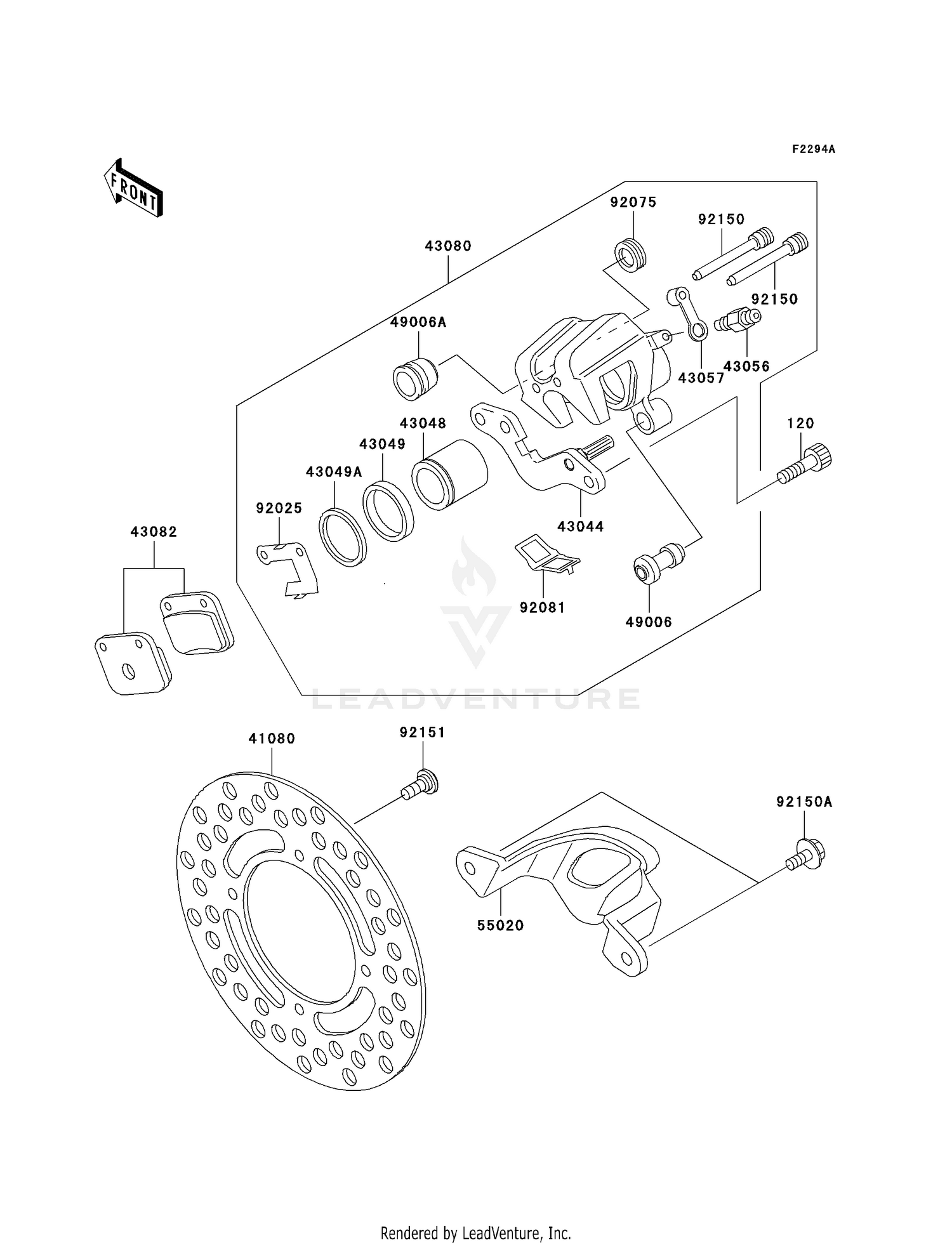

Rear Brake (kx65-a5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,8X16
120P0816
Superseded by 120CA0816
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC
41080-1470
|
$177.94 | ||
|
Available to order. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER,RR
43044-1076
|
$47.80 | ||
|
Available to order. Add to View Price |
|||
|
#43048
PISTON-CALIPER
43048-1090
|
$64.29 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,PISTON SEAL
43049-1060
|
$18.76 | ||
|
Available to order. Add to View Price |
|||
|
#43049A
PACKING,PISTON SEAL
43049-1061
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BREATHER-BRAKE
43056-1055
Superseded by 43056-1056
|
$13.79 | ||
|
Available to order. Add to View Price |
|||
|
#43057
CAP-BREATHER
43057-1001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#43080
CALIPER-SUB-ASSY,RR
43080-5132
Superseded by 43080-0036
|
$167.61 | ||
|
Available to order. Add to View Price |
|||
|
#43082
PAD-ASSY-BRAKE
43082-1241
Superseded by 43082-0043
|
$57.69 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,CALIPER
49006-1088
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT,CALIPER
49006-1089
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,REAR CALIPER,WH
55020-1707-RZ
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#92025
SHIM,PAD
92025-1817
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1414
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PAD
92081-1502
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT
92150-1144
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,6X14
92150-1340
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,DISC PLATE,6MM
92151-1799
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
