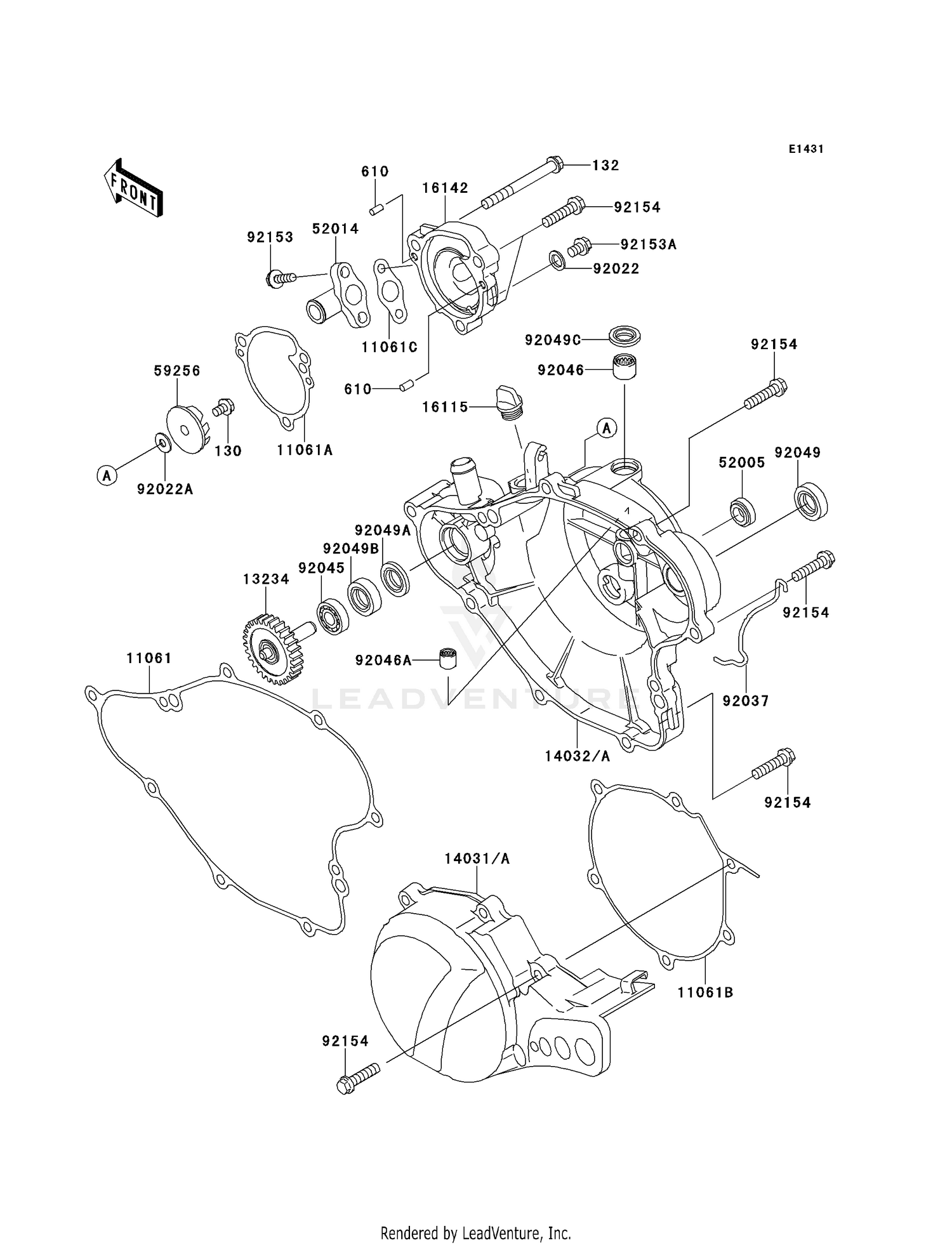

Engine Cover(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,5X10
130CA0510
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X60
132BC0660
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#11061
GASKET,CLUTCH COVER
11061-0121
|
$16.10 | ||
|
Available to order. Add to View Price |
|||
|
#11061A
GASKET,WATER PUMP COVER
11061-0159
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#11061B
GASKET,GENERATOR COVER
11061-0193
|
$18.38 | ||
|
Available to order. Add to View Price |
|||
|
#11061C
GASKET,ELBOW
11061-0202
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#13234
SHAFT-COMP,PUMP
13234-1110
|
$66.12 | ||
|
Available to order. Add to View Price |
|||
|
#14031
COVER-GENERATOR
14031-0107
|
$48.15 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH
14032-0133
|
$220.23 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-018
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP
16142-0023
|
$77.29 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-0019
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#52014
ELBOW
52014-1094
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-1064
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1236
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,608MC3
92045-1305
Superseded by 92045-1497
|
$11.93 | ||
|
Unavailable |
|||
|
#92046
BEARING-NEEDLE,HK1010FM
92046-0046
|
$14.89 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,6BTM109
92046-1217
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SB16244
92049-002
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MH8X18X3.5-A
92049-1359
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,MHSD8X18X10J-1
92049-1366
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,BG1408F0
92049-1414
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,5X16
92153-0859
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,6X8
92153-0860
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X25
92154-0520
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
