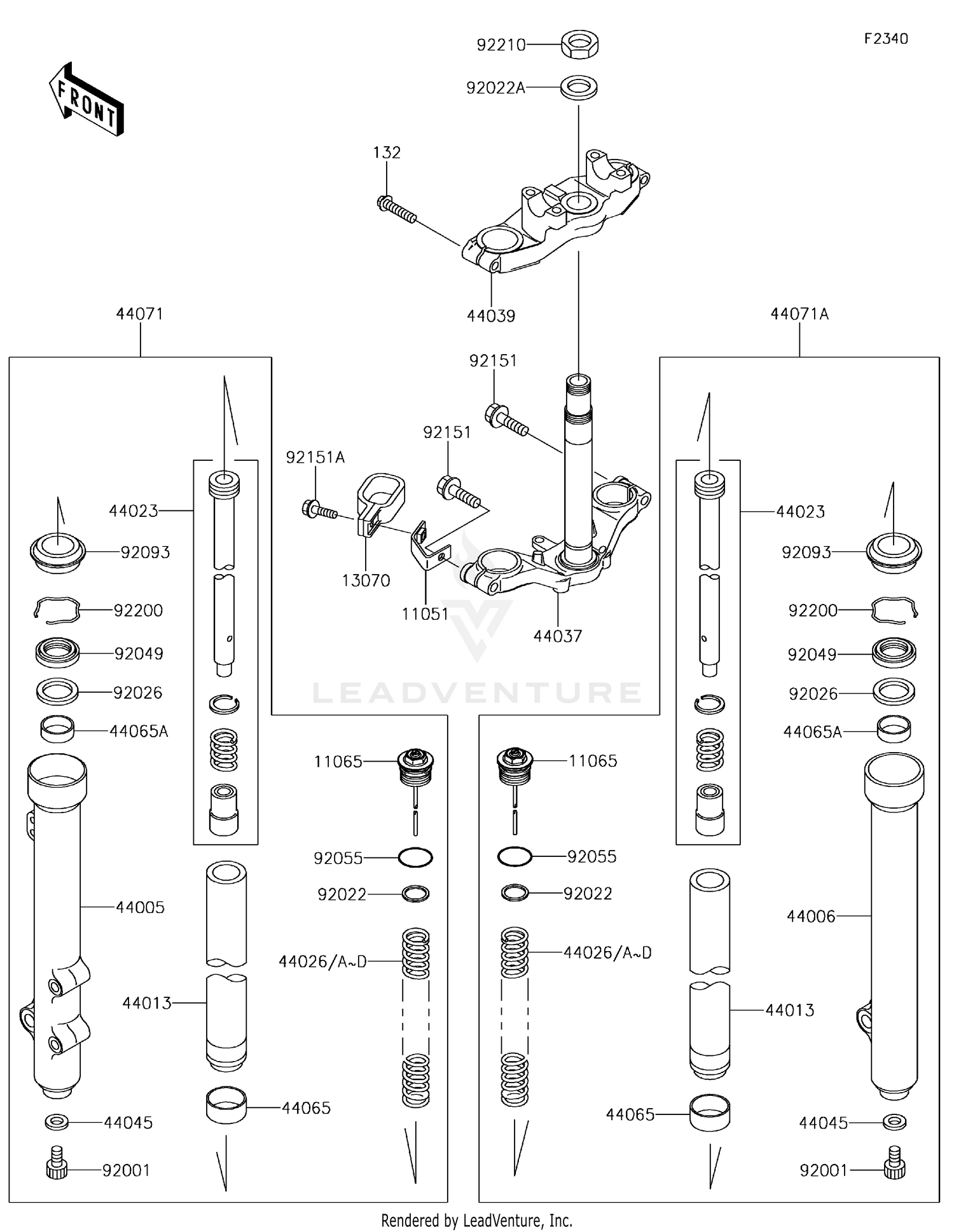

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11051
BRACKET,BRAKE HOSE GUIDE
11051-1892
|
$15.42 | ||
|
Available to order. Add to View Price |
|||
|
#11065
CAP,FORK TOP,BLUE
11065-0746
Superseded by 11065-0746-KW
|
$68.83 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,BRAKE HOSE
13070-1349
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,8X35
132BA0835
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#44005
PIPE-LEFT FORK OUTER,P.SILVER
44005-0042-458
|
$210.76 | ||
|
Available to order. Add to View Price |
|||
|
#44006
PIPE-RIGHT FORK OUTER,P.SILVER
44006-0042-458
|
$210.76 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-1496
|
$196.08 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-1161
|
$63.78 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK,K=2.55N/MM
44026-1735
|
$44.28 | ||
|
Available to order. Add to View Price |
|||
|
#44026A
SPRING-FRONT FORK,K=2.65N/MM
44026-1736
|
$44.28 | ||
|
Available to order. Add to View Price |
|||
|
#44026B
SPRING-FRONT FORK,K=2.75N/MM
44026-1737
|
$44.28 | ||
|
Available to order. Add to View Price |
|||
|
#44026C
SPRING-FRONT FORK,K=2.84N/MM
44026-1738
|
$44.28 | ||
|
Available to order. Add to View Price |
|||
|
#44026D
SPRING-FRONT FORK,K=2.45N/MM
44026-1739
|
$44.28 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER,F.BLACK
44037-0023-21
|
$247.78 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER,F.BLACK
44039-0022-21
|
$192.33 | ||
|
Available to order. Add to View Price |
|||
|
#44045
GASKET,FORK CYLINDER BOLT
44045-051
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,INNER PIPE
44065-1123
|
$16.70 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK
44065-1133
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#44071
DAMPER-ASSY,FORK,LH
44071-0803
|
$370.55 | ||
|
Available to order. Add to View Price |
|||
|
#44071A
DAMPER-ASSY,FORK,RH
44071-0804
|
$370.55 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,FORK CYLINDER
92001-1464
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK SPRING
92022-1841
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,STEERING STEM
92022-1873
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1365
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,FORK OUTER TUBE
92049-1524
|
$17.13 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-0,FORK SPRING SE
92055-1367
Superseded by 92055-1142
|
$5.56 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1519
|
$16.70 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,10X35
92151-1636
|
$10.12 | ||
|
Available to order. Add to View Price |
|||
|
#92151A
BOLT,FLANGED,5X16
92151-1637
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1496
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,STEERING STEM,22MM
92210-1521
|
$16.09 | ||
|
Available to order. Add to View Price |
|||
