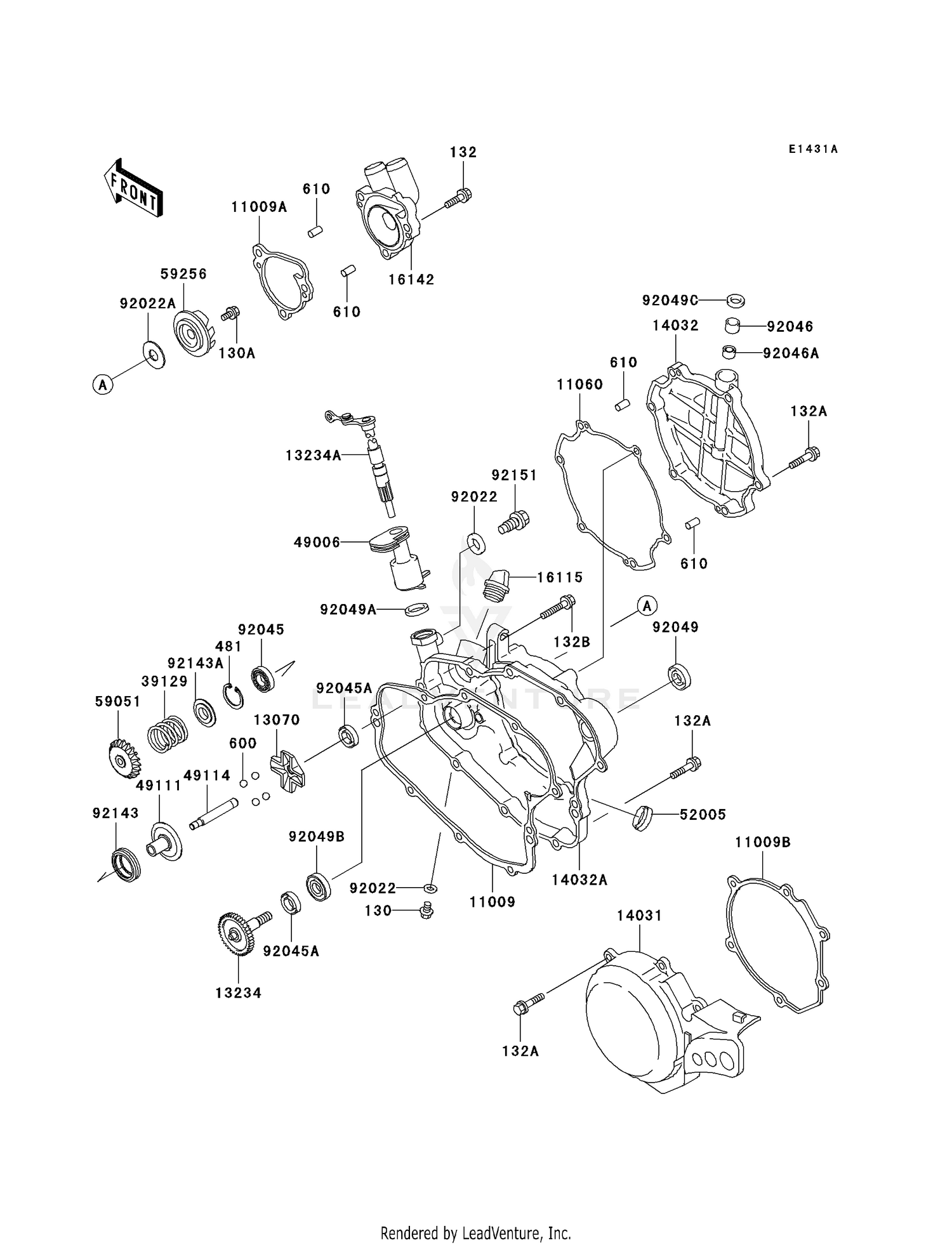

Engine Cover(s)(a3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#130
BOLT-FLANGED,6X8
130B0608
Superseded by 130AA0608
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,CLUTCH COVER
11009-1971
Superseded by 11061-0122
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,PUMP COVER
11009-1972
|
$7.25 | ||
|
Available to order. Add to View Price |
|||
|
#11009B
GASKET,GENERATOR COVE
11009-1973
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#11060
GASKET,CLUTCH COVER
11060-1795
|
$16.77 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,GOVERNOR
13070-1309
|
$51.29 | ||
|
Available to order. Add to View Price |
|||
|
#13234
SHAFT-COMP,WATER PUMP
13234-1103
|
$68.74 | ||
|
Available to order. Add to View Price |
|||
|
#13234A
LEVER-ASSY
13234-1104
Superseded by 13320-0581
|
$66.38 | ||
|
Unavailable |
|||
|
#14031
COVER-GENERATOR
14031-1241
|
$60.79 | ||
|
Available to order. Add to View Price |
|||
|
#14032
COVER-CLUTCH,OUTSIDE
14032-1463
|
$80.35 | ||
|
Available to order. Add to View Price |
|||
|
#14032A
COVER-CLUTCH,INSIDE
14032-1514
Superseded by 14032-0041
|
$204.13 | ||
|
Available to order. Add to View Price |
|||
|
#16115
CAP-OIL FILLER
16115-018
|
$10.19 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP,WATER
16142-1144
|
$74.98 | ||
|
Available to order. Add to View Price |
|||
|
#39129
SPRING-GOVERNOR
39129-1022
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,GOVERNOR
49006-1313
|
$9.07 | ||
|
Available to order. Add to View Price |
|||
|
#49111
HOLDER-GOVERNOR WEIGHT
49111-1064
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#49114
SHAFT-GOVERNOR
49114-1106
|
$18.63 | ||
|
Available to order. Add to View Price |
|||
|
#52005
GAUGE,OIL LEVEL
52005-1055
Superseded by 52005-0019
|
$14.23 | ||
|
Available to order. Add to View Price |
|||
|
#59051
GEAR-SPUR
59051-1412
|
$28.79 | ||
|
Available to order. Add to View Price |
|||
|
#59256
IMPELLER
59256-1064
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X12X1
92022-077
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL
92045-0010
|
$32.82 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,608MC3
92045-1305
Superseded by 92045-1497
|
$11.93 | ||
|
Unavailable |
|||
|
#92046
BEARING-NEEDLE
92046-1160
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,6BTM109
92046-1217
|
$16.56 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SB16244
92049-002
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,AG0353-F0
92049-1262
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,MHSD8X18X10J-1
92049-1366
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#92049C
SEAL-OIL,BG1408F0
92049-1414
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1932
Superseded by 92152-2327
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1933
|
$8.95 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,6X11
92151-1180
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,5X10
130P0510
Superseded by 130CA0510
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT,6X25
132G0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,6X30
132G0630
Superseded by 132BA0630
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,24MM
481J2400
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#600
BALL-STEEL,5/16
600A1000
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#610
ROLLER,4X8
610A0408
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
