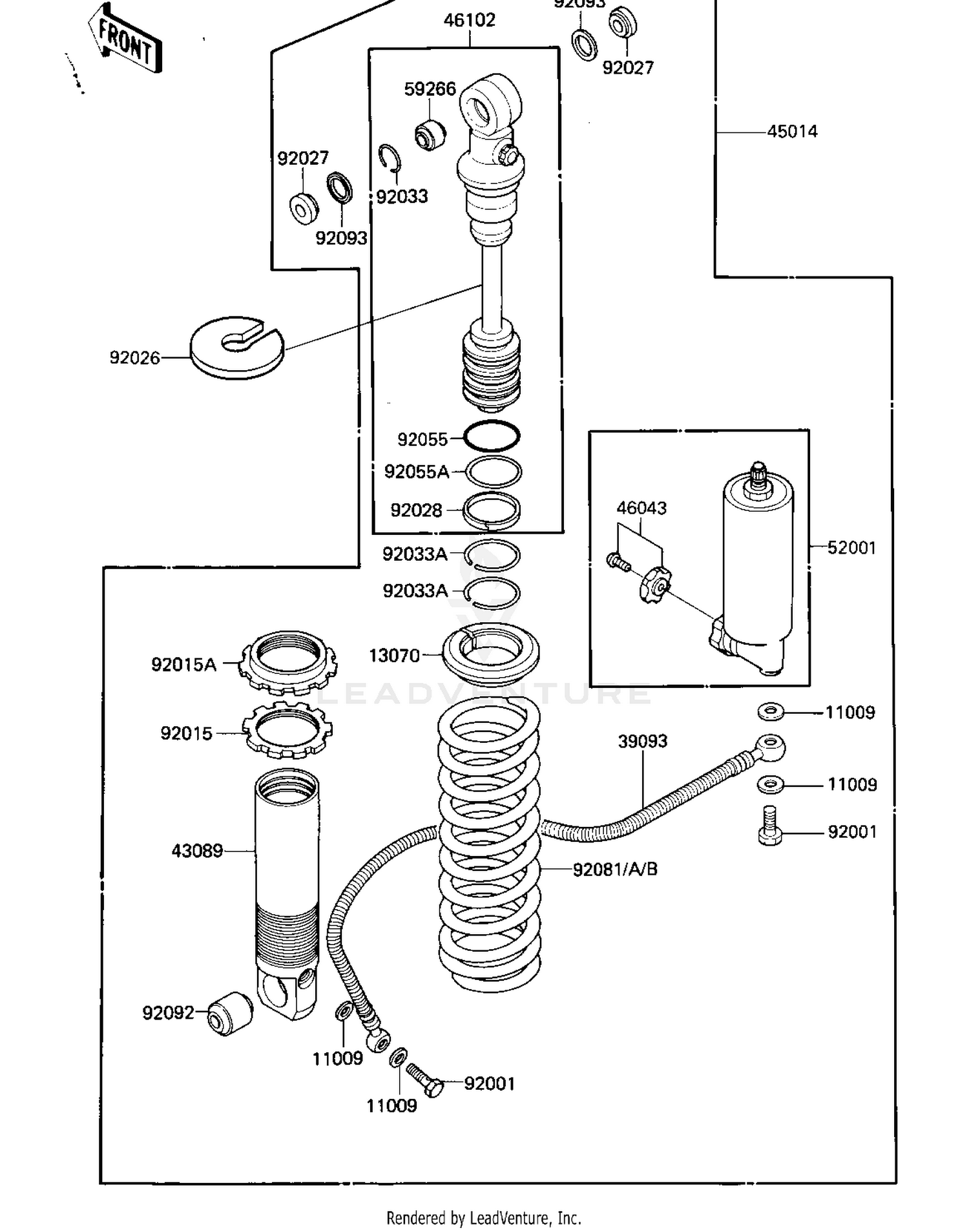

Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE,SPRING
13070-1075
|
$66.41 | ||
|
Available to order. Add to View Price |
|||
|
#39093
PIPE-COMP-SUSP
39093-1105
|
$134.31 | ||
|
Available to order. Add to View Price |
|||
|
#43089
CYLINDER-SHOCKABSORBE
43089-1105
|
$321.37 | ||
|
Available to order. Add to View Price |
|||
|
#45014
SHOCKABSORBER
45014-1301
|
$1,011.61 | ||
|
Available to order. Add to View Price |
|||
|
#46043
KNOB-ASSY,OIL TANK
46043-1053
|
$12.41 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,SHOCKABSORBER
46102-1135
|
$602.72 | ||
|
Available to order. Add to View Price |
|||
|
#52001
TANK-OIL,SHOCKABSORBE
52001-1058
|
$283.85 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT-BALL,REAR SHOCK
59266-1053
|
$111.87 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,PIPE-COMP-SUSP
92001-1752
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,SPRING ADJUST LOC
92015-1238
|
$18.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,SPRING ADJUST
92015-1239
|
$49.20 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER
92026-1253
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,SHOCKABSORBER
92027-1871
|
$15.93 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,ROD
92028-1288
|
$22.22 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,REARSHOCK
92033-1090
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,SHOCKABSORB
92033-1194
|
$3.68 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,ROD
92055-1181
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,ROD
92055-1234
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,SHOCKABSORBER,
92081-1798
Superseded by 92081-1879
|
$274.73 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,SHOCKABSORBER,
92081-1878
|
$291.54 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,SHOCKABSORBER,
92081-1880
|
$259.44 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER,SHOCKA
92092-1054
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,REAR SHOCK
92093-1183
|
$15.91 | ||
|
Available to order. Add to View Price |
|||
