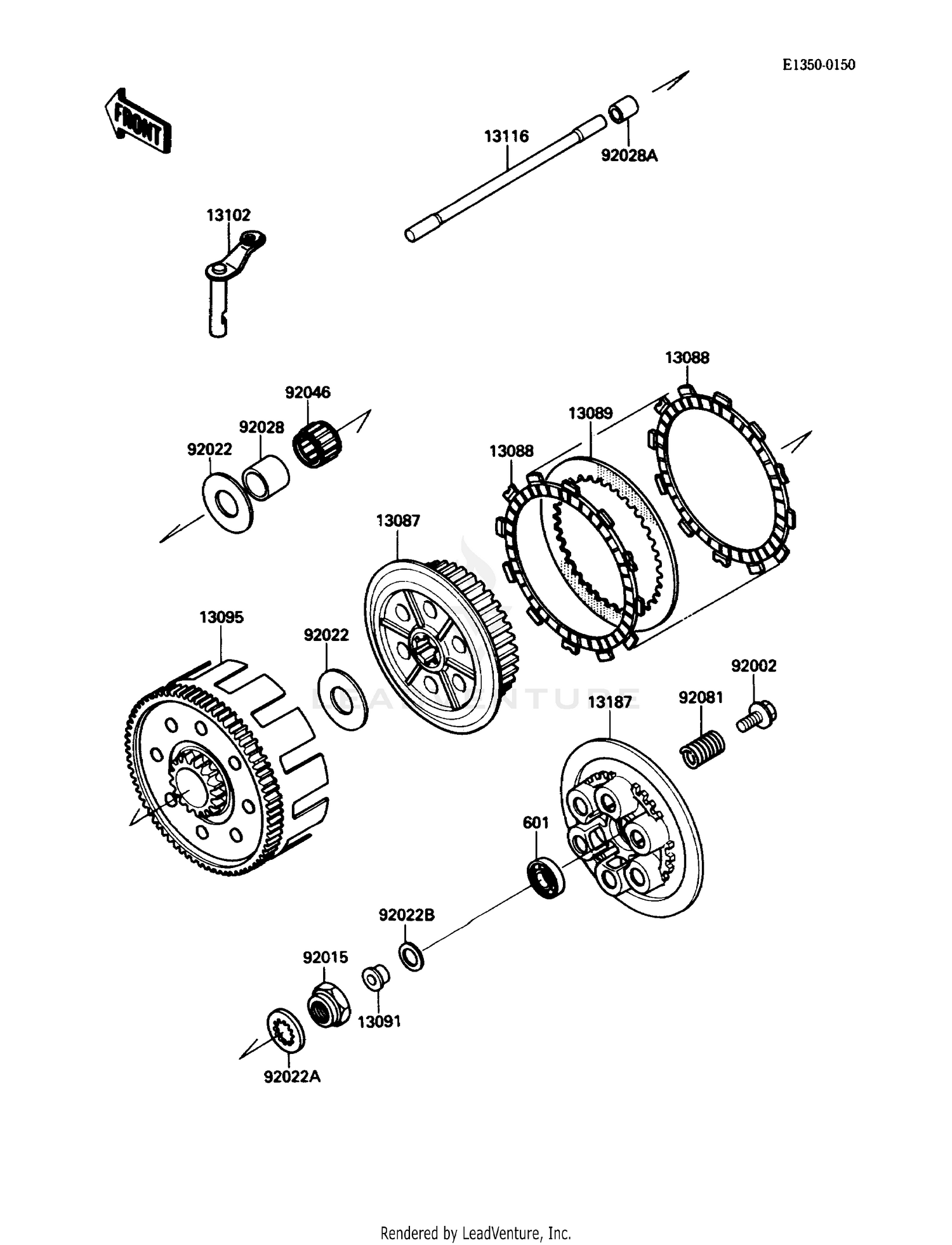

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13087
HUB-CLUTCH
13087-1098
Superseded by 13087-1138
|
$132.69 | ||
|
Available to order. Add to View Price |
|||
|
#13088
PLATE-FRICTION
13088-1069
Superseded by 13088-1114
|
$16.79 | ||
|
Available to order. Add to View Price |
|||
|
#13089
PLATE-CLUTCH
13089-1079
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,ROD
13091-1582
|
$62.62 | ||
|
Available to order. Add to View Price |
|||
|
#13095
HOUSING-COMP-CLUTCH
13095-1171
|
$395.94 | ||
|
Available to order. Add to View Price |
|||
|
#13102
RELEASE-COMP-CLUTCH
13102-1094
Superseded by 13102-1101
|
$53.98 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD-PUSH,L=202
13116-1125
|
$27.39 | ||
|
Available to order. Add to View Price |
|||
|
#13187
PLATE-CLUTCH OPERATIN
13187-1060
|
$81.35 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,CLUTCH
92002-1949
Superseded by 92150-1489
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,20MM
92015-1725
|
$18.22 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,22.3X38X2.0
92022-1836
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-1942
|
$8.46 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,PLAIN
92022-269
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING,22X28X27.5
92028-1385
|
$30.96 | ||
|
Available to order. Add to View Price |
|||
|
#92028A
BUSHING
92028-1484
Superseded by 92028-1587
|
$28.79 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,28R322
92046-1149
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,CLUTCH
92081-1151
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,6001C3ML01
601B6001
Superseded by 92045-1235
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
