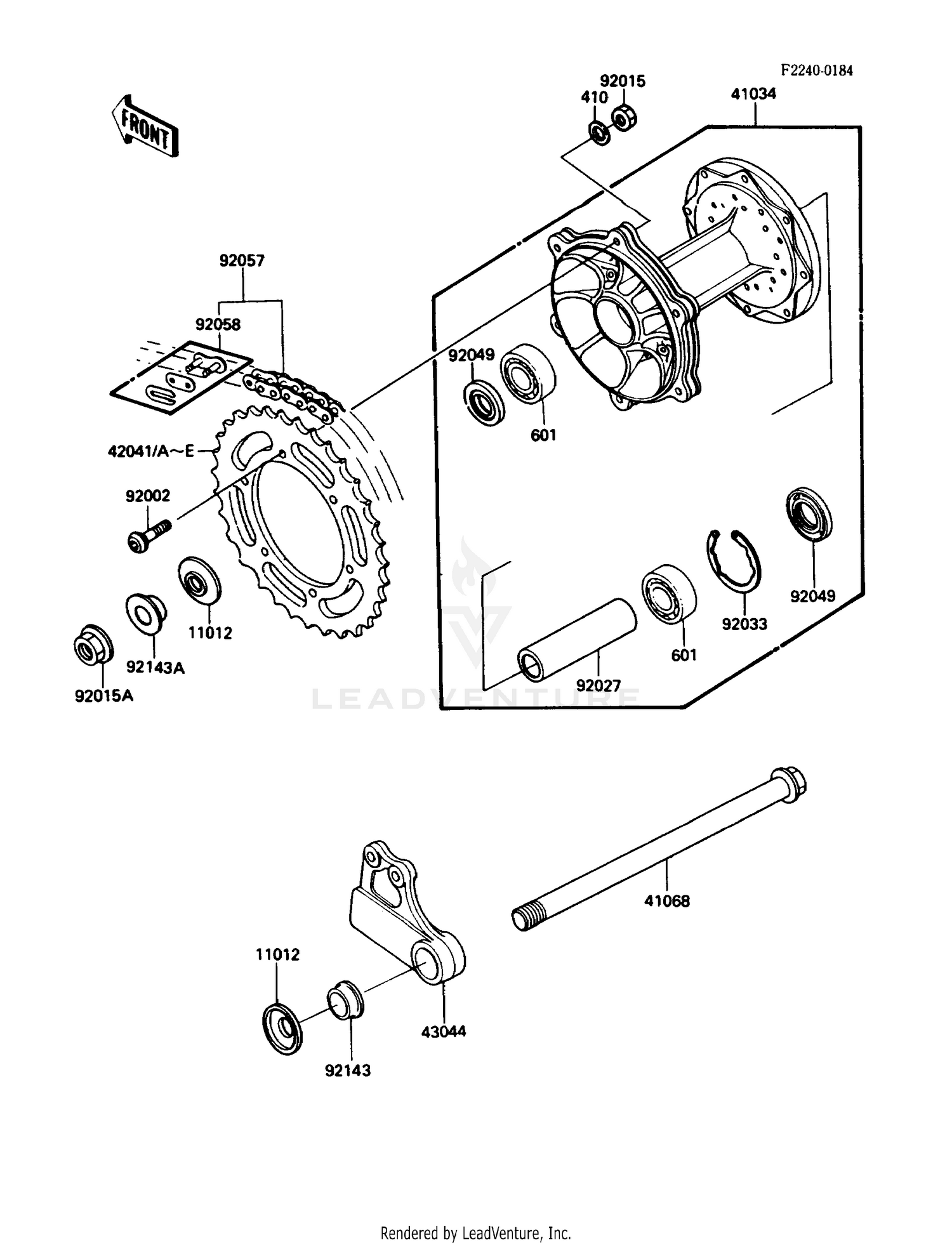

Rear Hub Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,AXLE
11012-1581
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#41034
DRUM-ASSY,REAR BRAKE
41034-1171
|
$615.30 | ||
|
Available to order. Add to View Price |
|||
|
#41068
AXLE,RR
41068-1249
|
$122.39 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,45T
42041-1154
|
$136.49 | ||
|
Available to order. Add to View Price |
|||
|
#42041A
SPROCKET-HUB,49T,AL
42041-1256
|
$106.08 | ||
|
Available to order. Add to View Price |
|||
|
#42041B
SPROCKET-HUB,48T,AL
42041-1257
|
$132.62 | ||
|
Available to order. Add to View Price |
|||
|
#42041C
SPROCKET-HUB,47T,AL
42041-1258
|
$132.62 | ||
|
Available to order. Add to View Price |
|||
|
#42041D
SPROCKET-HUB,46T,AL
42041-1259
|
$130.17 | ||
|
Available to order. Add to View Price |
|||
|
#42041E
SPROCKET-HUB,47T
42041-1274
Superseded by 42041-1382
|
$71.15 | ||
|
Available to order. Add to View Price |
|||
|
#43044
HOLDER-COMP-CALIPER
43044-1068
|
$157.94 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,8MM
92002-1387
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,LOCK,8MM
92015-1124
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,20MM
92015-1461
|
$23.29 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,20.2X25.4X120
92027-1942
|
$55.76 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,42MM
92033-1041
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,BJNC2 25425
92049-1203
|
$17.27 | ||
|
Available to order. Add to View Price |
|||
|
#92057
DR.CHAIN,DID520DS5114
92057-1202
|
$159.06 | ||
|
Available to order. Add to View Price |
|||
|
#92058
JOINT,DRIVE CHAIN
92058-1013
|
$11.77 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1089
|
$17.76 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1090
|
$28.70 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6004UG
601B6004U
Superseded by 601B6004UG
|
$14.68 | ||
|
Unavailable |
|||
