1987 Kawasaki KX500C1 Front Brake OEM Parts

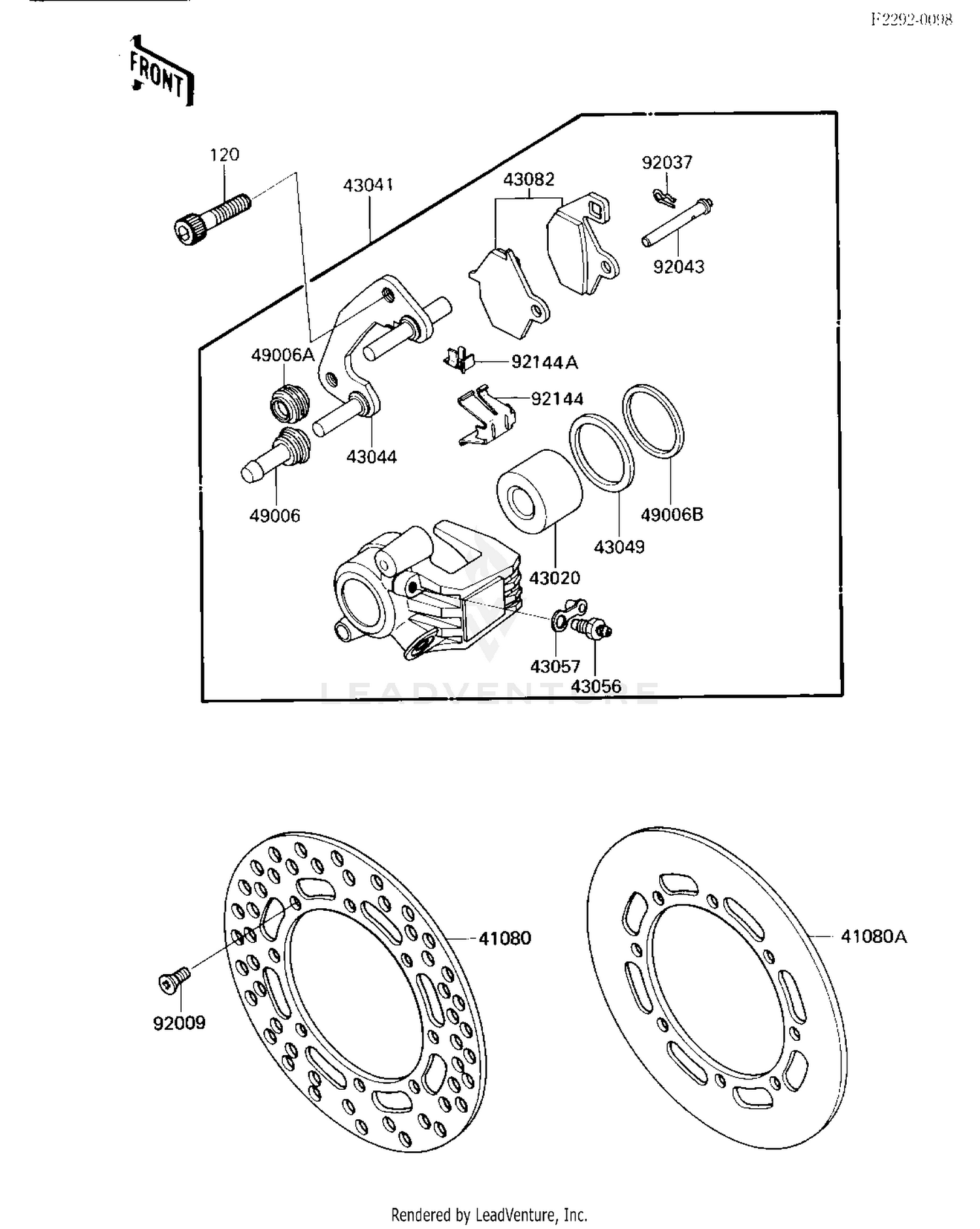

Front Brake Diagram

Item	MSRP	Qty
#41080 DISC,FR 41080-1147 Superseded by 41080-1239	$296.74
Available to order. Add to View Price
#41080A DISC,FR 41080-1188	$321.28
Available to order. Add to View Price
#43020 PISTON-COMP-BRAKE 43020-1097	$70.02
Available to order. Add to View Price
#43041 CALIPER-ASSY,FR 43041-1227	$475.41
Available to order. Add to View Price
#43044 HOLDER-COMP-CALIPER,F 43044-1069	$152.76
Available to order. Add to View Price
#43049 PACKING,PISTON SEAL 43049-001 Superseded by 43049-1097	$10.67
Available to order. Add to View Price
#43056 BLEEDER SET 43056-003 Superseded by 43085-001	$23.70
Available to order. Add to View Price
#43057 CAP-BREATHER 43057-003	$2.38
Available to order. Add to View Price
#43082 PAD-ASSY-BRAKE 43082-1072	$53.04
Available to order. Add to View Price
#49006 BOOT,CALIPER 49006-1054	$11.20
Available to order. Add to View Price
#49006A BOOT,CALIPER 49006-1055	$7.02
Available to order. Add to View Price
#49006B BOOT,PISTON SEAL 49006-1212	$22.42
Available to order. Add to View Price
#92009 SCREW,6X10 92009-1375	$3.80
Available to order. Add to View Price
#92037 CLAMP,PAD 43084-003	$4.17
Available to order. Add to View Price
#92043 PIN,PAD 92043-1356	$10.28
Available to order. Add to View Price
#92144 SPRING,PAD 92144-1117	$40.50
Available to order. Add to View Price
#92144A SPRING,PAD STOPPER 92144-1118	$40.96
Available to order. Add to View Price
#120 BOLT-SOCKET,8X20 120P0820 Superseded by 120CA0820	$4.31
Available to order. Add to View Price
