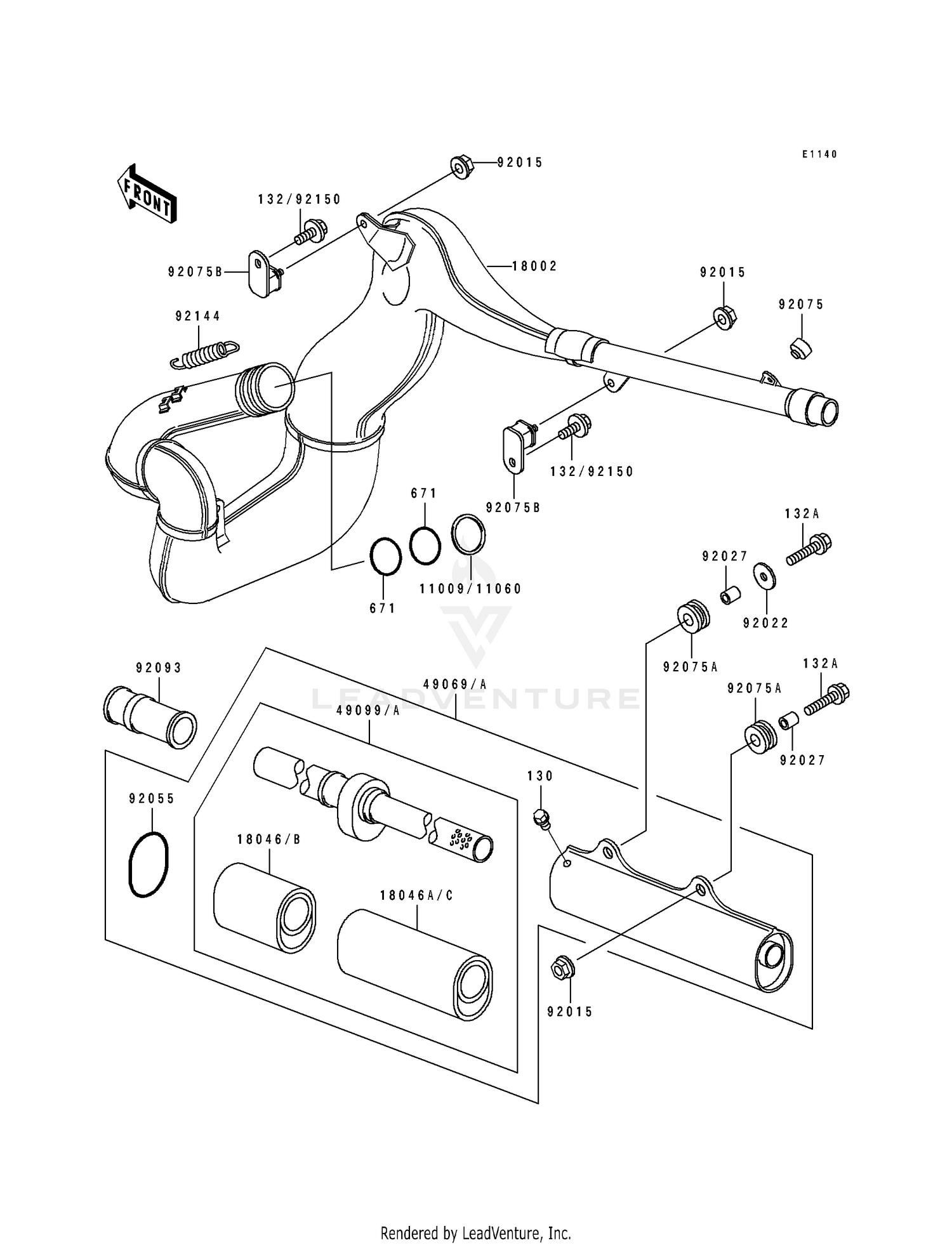

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,EXHAUST PIPE
11009-1253
Superseded by 11009-1949
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#18002
BODY-COMP-MUFFLER
18002-1862
|
$544.75 | ||
|
Available to order. Add to View Price |
|||
|
#18046
WOOL,L=158
18046-1106
|
$52.84 | ||
|
Available to order. Add to View Price |
|||
|
#18046A
WOOL,L=200
18046-1107
|
$52.84 | ||
|
Available to order. Add to View Price |
|||
|
#49069
MUFFLER-ASSY
49069-1109
|
$177.47 | ||
|
Available to order. Add to View Price |
|||
|
#49099
BAFFLE-PIPE MUFFLER
49099-1274
Superseded by 49099-1285
|
$167.53 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1078
Superseded by 92210-0630
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X22X1.6
92022-237
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X11.5
92027-1210
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,BAFFLE PIPE
92055-1445
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1598
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,MUFFLER FITTIN
92075-1857
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER,MUFFLER
92075-1891
|
$31.16 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-1279
|
$45.54 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1035
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,5X8
130G0508
Superseded by 130BA0508
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132G0612
Superseded by 132BA0612
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X30
132G0630
Superseded by 132BA0630
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,50MM
671E2550
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
